Turn Signal/Multifunction Switch X3

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

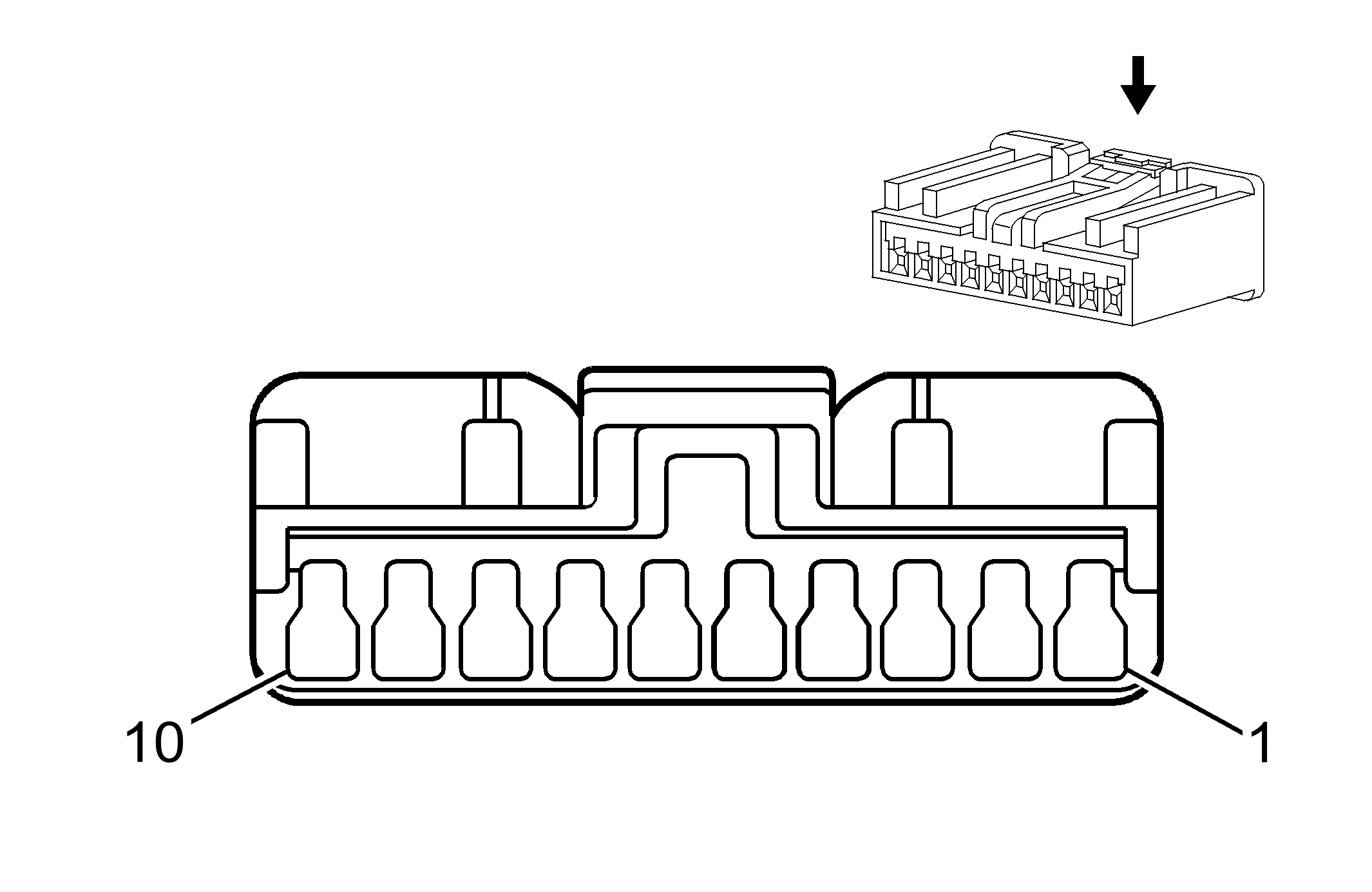

Fig 1: Turn Signal/Multifunction Switch X3 Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	0.35 L-BU	1714	Windshield Wiper Switch Low Signal
2	0.35 BK/WH	1251	Ground
3	0.35 L-GN	1715	Windshield Wiper Switch High Signal
4	0.35 PK	94	Windshield Washer Switch Signal (XA7)
5-10	-	-	Not Used

Connector Part Information

OEM: AIT2PB-10-1DM
Service: See Catalog
Description: 10-Way F (GN)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit
