Window Motor - Driver

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

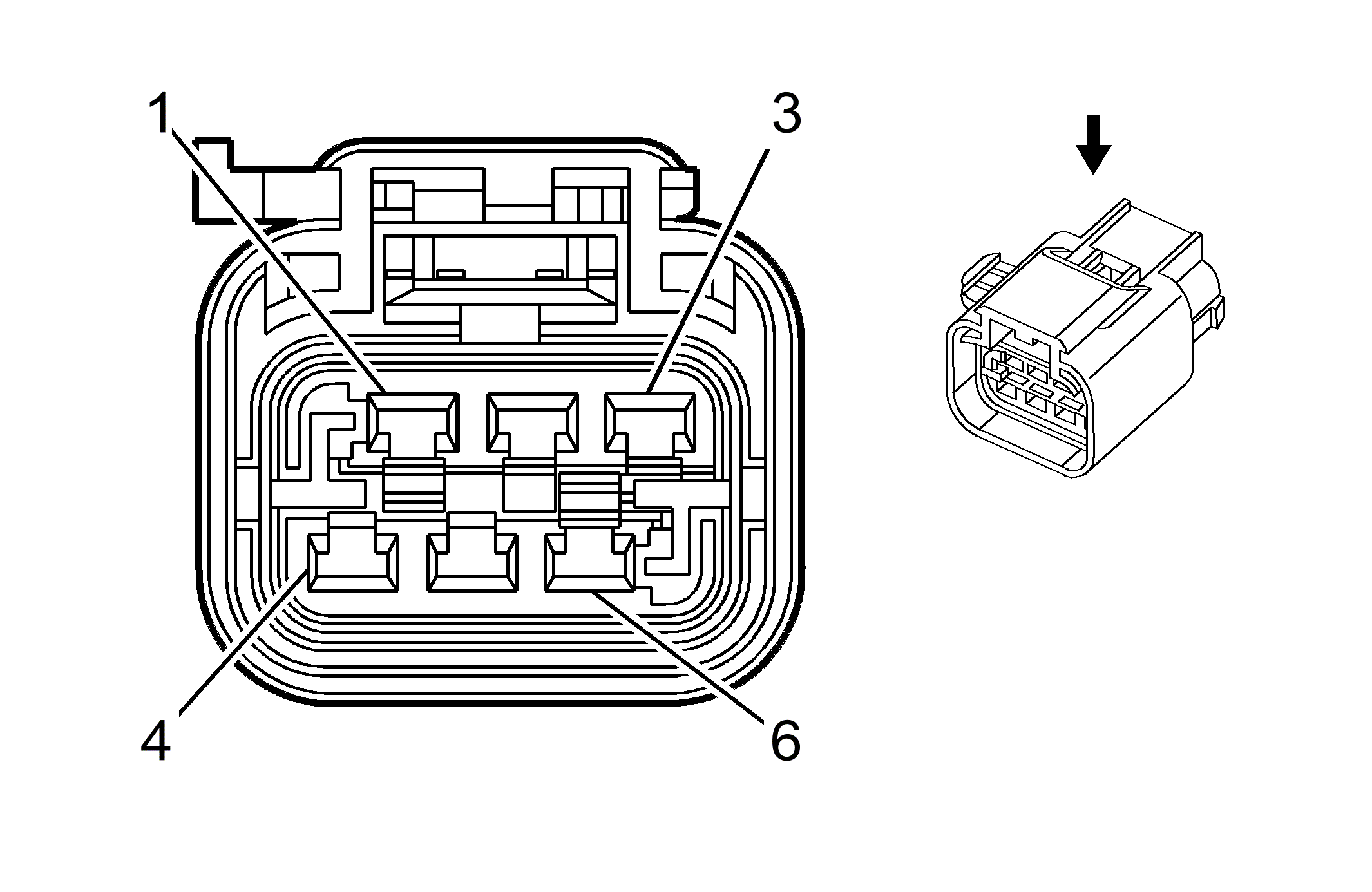

Fig 1: Window Motor - Driver Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1-2	-	-	Not Used
3	2 OG	4340	Battery Positive Voltage
4	2 BK	350	Ground
5	0.5 BN	6132	Local Interconnect Network 1
6	-	-	Not Used

Connector Part Information

OEM: 902970-00
Service: See Catalog
Description: 6-Way F (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit
