Windshield Heated Washer Fluid Module X2 (XA7)

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

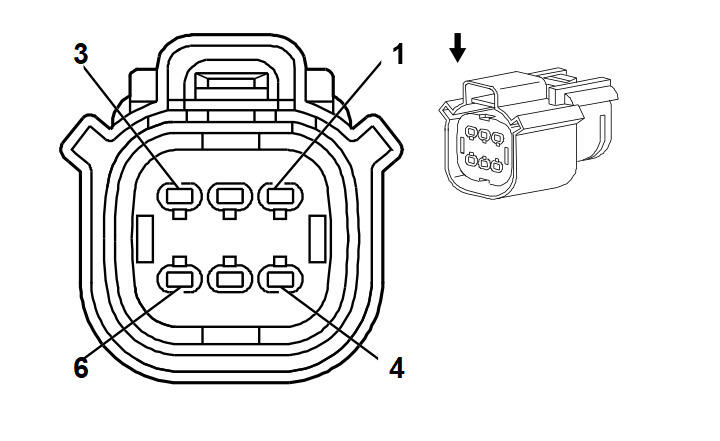

Fig 1: Windshield Heated Washer Fluid Module X2 (XA7) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	0.35 L-GN	6096	Washer Fluid Heated Control Switch Signal
2	0.35 D-BU/WH	5970	Washer Fluid Heated Control Switch LED Supply Voltage
3	-	-	Not Used
4	0.35 BK/WH	351	Ground
5	0.35 PK	94	Windshield Washer Switch Signal
6	0.35 D-GN	300	Ignition 3 Voltage

Connector Part Information

OEM: 33472-0611
Service: 19115669
Description: 6-Way F Sealed (BK)

Terminal Part Information

Pins: 1, 4-6
Terminal/Tray: 33012-1003/23
Core/Insulation Crimp: 2/E/2
Release Tool/Test Probe: J-38125-217/J-35616-14 (GN)
