Door Component Views

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

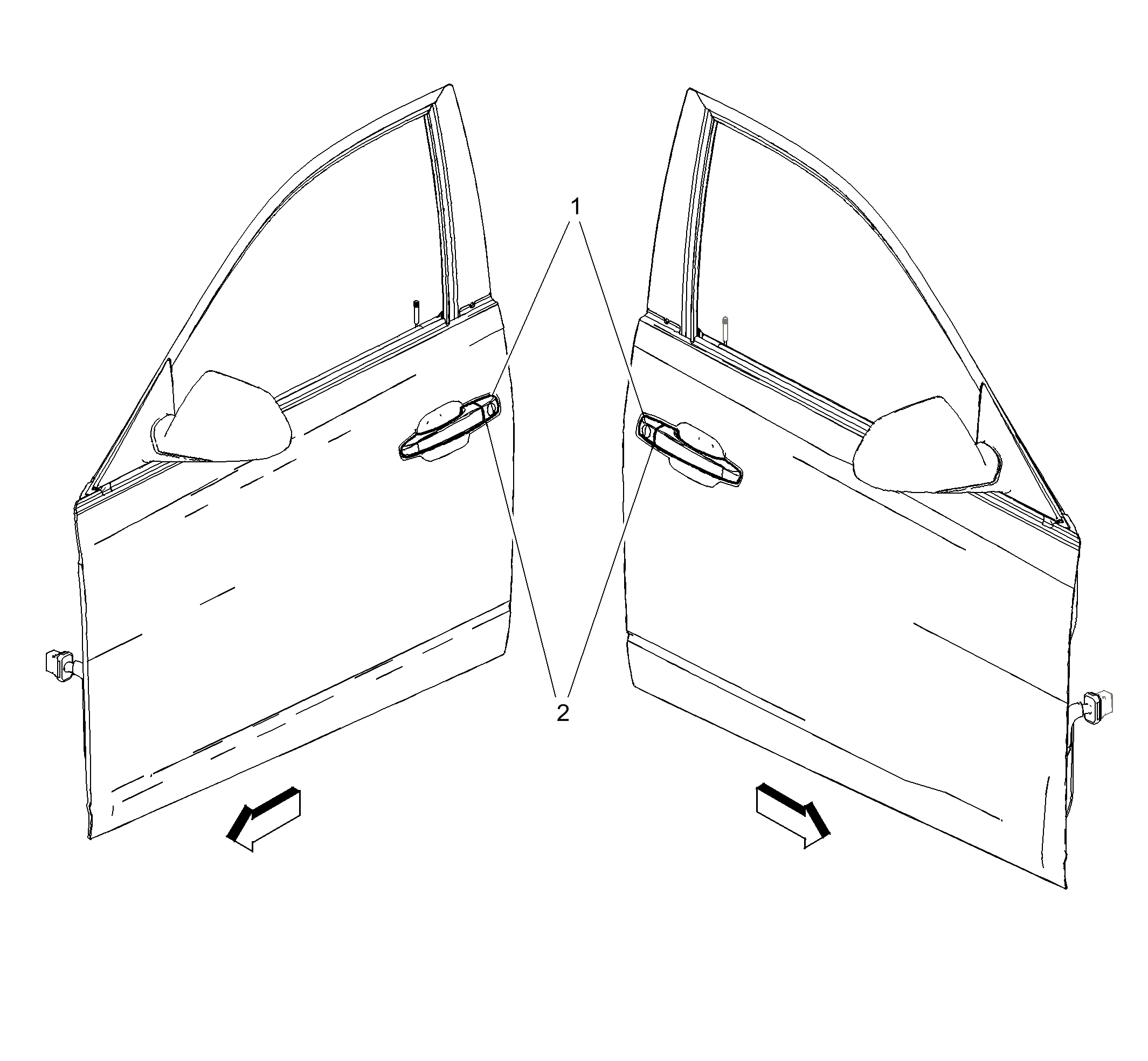

Fig 1: View Of Front Door Handles

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Handle Switch Assembly - Left Front
2	Door Handle Switch Assembly - Right Front

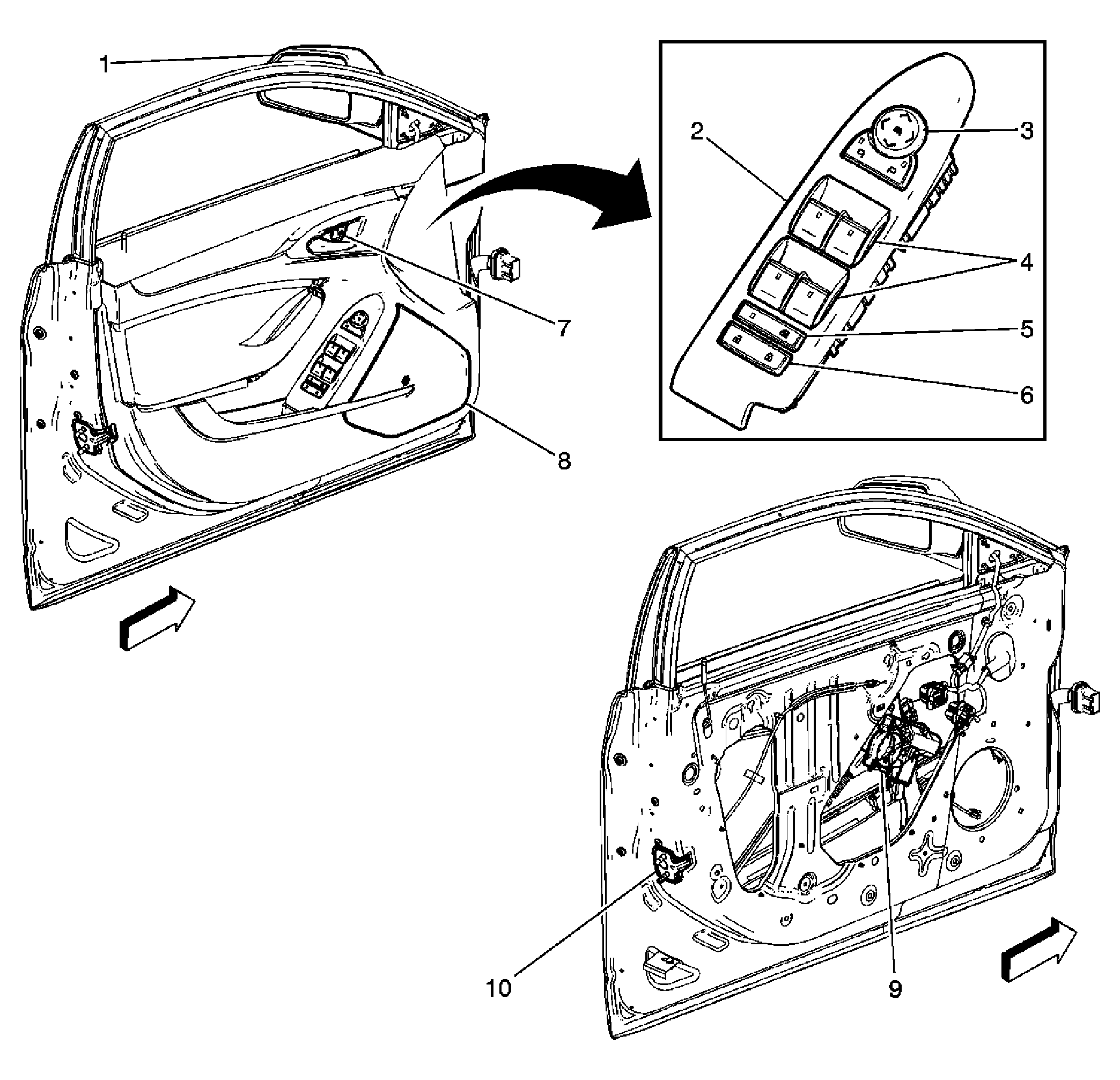

Fig 2: View Of Driver Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror - Driver
2	Driver Door Module (DDM)
3	Outside Rearview Mirror Switch
4	Window Switches
5	Window Lock-out Switch
6	Driver Door Lock Switch
7	Door Latch LED-Driver (TSQ)
8	Speaker - Left Front Door
9	Window Motor - Driver
10	Door Latch Assembly - Driver

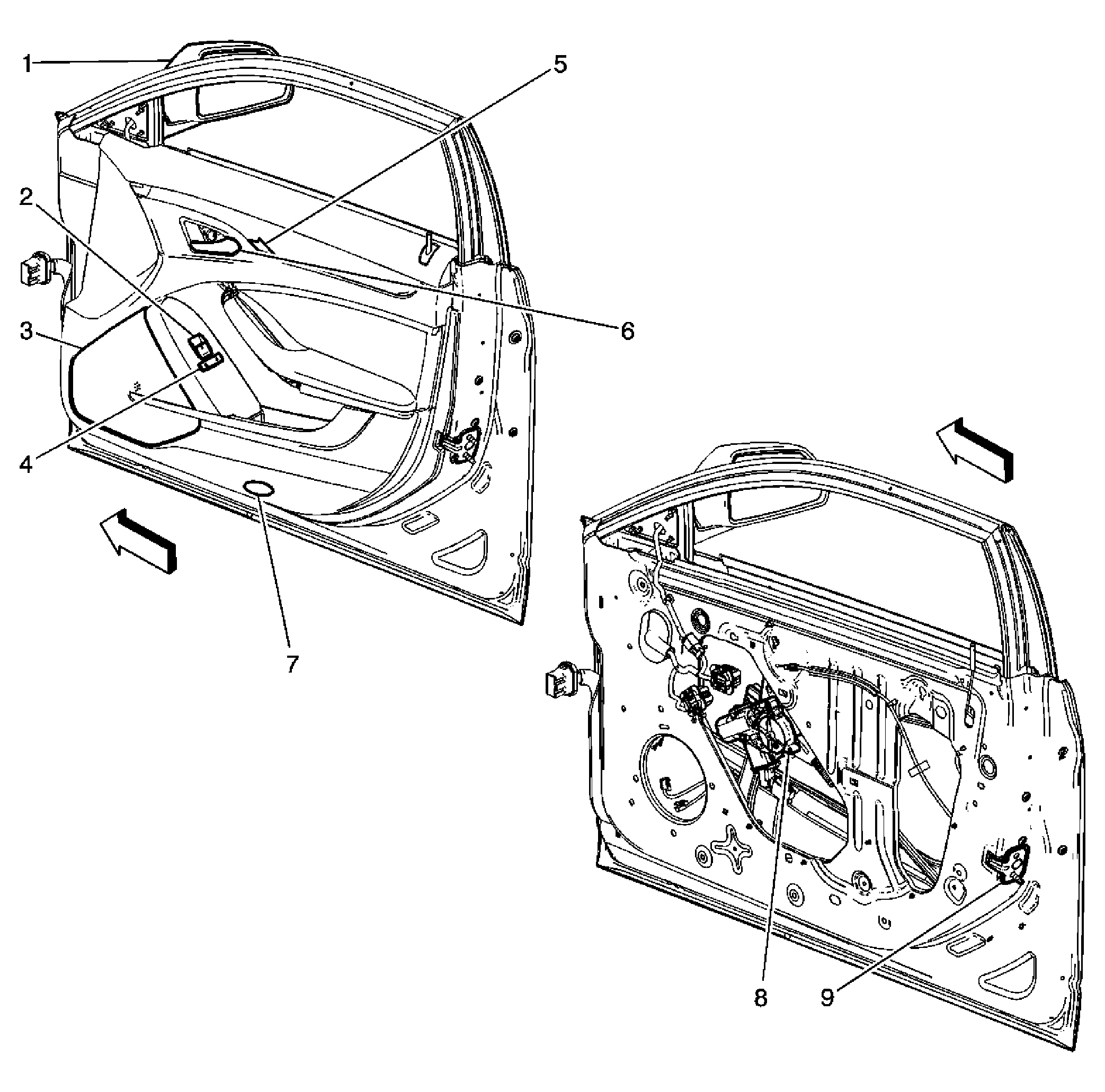

Fig 3: View Of Passenger Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror - Passenger
2	Window Switch - Front Passenger
3	Speaker - Right Front Door
4	Door Lock Swich - Front Passenger
5	Window Motor - Front Passenger
6	Door Latch Assembly - Front Passenger

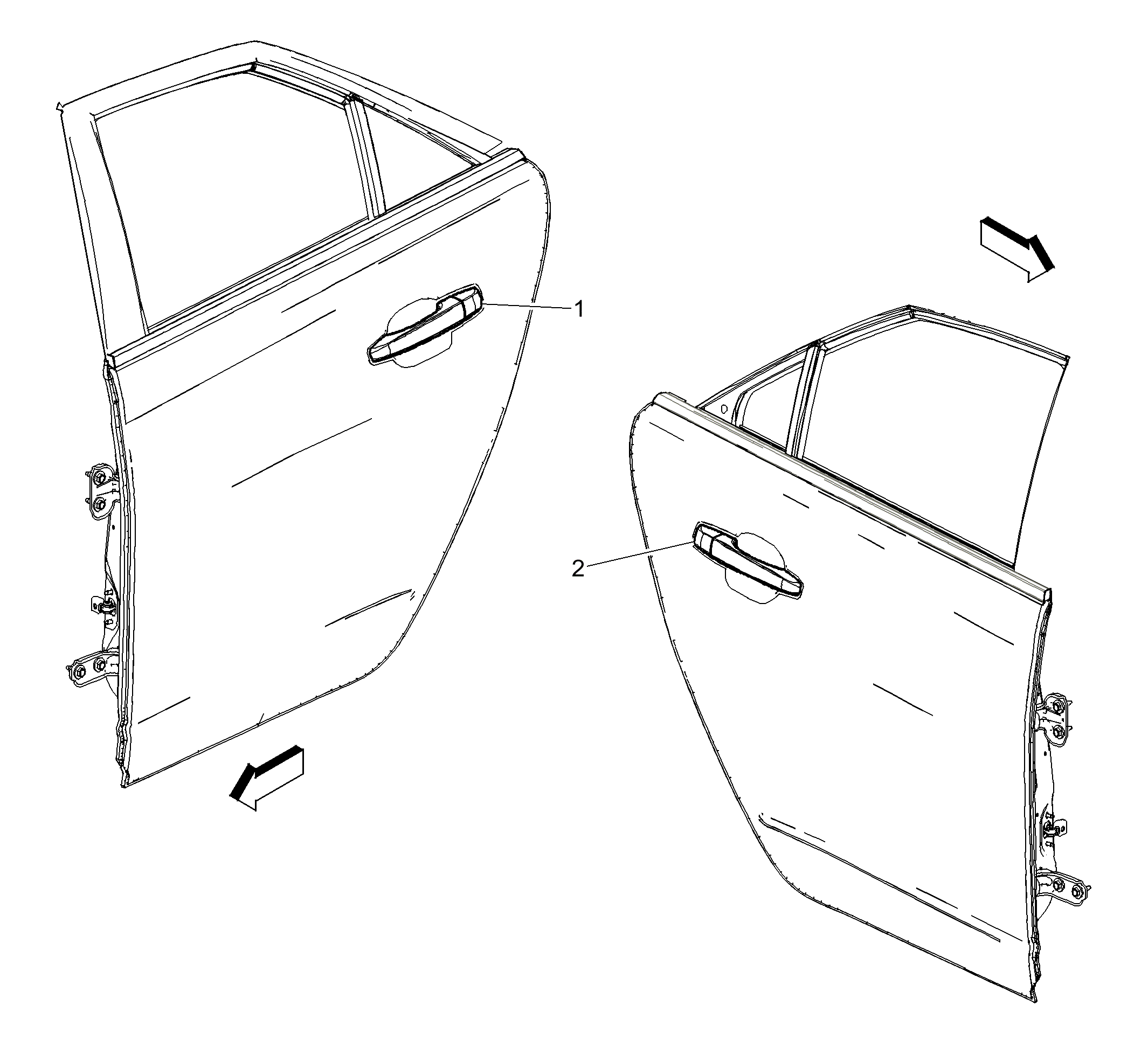

Fig 4: View Of Rear Door Handles

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Handle Switch Assembly - Left Rear
2	Door Handle Switch Assembly - Right Rear

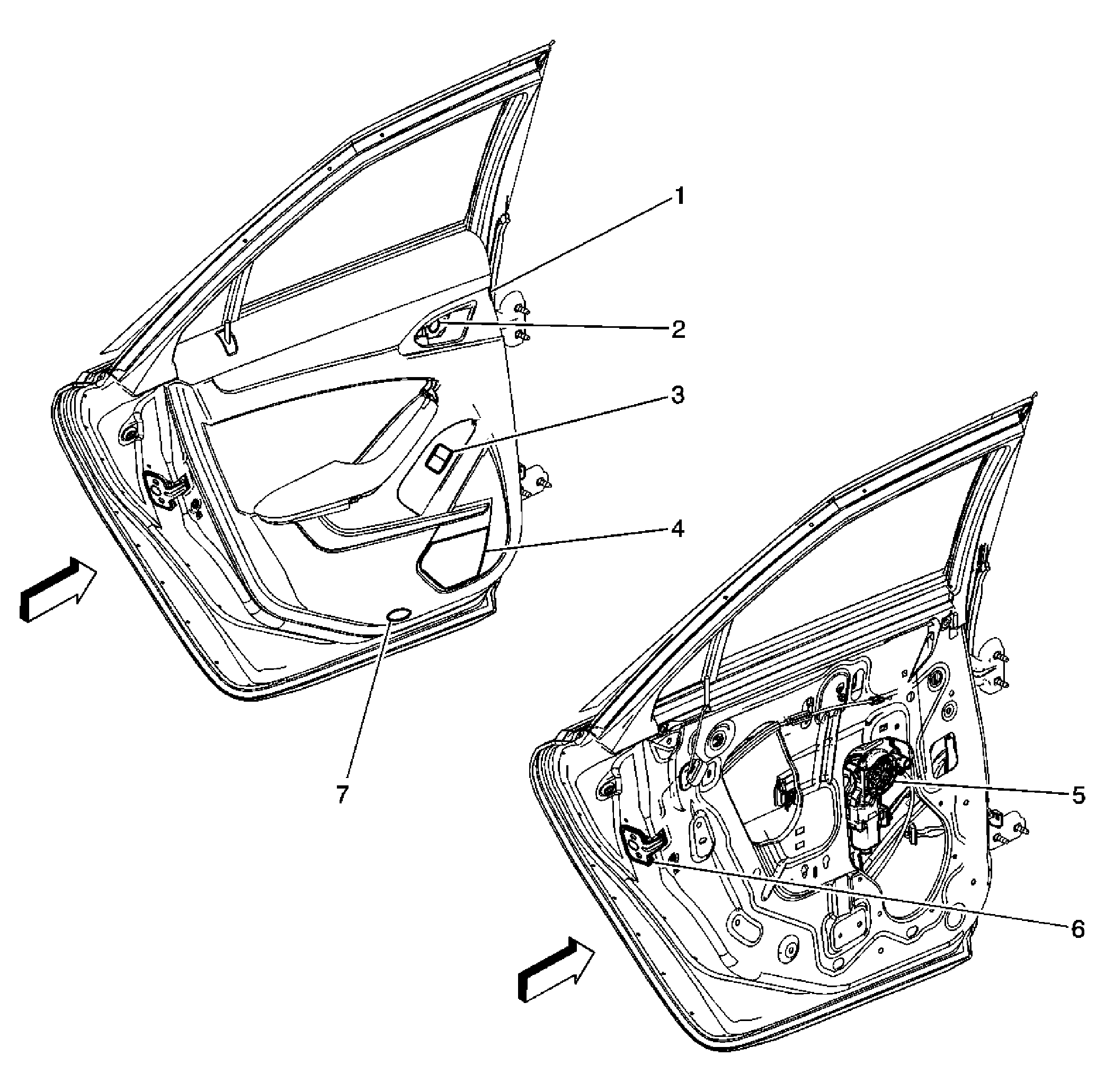

Fig 5: View Of Left Rear Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Window Switch - Left Rear
2	Speaker - Left Rear Door
3	Window Motor - Left Rear
4	Door Latch Assembly - Left Rear

Fig 6: View Of Right Rear Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Window Switch - Right Rear
2	Speaker - Right Rear Door
3	Window Motor - Right Rear
4	Door Latch Assembly - Right Rear
