Fuse Block - Rear X4

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

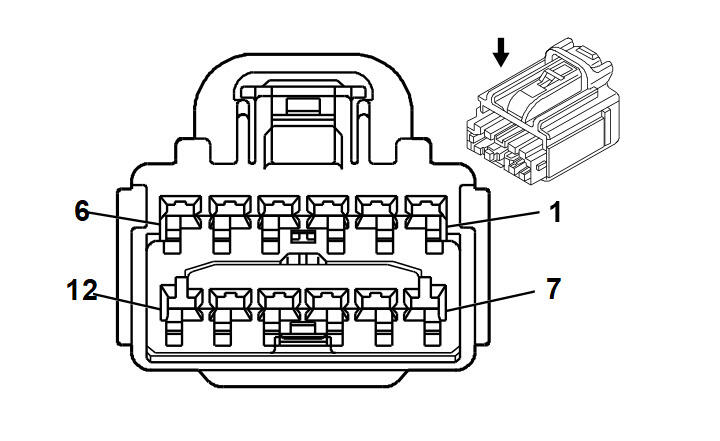

Fig 1: Fuse Block - Rear X4 Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	0.5 BN/WH	309	Right Park Lamp Supply Voltage
2-4	-	-	Not Used
5	0.35 WH	1080	Park Lamp Relay Control (T90)
6	-	-	Not Used
7	0.35 BN/WH	309	Right Park Lamp Supply Voltage (-T90)
8	-	-	Not Used
9	0.35 L-BU	5921	Driver Door Unlock Relay Control
10	-	-	Not Used
11	0.35 PK	79	Fuel Door Release Solenoid Control (NO8)
12	-	-	Not Used

Connector Part Information

OEM: 7283-3442-40
Service: 89046712
Description: 12-Way F YESC Kaizen Series (L-GY)

Terminal Part Information

Pins: 2-4, 6, 8, 10-12
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Pins: 1
Terminal/Tray: 7116-4101-08/9
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Pins: 1, 5, 7, 9
Terminal/Tray: 7116-4100-08/9
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094430/J-35616-2A (GY)
