Ignition Lock Key Transmitter Antenna Replacement - Floor Console (Active)

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

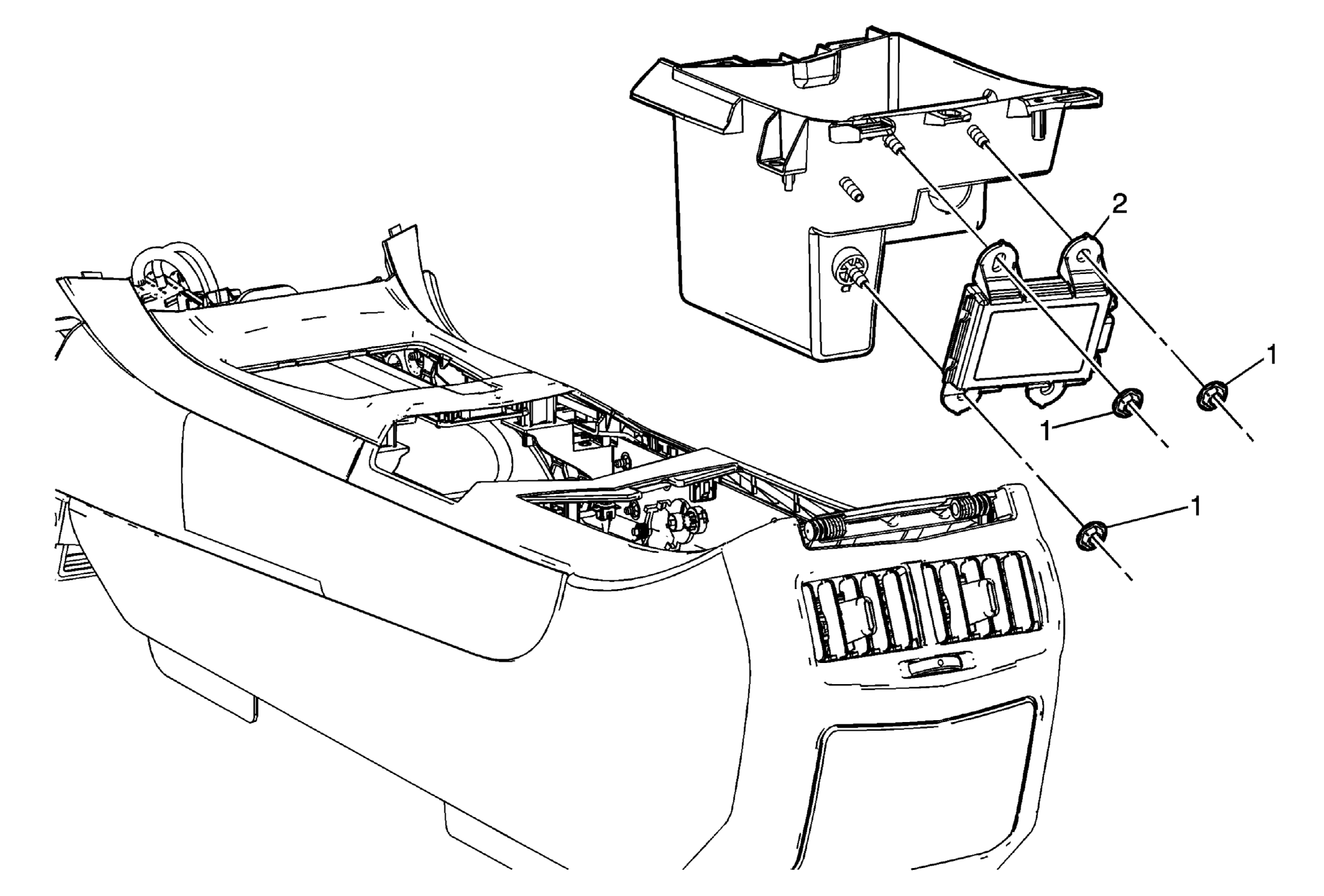

Fig 1: Ignition Lock Key Transmitter Antenna Replacement - Floor Console (Active)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front floor console compartment. Refer to Front Floor Console Compartment Replacement .
1	Ignition Lock Key Transmitter Antenna Nut (Qty: 3) Procedure: Tighten until fully seated but do not strip.
2	Ignition Lock Key Transmitter Antenna Procedure Disconnect the electrical connectors. For programming and set up information, refer to Control Module References .

Callout

Component Name

Preliminary Procedure:
Remove the front floor console compartment. Refer to Front Floor Console Compartment Replacement .

Ignition Lock Key Transmitter Antenna Nut (Qty: 3)
Procedure:
Tighten until fully seated but do not strip.

Ignition Lock Key Transmitter Antenna

Procedure

Disconnect the electrical connectors.
For programming and set up information, refer to Control Module References .
