Ignition Lock Key Transmitter Antenna Replacement - Floor Console (Passive)

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

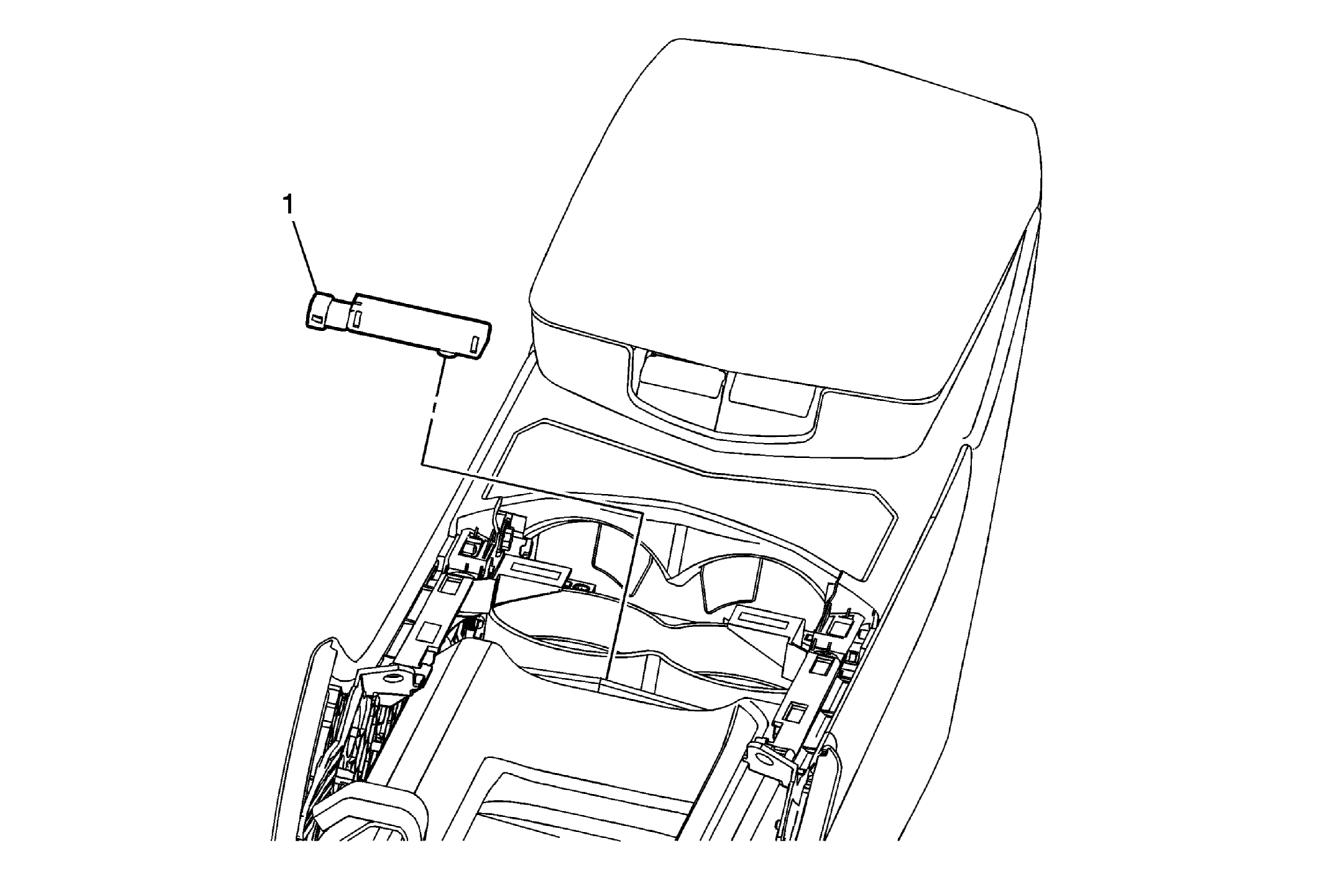

Fig 1: Ignition Lock Key Transmitter Antenna Replacement - Floor Console (Passive)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the cup holder. Refer to Front Floor Console Cup Holder Replacement .
1	Ignition Lock Key Transmitter Antenna Procedure Disconnect the electrical connectors. Unsnap the ignition lock key transmitter antenna from the floor console.

Callout

Component Name

Preliminary Procedure:
Remove the cup holder. Refer to Front Floor Console Cup Holder Replacement .

Ignition Lock Key Transmitter Antenna

Procedure

Disconnect the electrical connectors.
Unsnap the ignition lock key transmitter antenna from the floor console.
