Installation Procedure
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

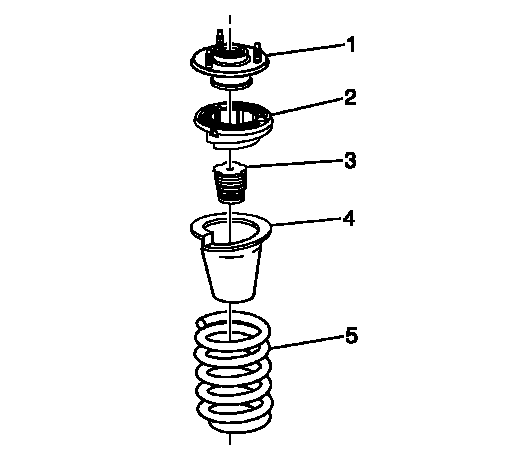

- Assemble the front suspension strut mount (1), front spring upper seat (2), front suspension strut bumper (3), front spring upper insulator (4), and the front suspension spring (5) in the spring compressor.

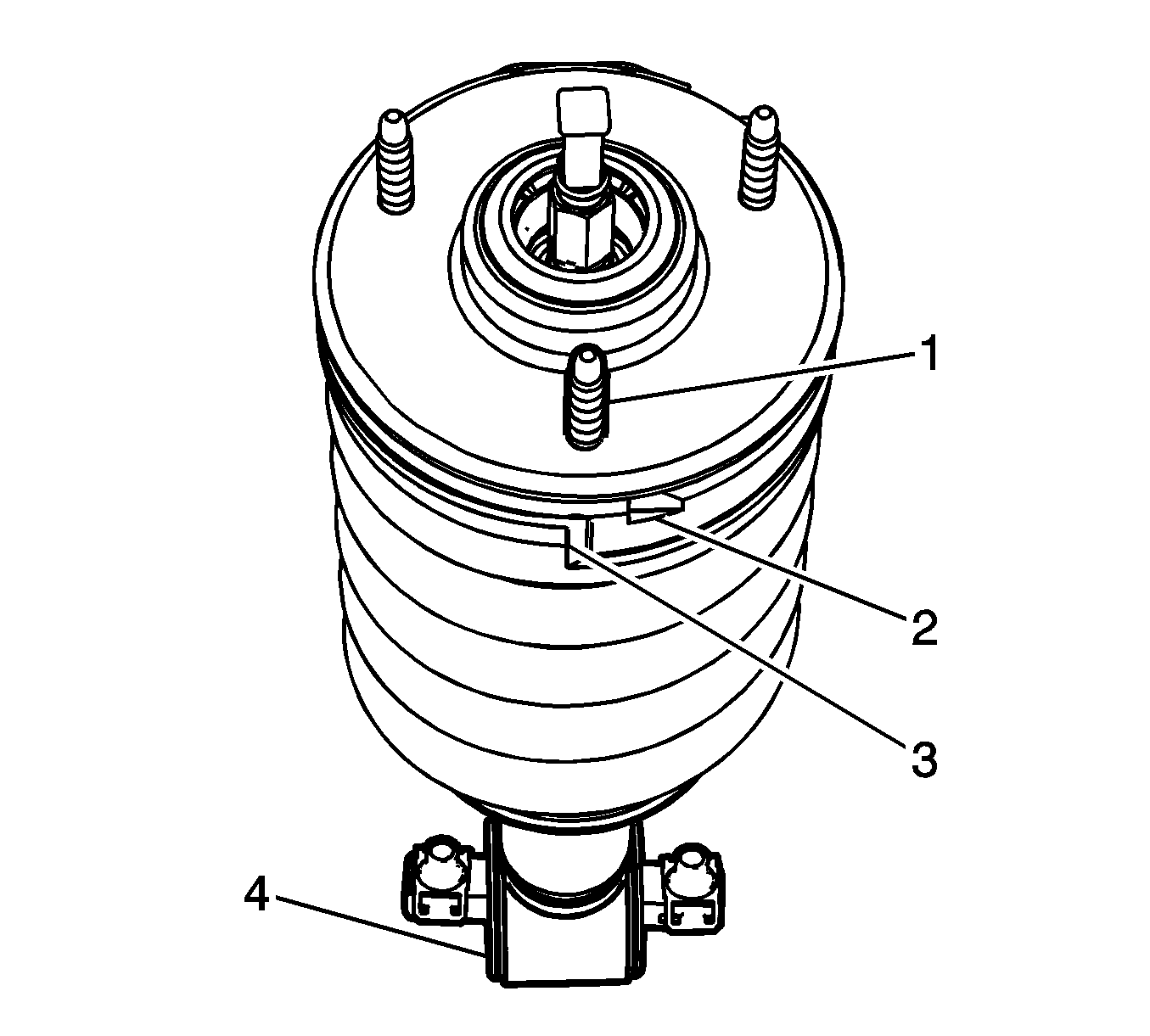

- Align the spring seat stop (3), the outboard stud (1), and the center of the lower strut mount (4). The notch in the spring seat (2) should be just to the right of the outboard stud.

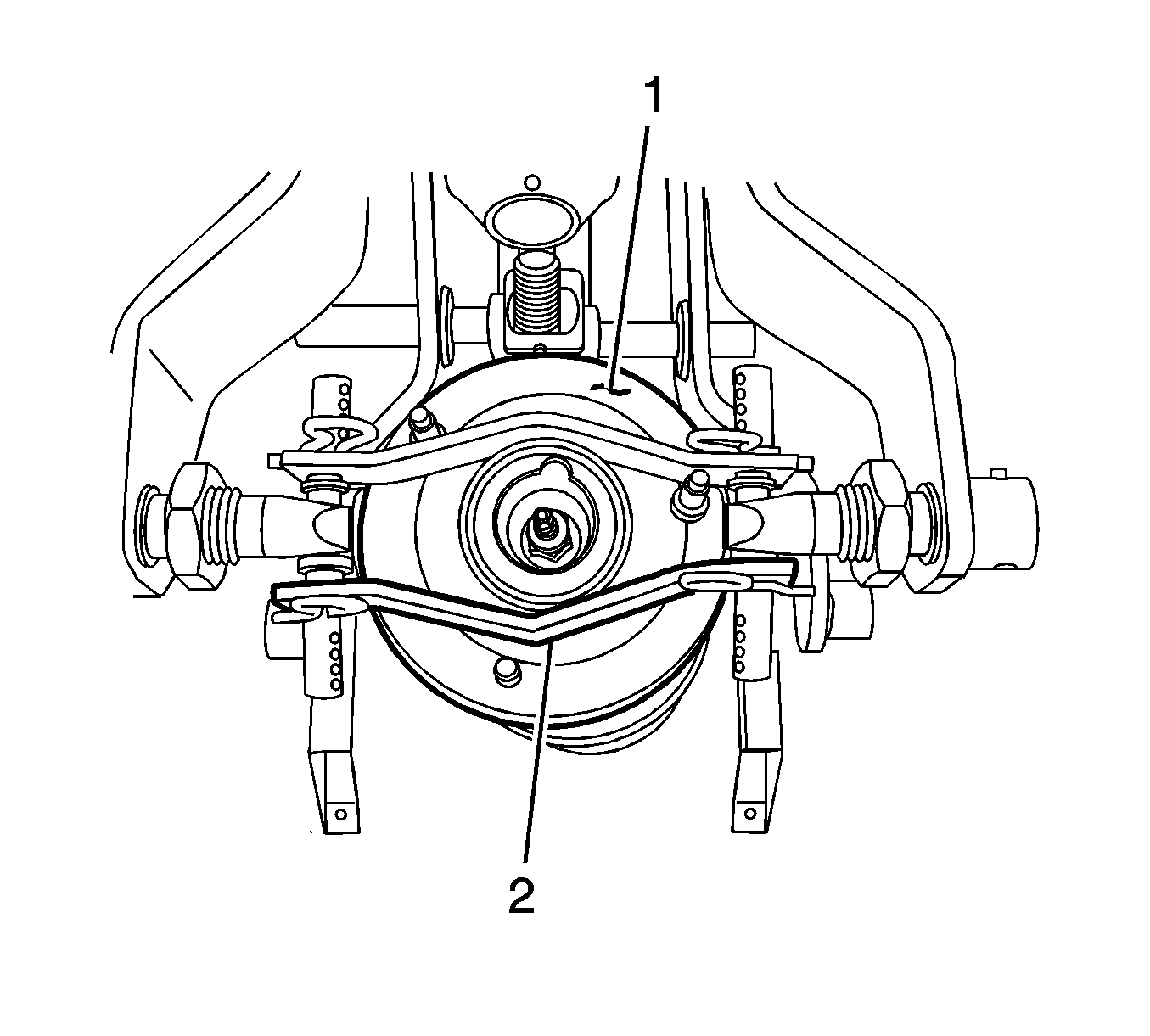

- Position the shock absorber (2) in the upper retaining bracket of the CH-48845 (1) so the shock absorber will be centered. See Special Tools .

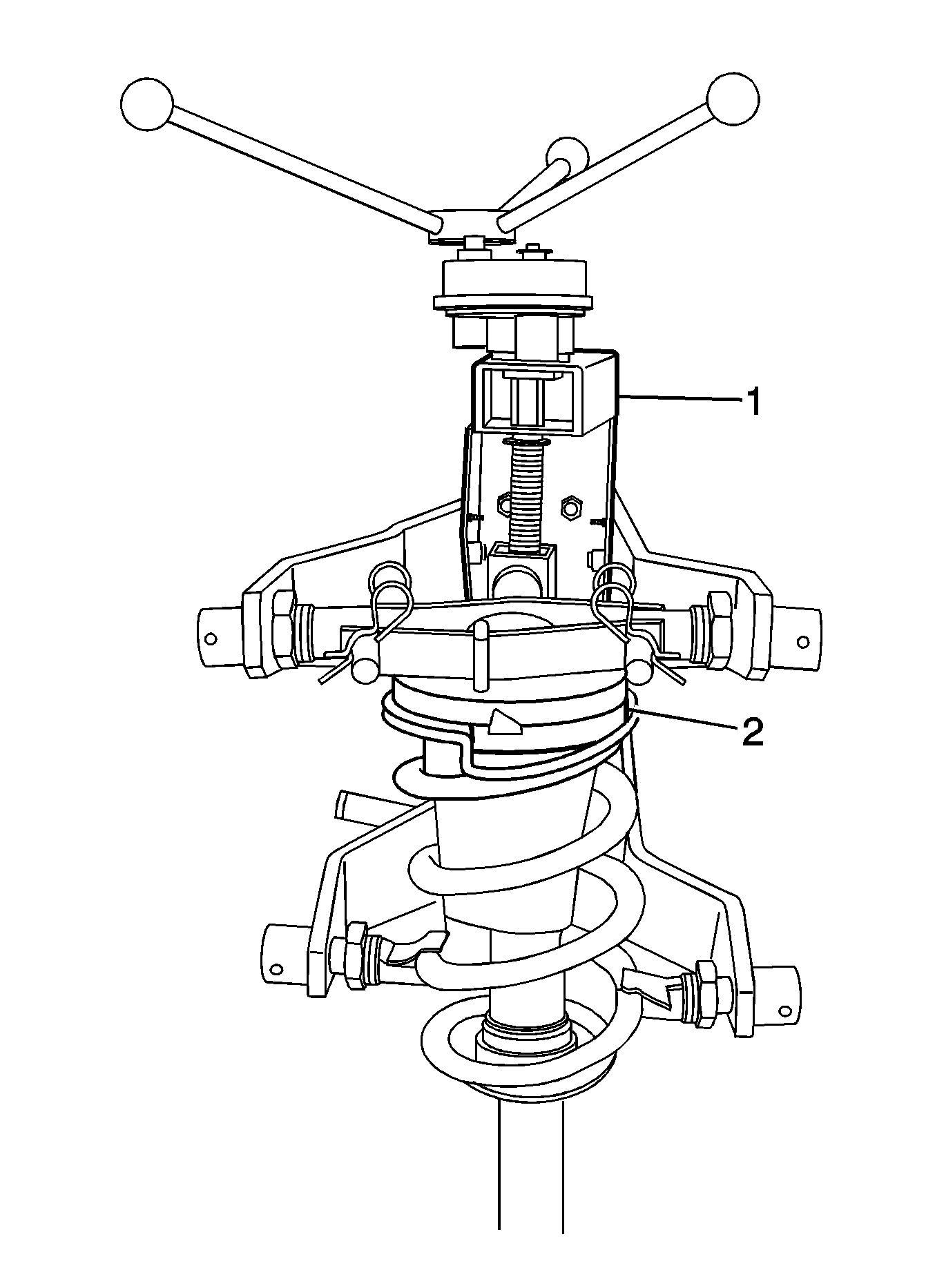

- Using the CH-48845 (1), compress the front spring (2). See Special Tools .

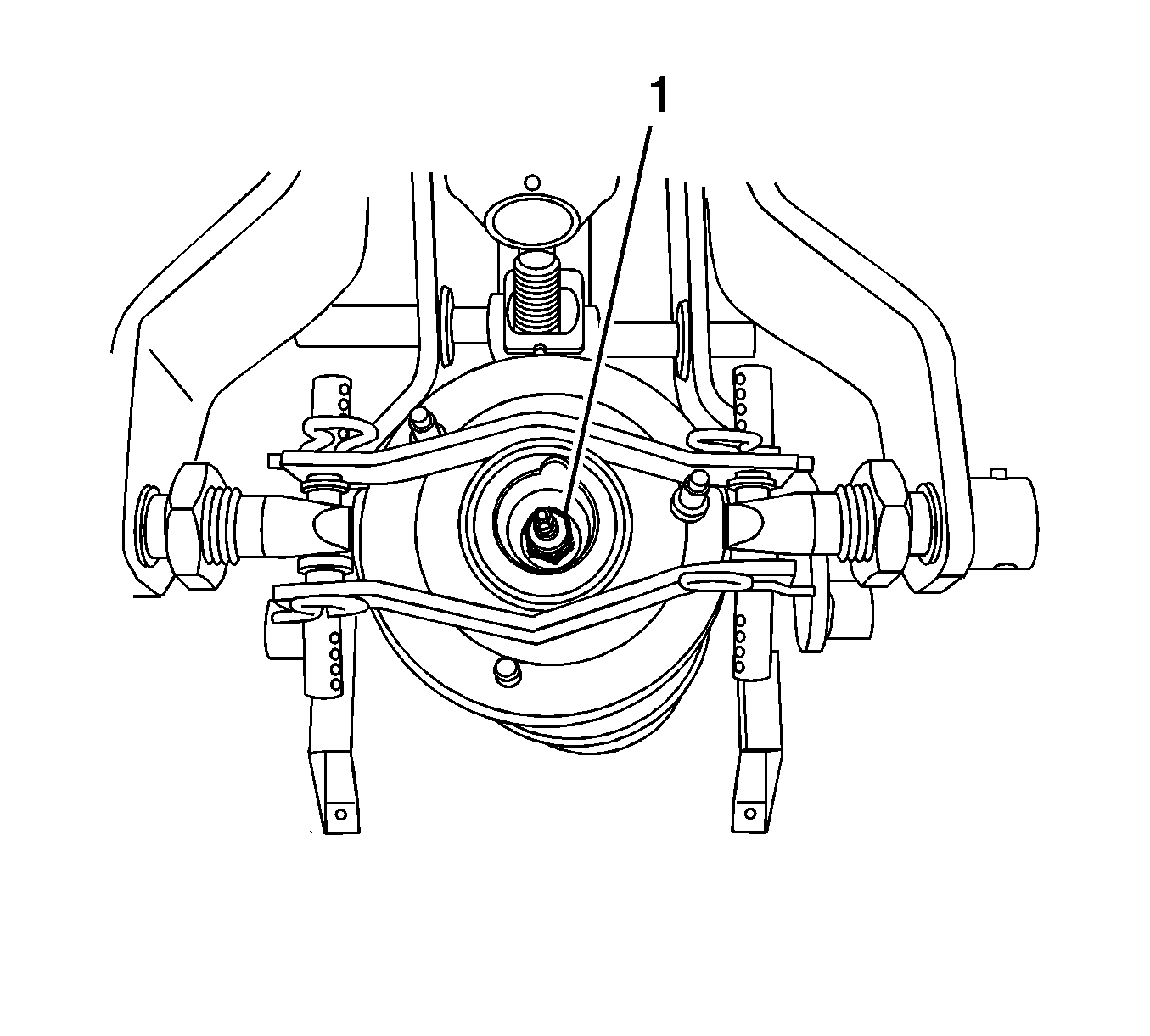

- Install the NEW shock absorber nut (1).
Tighten: For vehicles equipped with electronic suspension, tighten the shock absorber nut to 50 N.m (37 lb ft).
Tighten: For vehicles equipped with electronic suspension, tighten the electrical connector to 17 N.m (13 lb ft).
Tighten: For vehicles without electronic suspension, tighten the shock absorber nut to 60 N.m (44 lb ft).
- Remove the shock absorber assembly from the spring compressor
- Install the shock absorber in the vehicle. Refer to Shock Absorber and Spring Assembly Replacement .
IMPORTANT:
The inboard strut mounting studs are spaced closer together than the outboard stud. The outboard stud should be facing toward the outside (closest to the technician proper alignment.
IMPORTANT:
For vehicles equipped with electronic suspension control, ensure that the upper retaining bracket of the CH-48845 is adjusted properly so that it DOES NOT damage the front suspension mount.
NOTE:
Refer to Fastener Notice
.
