Radio Replacement (With RPO SLT)

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

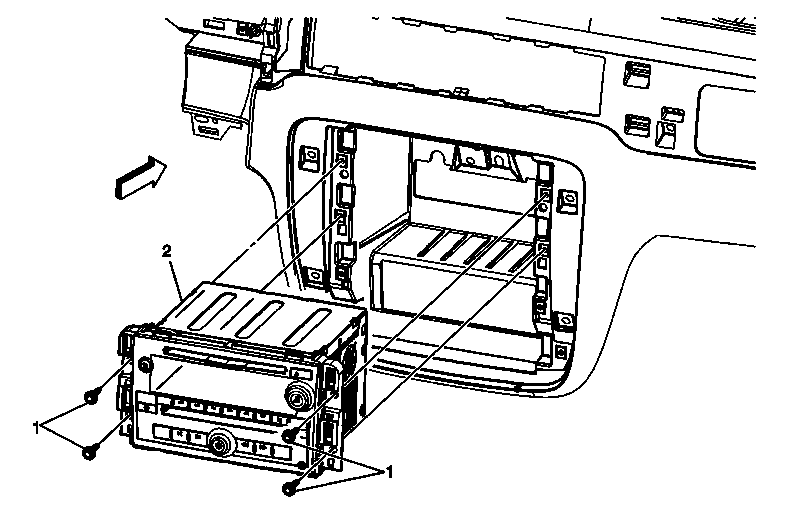

Fig 1: View Of Radio Assembly & Screws

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the accessory switch assembly. Refer to Accessory Switch Replacement (with RPO SLT) or Accessory Switch Replacement (without RPO SLT) . Remove the HVAC control module. Refer to HVAC Control Module Replacement or HVAC Control Module Replacement .
1	Radio Screw (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 2 N.m (18 lb in)
2	Radio Assembly Tip: Use a scan tool to retrieve the radio part number before removing the radio from the vehicle. Disconnect the electrical connector. Disconnect the antenna cable. Reprogram the radio after replacement. Refer to Control Module References .

Callout

Component Name

Preliminary Procedures

Remove the accessory switch assembly. Refer to Accessory Switch Replacement (with RPO SLT) or Accessory Switch Replacement (without RPO SLT) .
Remove the HVAC control module. Refer to HVAC Control Module Replacement or HVAC Control Module Replacement .

Radio Screw (Qty: 4)

CAUTION: Refer to Fastener Caution .

Tighten: 2 N.m (18 lb in)

Radio Assembly
Tip:

Use a scan tool to retrieve the radio part number before removing the radio from the vehicle.
Disconnect the electrical connector.
Disconnect the antenna cable.
Reprogram the radio after replacement. Refer to Control Module References .
