Installation Procedure

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

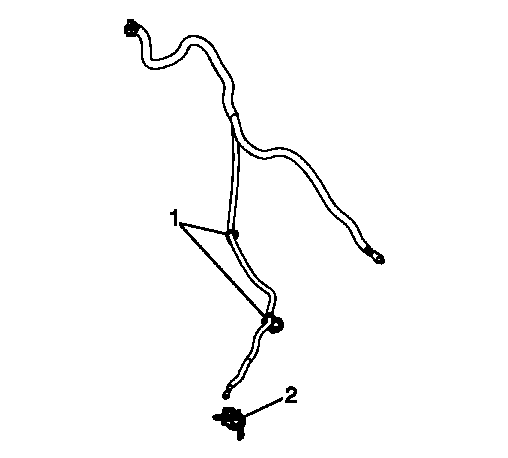

Fig 1: View Of Negative Battery Cable Clips & Battery Current Sensor

Courtesy of GENERAL MOTORS CORP.

Squeeze the negative battery cable branches together.

IMPORTANT: Ensure the battery current sensor is installed in the correct direction and location on the negative battery cable.

Slide the NEW battery current sensor (2) up onto the negative battery cable to the location previously marked during removal.
Wrap electrical tape around the battery current sensor leg in order to secure the sensor to the negative battery cable.
Install the negative battery cable clips (1) to the cable to the locations previously marked during removal.
Install the negative battery cable. Refer to Battery Negative Cable Replacement (With LU3) , Battery Negative Cable Replacement (With V8 Engine) or Battery Negative Cable Replacement (With LMM) .
