Installation Procedure

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

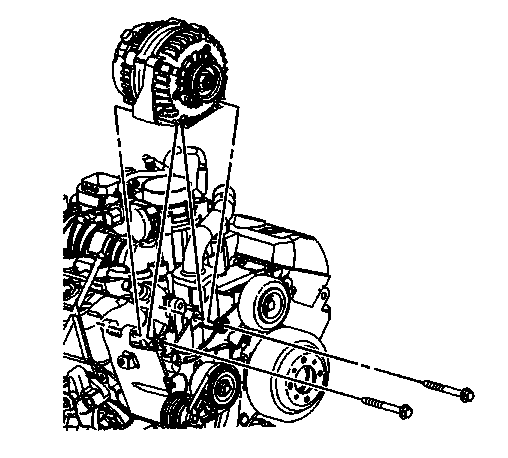

    Fig 1: View Of Generator & Bolts
    GM1877576Courtesy of GENERAL MOTORS CORP.
  1. Install the generator into the generator bracket.
  2. Position the heater outlet, and AC compressor/condenser hoses as necessary.
    3. CAUTION: Refer to Fastener Caution .
  3. Install the generator bolts.

    Tighten:  Tighten the bolts to 50 N.m (37 lb ft).

    4. Fig 2: View Of Engine Wiring Harness & Components
    GM1876492Courtesy of GENERAL MOTORS CORP.
  4. Install the engine wiring harness lead (4) to the generator stud.
  5. Install the engine wiring harness nut (3) to the generator.

    Tighten:  Tighten the nut to 9 N.m (80 lb in).

  6. Position the engine wiring harness boot (6) over the generator stud.
  7. Connect the engine wiring harness electrical connector (5) to the generator.

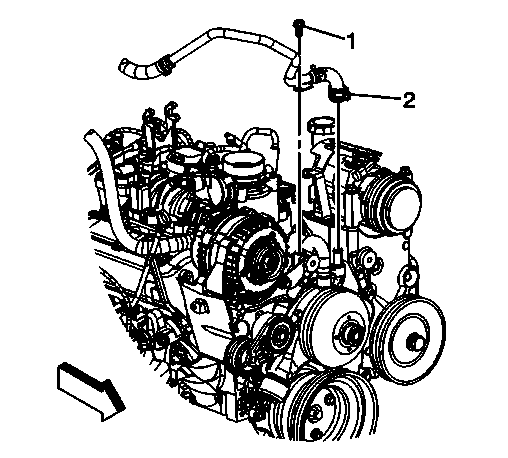

    8. Fig 3: View Of Heater Outlet Hose & Clamp Bolt
    GM1877575Courtesy of GENERAL MOTORS CORP.
  8. Install the heater outlet hose clamp bolt (1) at the generator bracket.

    Tighten:  Tighten the bolt to 25 N.m (18 lb ft).

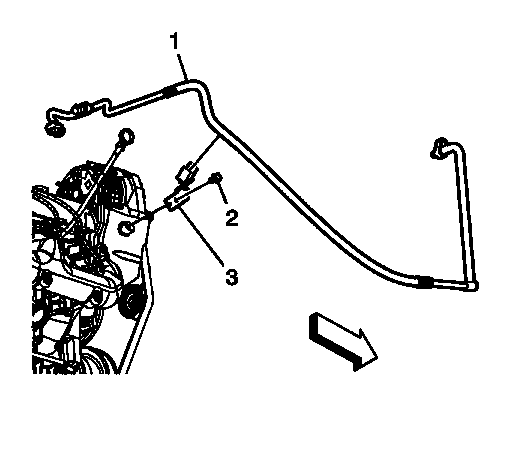

    9. Fig 4: View Of A/C Compressor & Condenser Hose Bracket & Bolt
    GM1877551Courtesy of GENERAL MOTORS CORP.
  9. Install the A/C compressor and condenser hose bracket bolt (2).

    Tighten:  Tighten the bolt to 25 N.m (18 lb ft).

    10. Fig 5: View Of Engine Wiring Harness & Components
    GM1876999Courtesy of GENERAL MOTORS CORP.
  10. Instal the engine wiring harness clip (1) to the A/C compressor/condenser hose bracket.
  11. Install the drive belt. Refer to Drive Belt Replacement .
  12. Install the air cleaner outlet resonator. Refer to Air Cleaner Outlet Resonator Replacement .
  13. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (With Single Battery) , Battery Negative Cable Disconnection and Connection (With Auxiliary Battery)  or Battery Negative Cable Disconnection and Connection (With Dual Batteries) .
