Installation Procedure

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

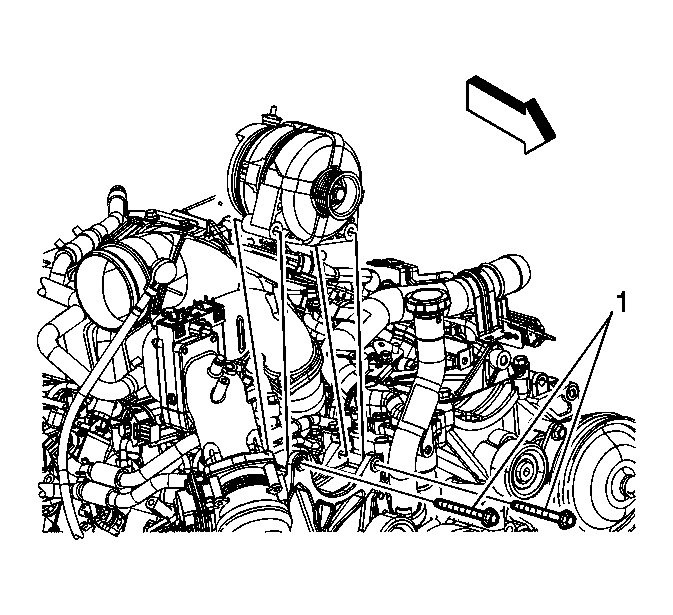

    Fig 1: View Of Generator & Bolts
    GM1874246Courtesy of GENERAL MOTORS CORP.
  1. Install the generator.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the generator bolts (1).

    Tighten:  Tighten the bolts to 50 N.m (37 lb ft).

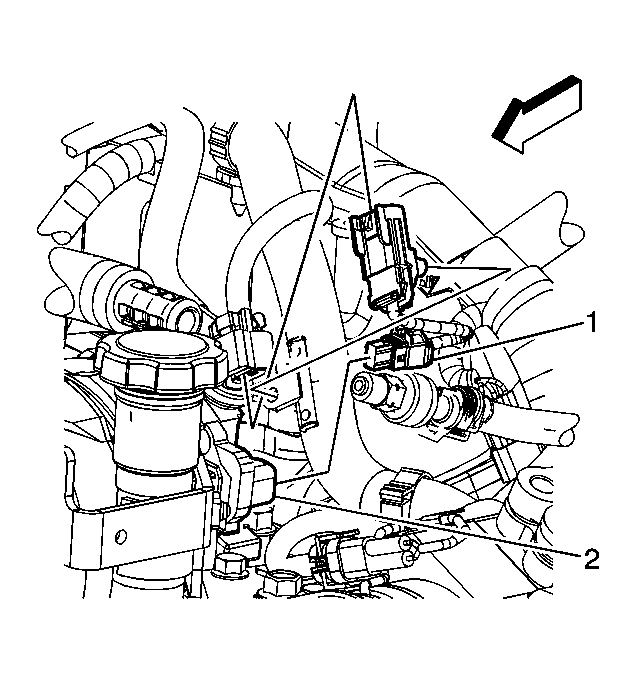

    3. Fig 2: View Of Engine Wiring Harness Electrical Connector & Generator
    GM1874242Courtesy of GENERAL MOTORS CORP.
  3. Connect the engine wiring harness electrical connector (1) to the generator (2).

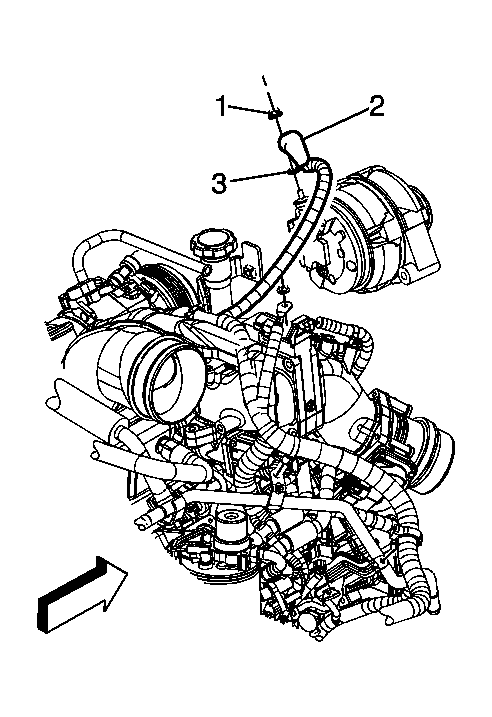

    4. Fig 3: View Of Engine Wiring Harness Terminal, Boot & Nut
    GM1874244Courtesy of GENERAL MOTORS CORP.
  4. Install the engine wiring harness terminal (3) to the generator.
  5. Install the engine wiring harness nut (1).

    Tighten:  Tighten the nut to 9 N.m (80 lb in).

  6. Position the engine wiring harness boot (2) in order to cover the terminal stud.
  7. Install the drive belt. Refer to Drive Belt Replacement .
  8. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (With Single Battery) , Battery Negative Cable Disconnection and Connection (With Auxiliary Battery)  or Battery Negative Cable Disconnection and Connection (With Dual Batteries) .
