Lifting And Jacking The Vehicle: Notes
To avoid any vehicle damage, serious personal injury or death, always use the jackstands to support the vehicle when lifting the vehicle with a jack.
To avoid any vehicle damage, serious personal injury or death:
- When major components are removed from the vehicle and the vehicle is supported by a hoist, support the vehicle with jack stands at the opposite end from which the components are being removed and strap the vehicle to the hoist.
- When performing work in the engine compartment or under the vehicle, ensure that the hood is fully open, or opened to its secondary latch. When the hood is opened to the secondary latch, the vehicle will disable the remote start features from the key fob and OnStar mobile app. Failure to open the hood, or open the hood to the secondary latch while doing a repair in the engine compartment or under the vehicle can result in inadvertent vehicle starting which could result in personal injury or damage to a vehicle.
Prior to servicing the vehicle using a lift hoist, the vehicle power assist steps must be "Disabled" to prevent accidental activation and contacting the lift hoist arms. Also, lift pads/spacers MUST be used, to provide proper clearance between the lift hoist arms and the vehicle's fixed or power assist steps. Lifting the vehicle without using the proper lift pads/spacers for clearance may result in the lift hoist arms contacting and damaging the vehicle's fixed or power assist steps and components. After servicing the vehicle, the vehicle power assist steps must be "Enabled".
Perform the following steps before beginning any vehicle lifting or jacking procedure:
- Remove or secure all of the vehicle contents in order to avoid any shifting or any movement that may occur during the vehicle lifting or jacking procedure.
- The lifting equipment or the jacking equipment weight rating must meet or exceed the weight of the vehicle and any vehicle contents.
- The lifting equipment or the jacking equipment must meet the operational standards of the lifting equipment or jacking equipment manufacturer.
- Perform the vehicle lifting or jacking procedure on a clean, hard, dry, level surface.
- Perform the vehicle lifting or jacking procedure only at the identified lift points. DO NOT allow the lifting equipment or jacking equipment to contact any other vehicle components.
Failure to perform the previous steps could result in damage to the lifting equipment or the jacking equipment, the vehicle, and/or the vehicle contents.
For lifting the vehicle, various lift points are recommended. Before you begin any lifting procedure, place the vehicle on a clean, hard, level surface. Verify that all the lifting equipment meets weight standards and is in good working order. Verify that all of the vehicle loads are equally distributed and secure. If you are only supporting the vehicle at the frame side rails, verify that the lifting equipment does not put too much stress on, or weaken, the frame side rails.
During hoisting, do NOT damage the fuel tanks, the exhaust system, or the underbody.

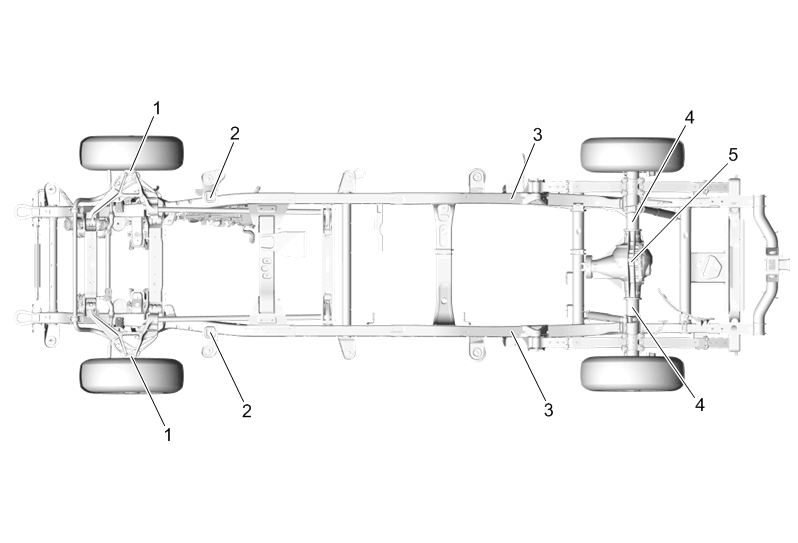

| Callout | Component Name |
|---|---|
| 1 | Lower Control Arm Contact Points |
| 2 | Front Frame Contact Points |
| 3 | Rear Frame Contact Points |
| 4 | Rear Axle Contact Points |
| 5 | Differential Contact Points |
