Rear Disc Brake Backing Plate Replacement (JD9)

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

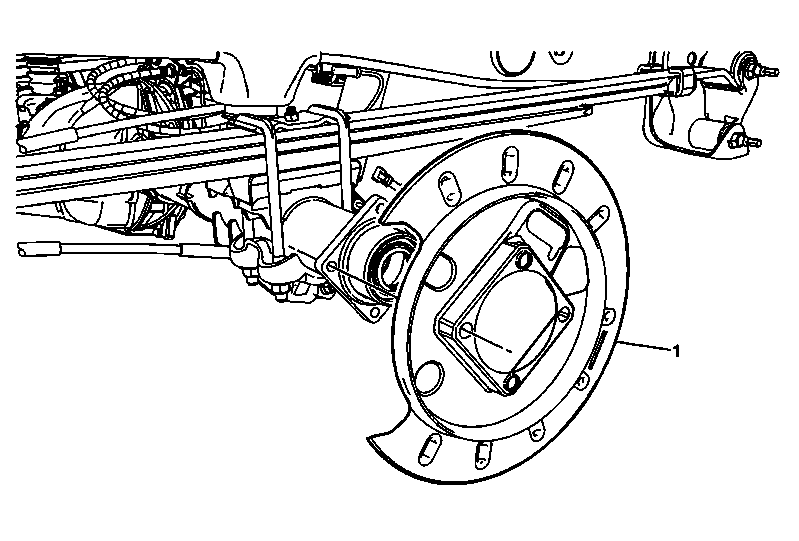

Fig 1: View Of Disc Brake Backing Plate

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: Refer to Brake Dust Warning . Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation . Remove the axle shaft. Refer to Rear Axle Shaft Replacement . Remove the park brake backing plate. Refer to Rear Parking Brake Anchor Backing Plate Replacement .
1	Disc Brake Backing Plate

Callout

Component Name

WARNING: Refer to Brake Dust Warning .

Preliminary Procedures

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
Remove the axle shaft. Refer to Rear Axle Shaft Replacement .
Remove the park brake backing plate. Refer to Rear Parking Brake Anchor Backing Plate Replacement .

Disc Brake Backing Plate
