Locking Differential Disassembled Views
WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Differential Pinion Gear Shaft |
| 2 | Differential Case |
| 3 | Differential Pinion Gear Shaft Lock Bolt |
| 4 | Locking Differential Lockout Bushings |
| 5 | Locking Differential Clutch Disc Thrust Washer |
| 6 | Locking Differential Clutch Disc Guide |
| 7 | Locking Differential Clutch Disc Set |
| 8 | Differential Pinion Gear Thrust Washer |
| 9 | Differential Pinion Gear |
| 10 | Locking Differential Side Gear |
| 11 | Locking Differential Thrust Block |
| 12 | Differential Pinion Gear |
| 13 | Differential Pinion Gear Thrust Washer |
| 14 | Locking Differential Side Gear, Cam-Faced |
| 15 | Locking Differential Cam |
| 16 | Locking Differential Governor |
| 17 | Wave Washer |
| 18 | Locking Differential Clutch Disc Set |
| 19 | Locking Differential Clutch Disc Guide |
| 20 | Locking Differential Snap Ring Retainer |
| 21 | Locking Differential Clutch Disc Thrust Washer |
| Callout | Component Name |
|---|---|
| 1 | Differential Case |
| 2 | Differential Pinion Gear Shaft |
| 3 | Locking Differential Lockout Bushing |
| 4 | Differential Pinion Gear Shaft Lock Bolt |
| 5 | Locking Differential Clutch Disc Thrust Washer |
| 6 | Locking Differential Clutch Disc Set |
| 7 | Locking Differential Clutch Disc Guide |
| 8 | Locking Differential Side Gear |
| 9 | Differential Pinion Gear Thrust Washer |
| 10 | Differential Pinion Gear |
| 11 | Locking Differential Governor |
| 12 | Locking Differential Latching Bracket |
| 13 | Locking Differential Thrust Block |
| 14 | Differential Pinion Gear Thrust Washer |
| 15 | Differential Pinion Gear |
| 16 | Locking Differential Side Gear, Cam-Faced |
| 17 | Locking Differential Cam |
| 18 | Wave Washer |
| 19 | Locking Differential Clutch Disc Guide |
| 20 | Locking Differential Clutch Disc Set |
| 21 | Locking Differential Side Gear Thrust Sleeve |
| 22 | Differential Side Gear Shim |

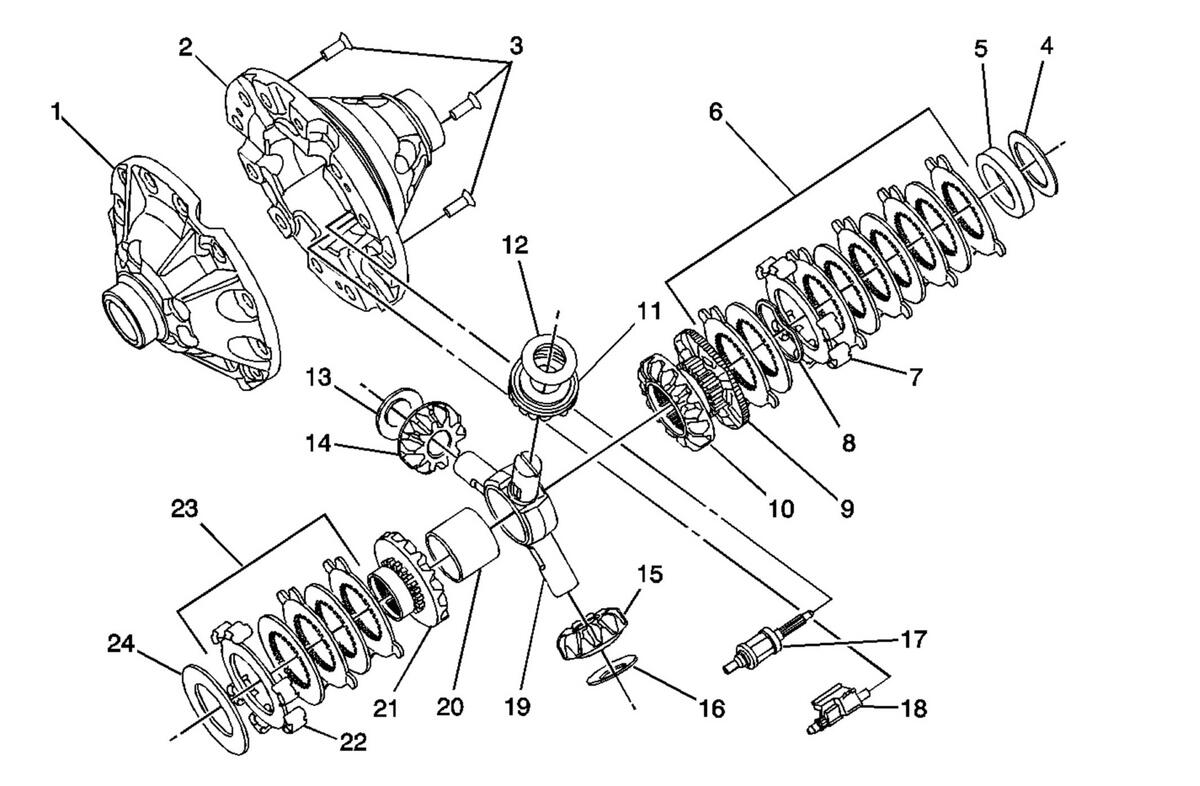

| Callout | Component Name |
|---|---|
| 1 | Differential Case - Left Side |
| 2 | Differential Case - Right Side |
| 3 | Differential Case Screws |
| 4 | Locking Differential Clutch Disc Thrust Washer |
| 5 | Locking Differential Side Gear Thrust Sleeve |
| 6 | Locking Differential Clutch Disc Set |
| 7 | Locking Differential Clutch Disc Guide |
| 8 | Wave Washer |
| 9 | Locking Differential Cam |
| 10 | Locking Differential Side Gear - Cam Faced |
| 11 | Differential Pinion Gear |
| 12 | Differential Pinion Gear Thrust Washer |
| 13 | Differential Pinion Gear Thrust Washer |
| 14 | Differential Pinion Gear |
| 15 | Differential Pinion Gear |
| 16 | Differential Pinion Gear Thrust Washer |
| 17 | Locking Differential Governor |
| 18 | Locking Differential Latching Bracket and Spring |
| 19 | Locking Differential Spider |
| 20 | Locking Differential Thrust Block |
| 21 | Locking Differential Side Gear |
| 22 | Locking Differential Clutch Disc Guide |
| 23 | Locking Differential Clutch Disc Set |
| 24 | Differential Side Gear Shim |
