Power Take-Off (PTO) Schematics

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, and 2009 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

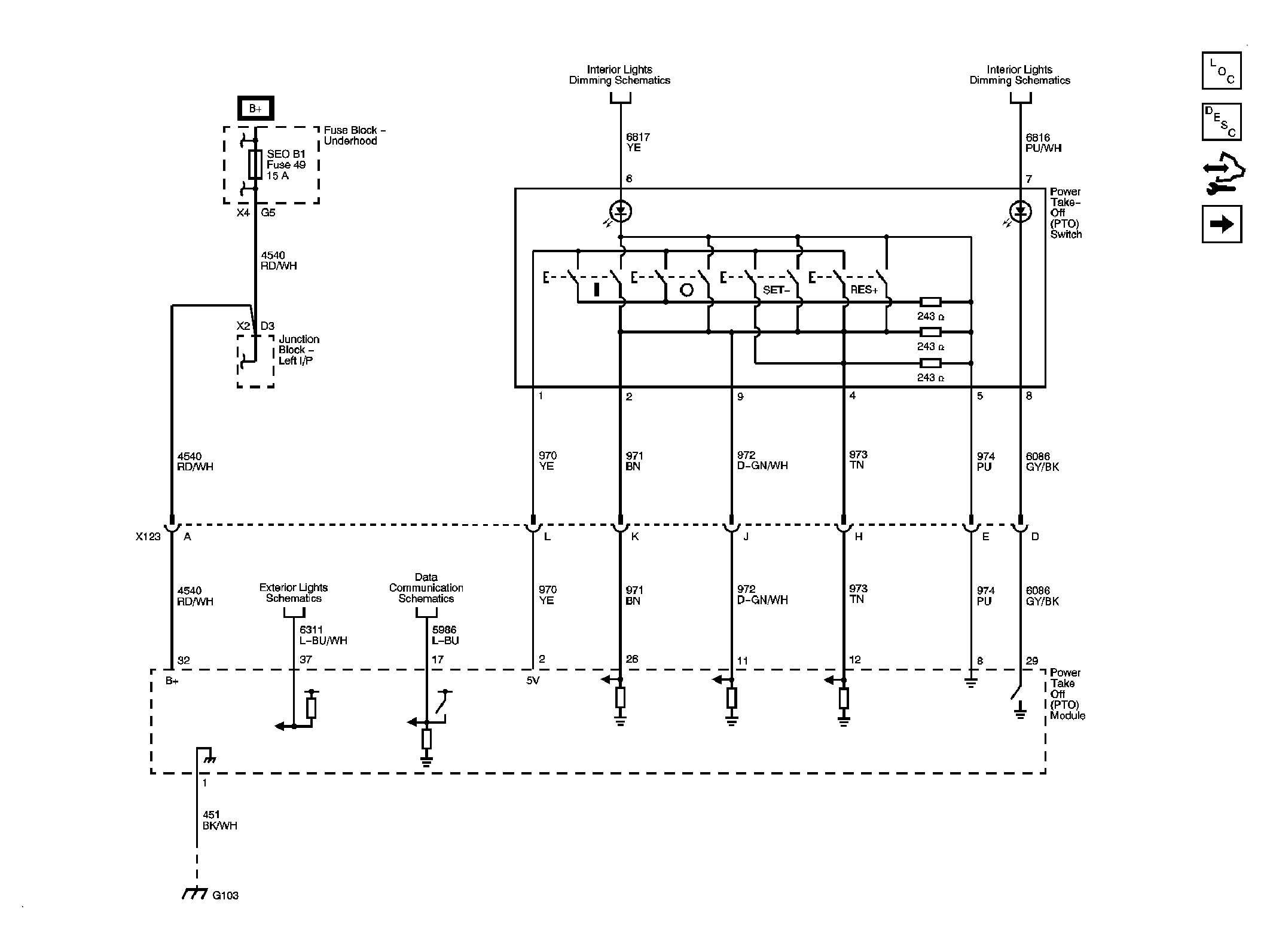

Fig 1: Switch Controls - Power Take-Off (PTO) Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

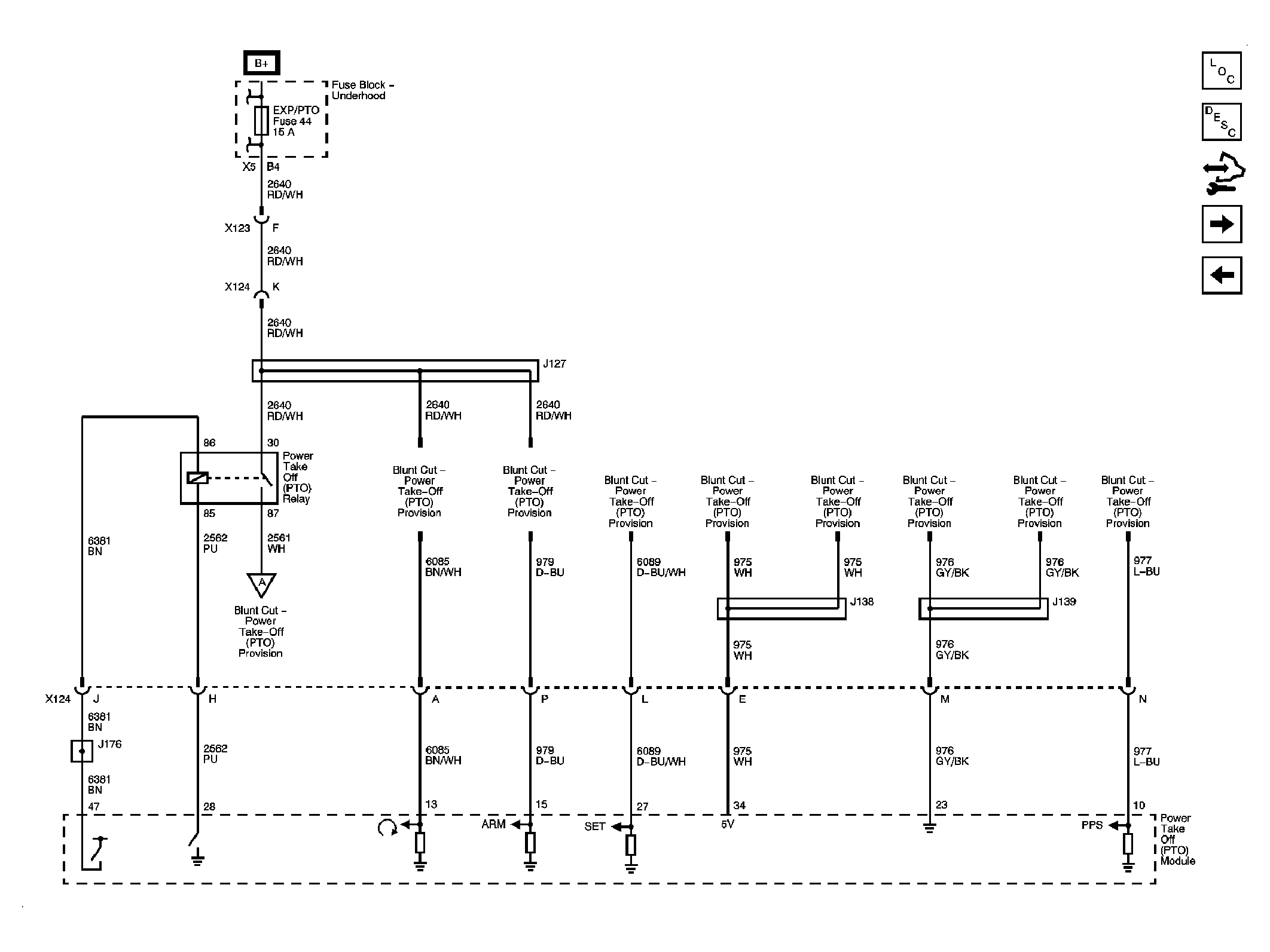

Fig 2: Wiring Provisions Schematic - 1 of 2

Courtesy of GENERAL MOTORS CORP.

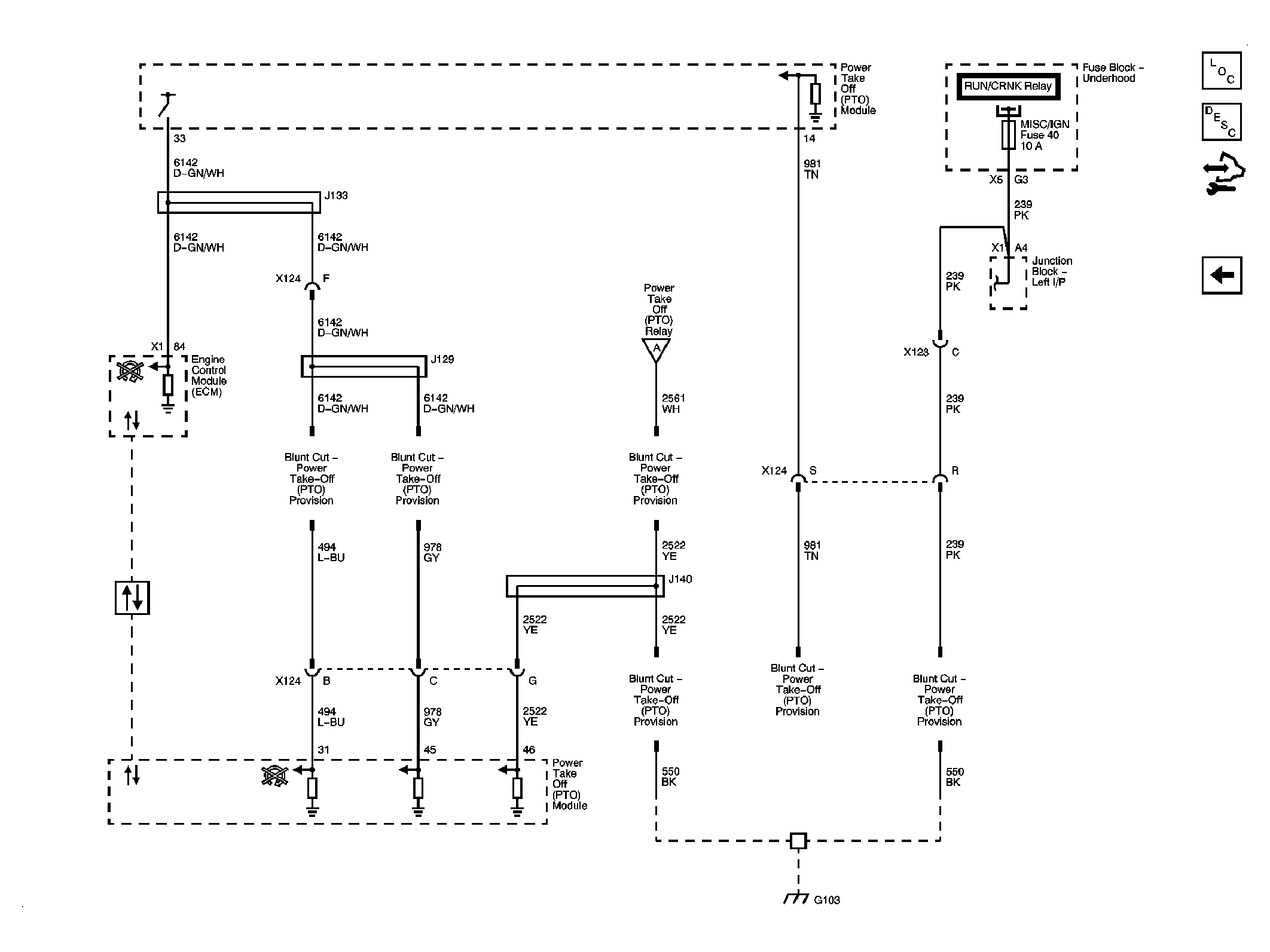

Fig 3: Wiring Provisions Schematic - 2 of 2

Courtesy of GENERAL MOTORS CORP.
