Headlamp Automatic Control Ambient Light Sensor Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

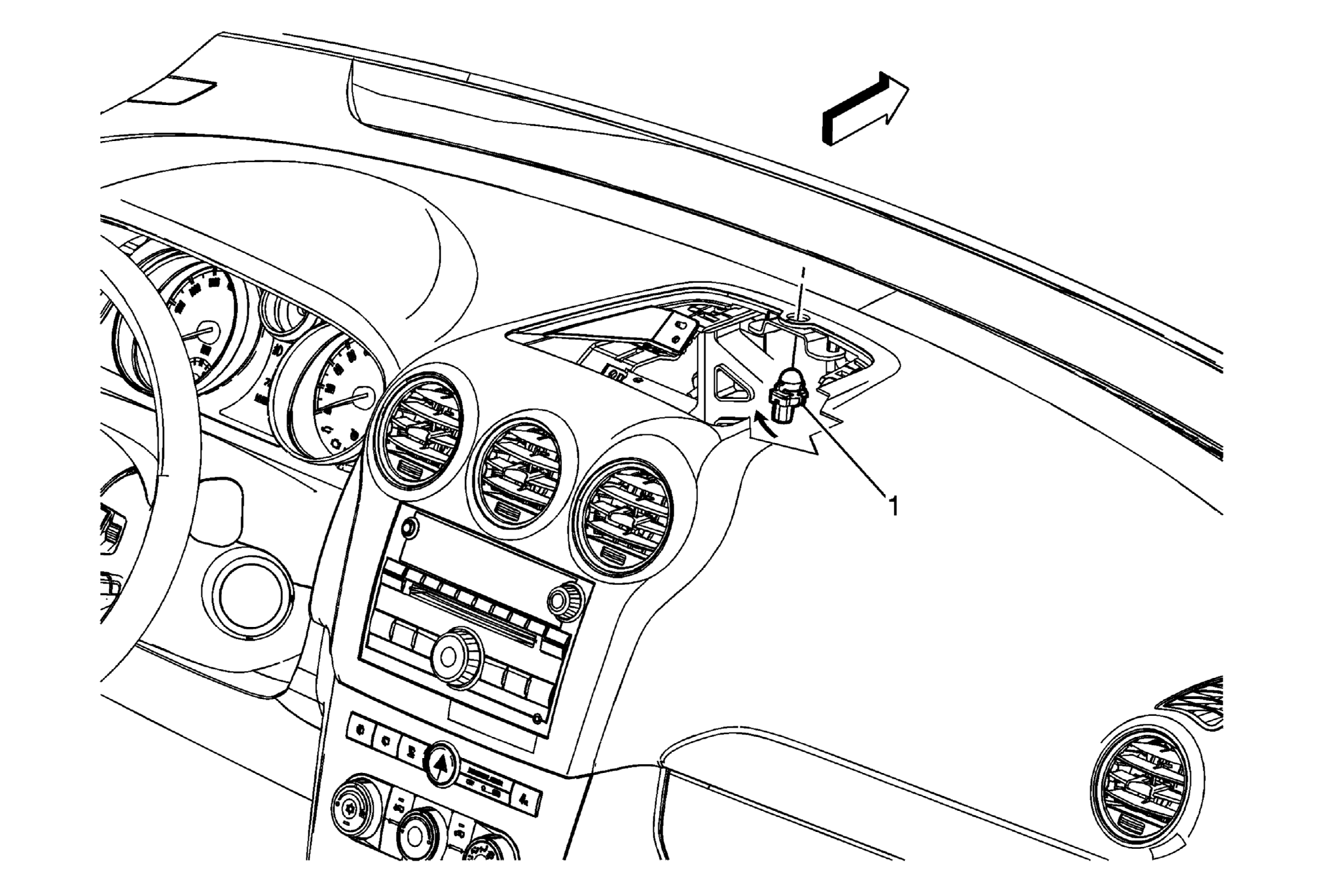

Fig 1: Headlamp Automatic Control Ambient Light Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the radio front speaker. Refer to Radio Front Speaker Replacement .
1	Headlamp Auto Control Ambient Light Sensor Assembly Procedure Twist and pull down to remove. Disconnect electrical connector.

Callout

Component Name

Preliminary Procedure:
Remove the radio front speaker. Refer to Radio Front Speaker Replacement .

Headlamp Auto Control Ambient Light Sensor Assembly

Procedure

Twist and pull down to remove.
Disconnect electrical connector.
