Digital Radio Antenna Cable Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

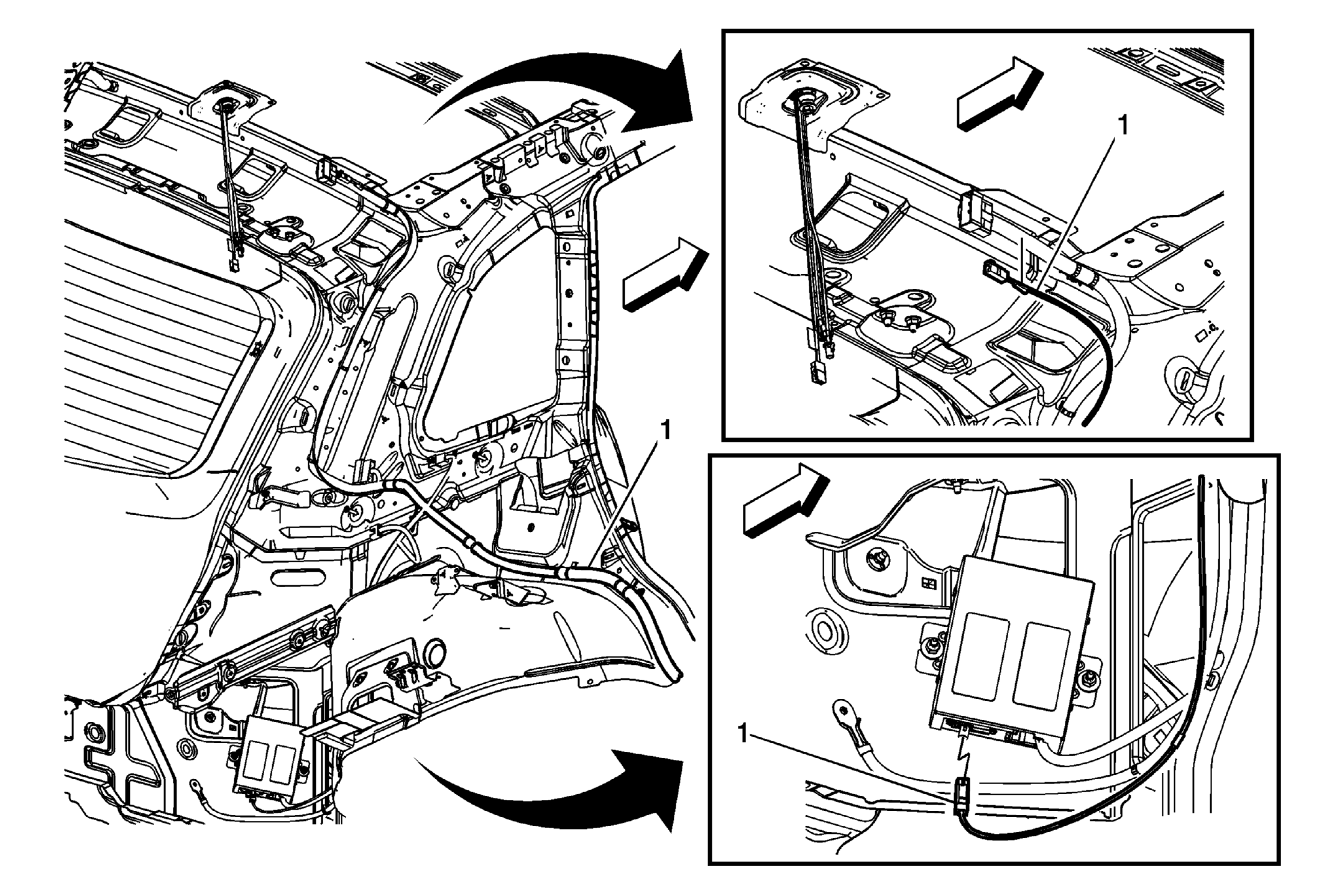

Fig 1: Digital Radio Antenna Cable

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the left rear quarter upper trim panel. Refer to Quarter Upper Trim Panel Replacement . Remove the left rear quarter lower trim panel. Refer to Quarter Lower Rear Trim Panel Replacement . Lower the rear of the headliner as needed. Refer to Headlining Trim Panel Replacement .
1	Digital Radio Antenna Cable Assembly Procedure Disconnect the electrical connectors at each end of the cable. If the cable is taped into the wiring harness then cut the ends off the old cable and route the new cable close to the old one as possible using tie straps to secure the new cable.

Callout

Component Name

Preliminary Procedures

Remove the left rear quarter upper trim panel. Refer to Quarter Upper Trim Panel Replacement .
Remove the left rear quarter lower trim panel. Refer to Quarter Lower Rear Trim Panel Replacement .
Lower the rear of the headliner as needed. Refer to Headlining Trim Panel Replacement .

Digital Radio Antenna Cable Assembly

Procedure

Disconnect the electrical connectors at each end of the cable.
If the cable is taped into the wiring harness then cut the ends off the old cable and route the new cable close to the old one as possible using tie straps to secure the new cable.
