Radio Antenna Cable Extension Cable Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

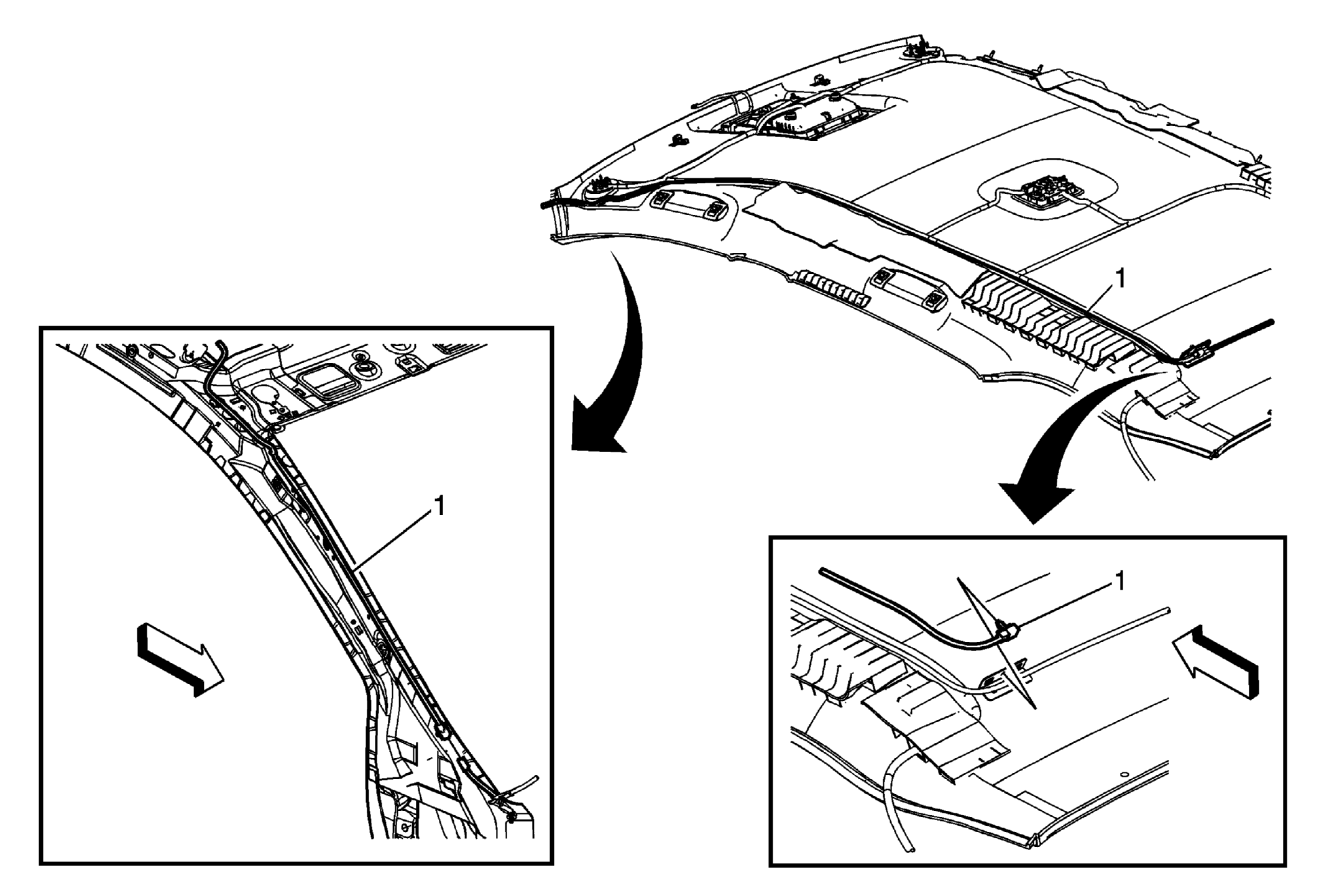

Fig 1: Radio Antenna Cable Extension Cable

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the left windshield pillar garnish molding. Refer to Windshield Pillar Garnish Molding Replacement . Lower the left side of the headliner as needed. Refer to Headlining Trim Panel Replacement .
1	Radio Antenna Cable Extension Cable Assembly Procedure: Disconnect the electrical connectors at each end of the cable.

Callout

Component Name

Preliminary Procedures

Remove the left windshield pillar garnish molding. Refer to Windshield Pillar Garnish Molding Replacement .
Lower the left side of the headliner as needed. Refer to Headlining Trim Panel Replacement .

Radio Antenna Cable Extension Cable Assembly
Procedure:
Disconnect the electrical connectors at each end of the cable.
