Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Battery Box Bolts

Courtesy of GENERAL MOTORS CORP.

Install the battery box (2) to the vehicle.

CAUTION: Refer to Fastener Caution .

Install the battery box bolts (1) and tighten to 20 N.m (15 lb ft).
Connect any previously disconnected electrical harnesses to the battery box.

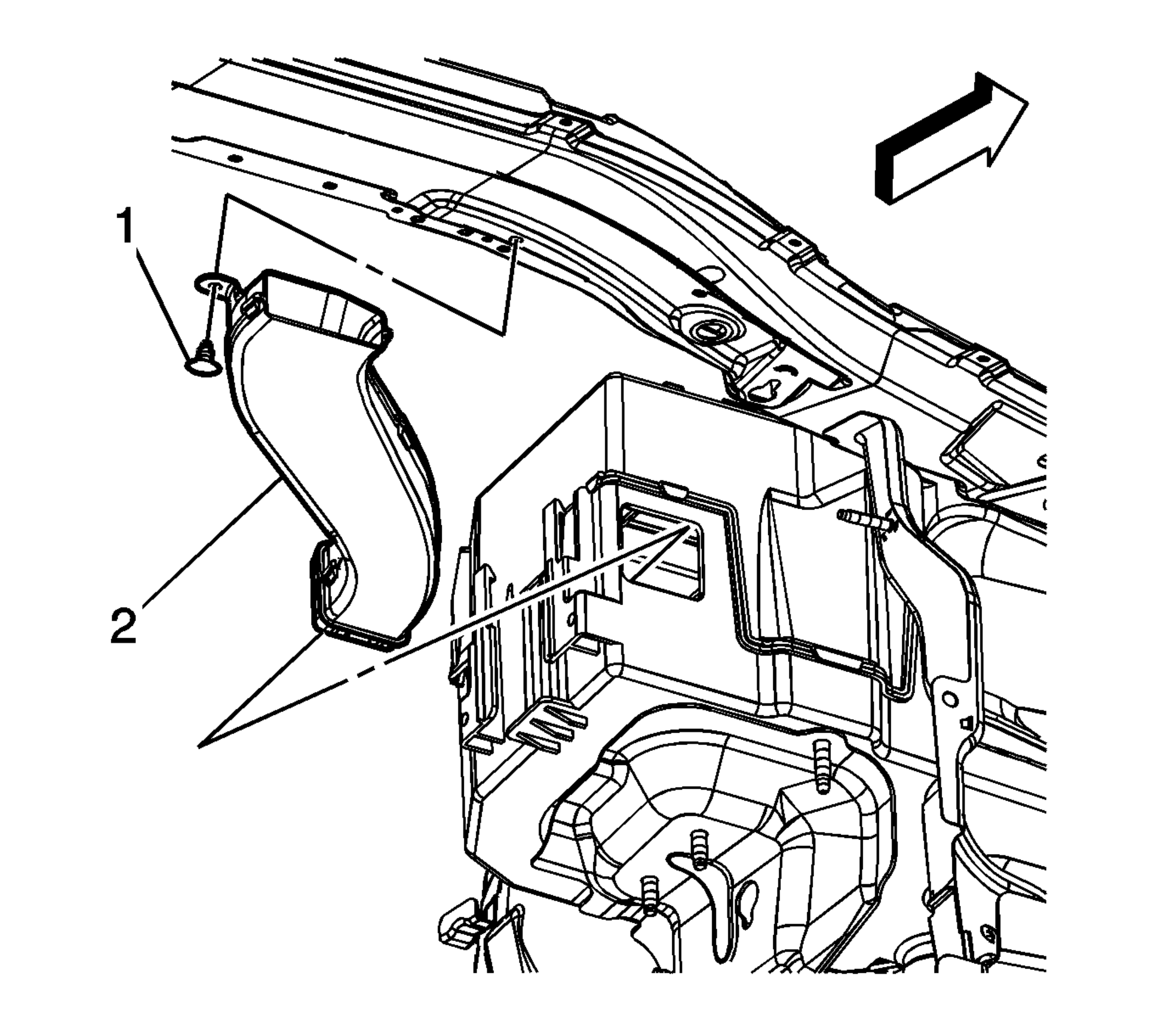

Fig 2: Battery Cable Cooling Air Inlet Duct Plastic Retainer

Courtesy of GENERAL MOTORS CORP.

Install the battery cable cooling air inlet duct (2).
Install the battery cable cooling air inlet duct plastic retainer (1).
Install the battery. Refer to Battery Replacement .
