Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the generator to the vehicle.

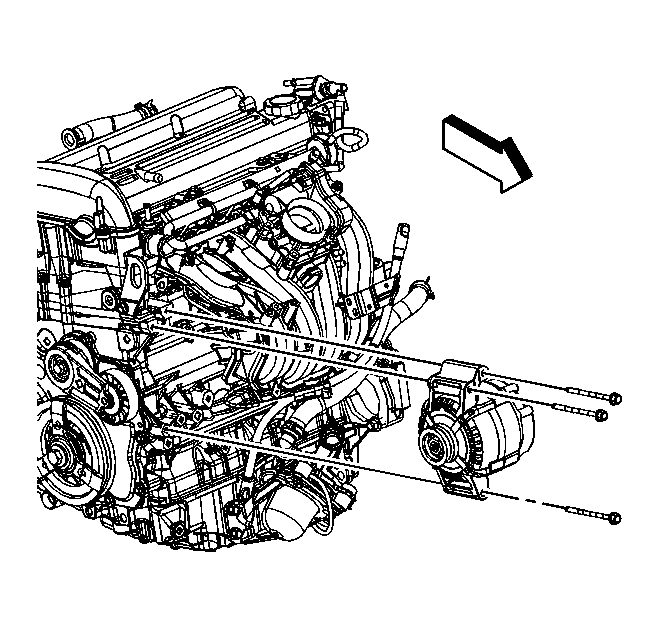

    2. Fig 1: Identifying Generator
    GM1650517Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  2. Install the generator bolts and tighten to 22 N.m (16 lb ft).

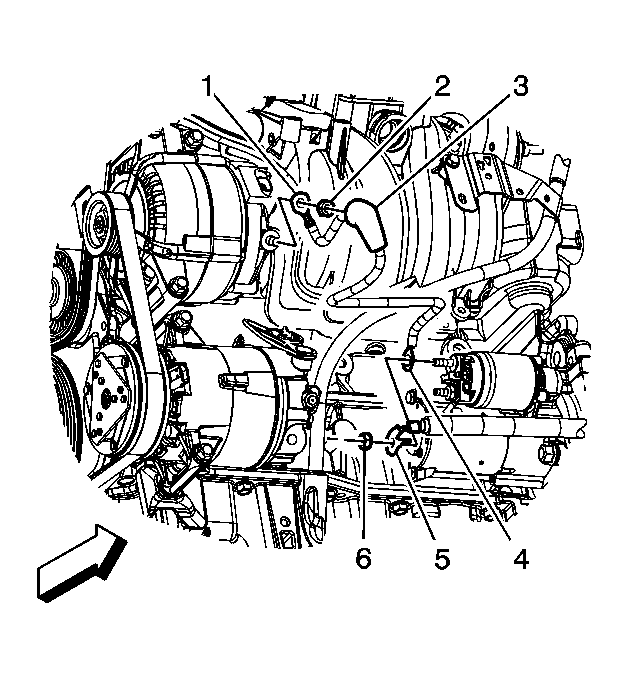

    3. Fig 2: View Of Starter Solenoid Wire Terminal And Generator
    GM1656132Courtesy of GENERAL MOTORS CORP.
  3. Install the engine harness terminal (1) to the generator.
  4. Install the generator terminal nut (2) and tighten to 15 N.m (11 lb ft).
  5. Position the generator terminal protective boot (3).

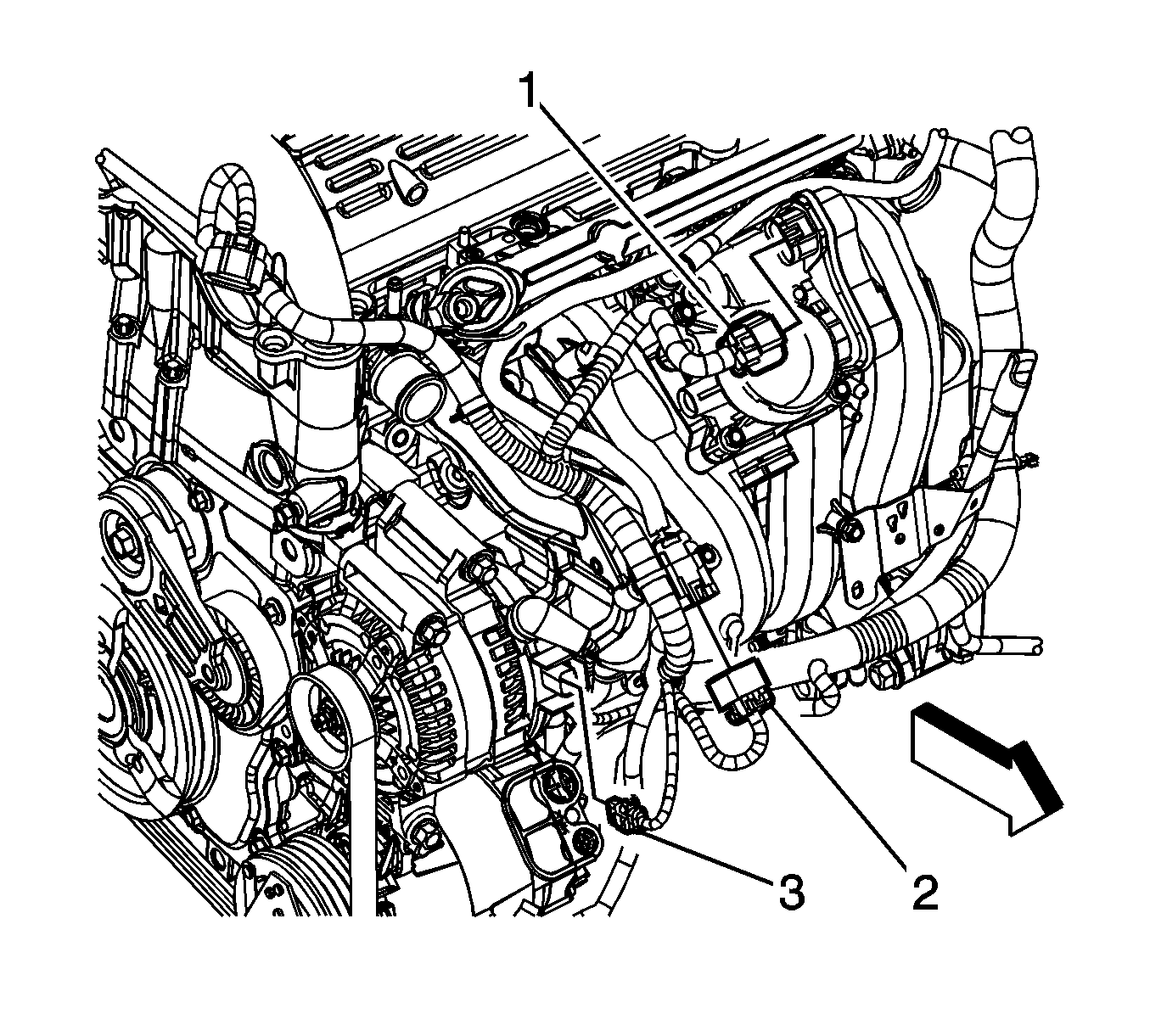

    6. Fig 3: Identifying Engine Harness Electrical Connectors
    GM1647528Courtesy of GENERAL MOTORS CORP.
  6. Connect the generator electrical connector (3).
  7. Install the drive belt. Refer to Drive Belt Replacement (LE5) or Drive Belt Replacement (LAT) .
  8. Connect battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
