Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

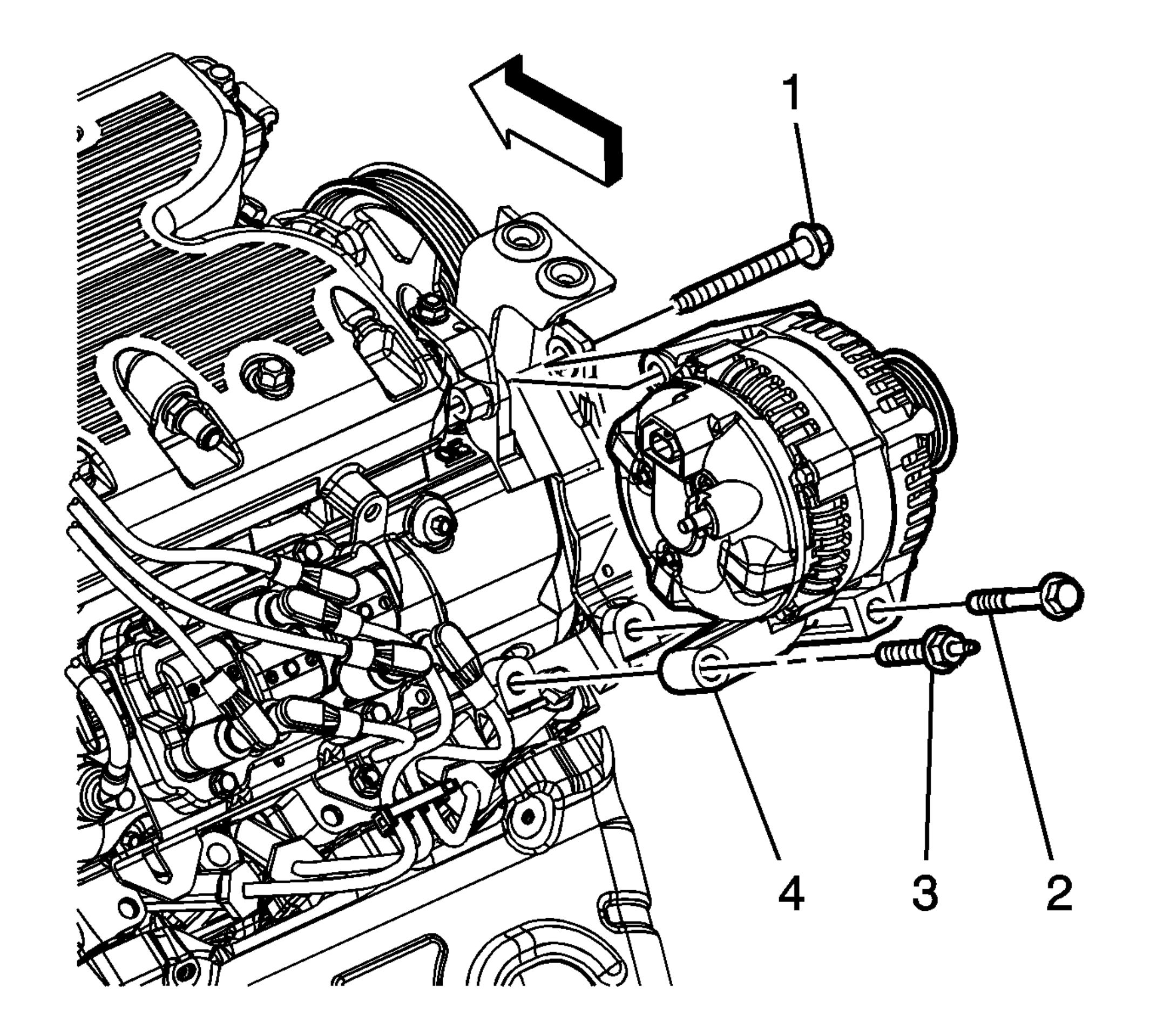

    Fig 1: Generator Pivot Bolt
    GM1877404Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  1. Install the generator (4) to the vehicle.
    2. NOTE: Hand start all bolts before finalizing any torques.
  2. Install the generator stud (3) and tighten to 50 N.m (37 lb ft).
  3. Install the generator bolt (2) and tighten to 50 N.m (37 lb ft).
  4. Install the generator pivot bolt (1) and tighten to 50 N.m (37 lb ft).

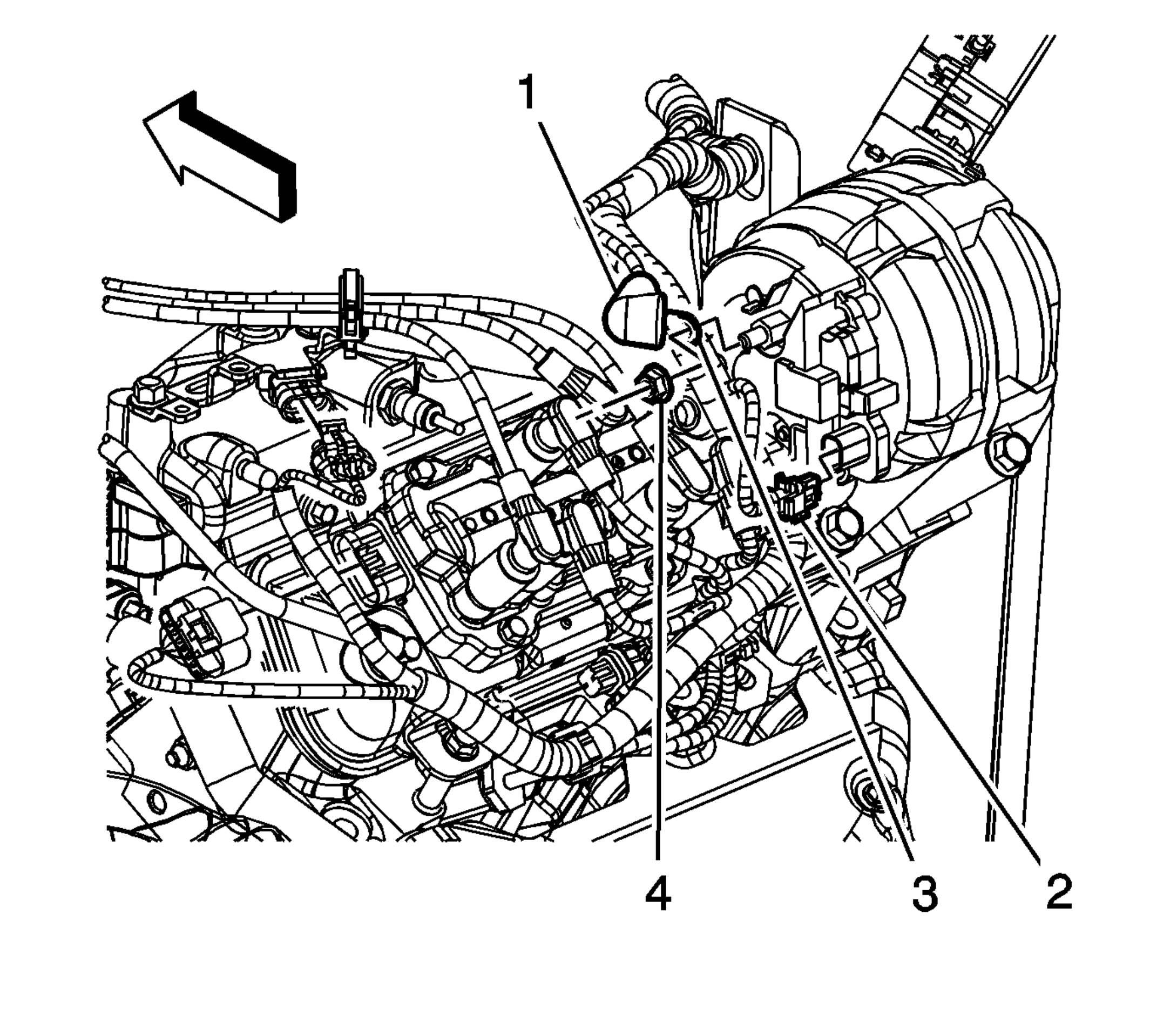

    5. Fig 2: Generator Terminal Protective Boot
    GM1877405Courtesy of GENERAL MOTORS CORP.
  5. Connect the generator electrical connector (2).
  6. Install the engine harness terminal (3) to the generator.
  7. Install the generator terminal nut (4) and tighten to 15 N.m (11 lb ft).
  8. Position the generator terminal protective boot (1).
  9. Install the drive belt. Refer to Drive Belt Replacement .
  10. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
