Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

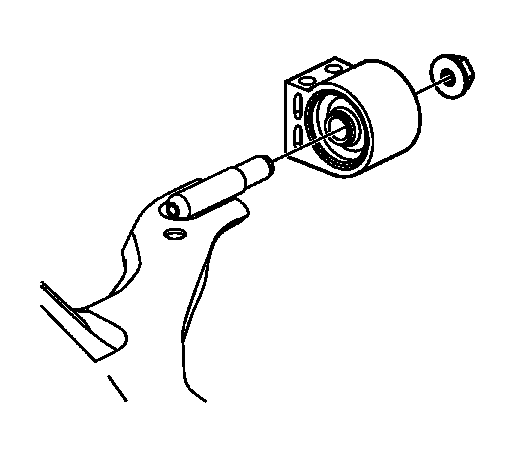

Fig 1: View Of Rear Bushing & Nut

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

Install the rear bushing to the lower control arm. Tighten the nut to 150 N.m (110 lb ft).
Install the lower control arm. Refer to Lower Control Arm Replacement .
Install the front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
Lower the vehicle.
