Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the control arm to the cradle/frame.

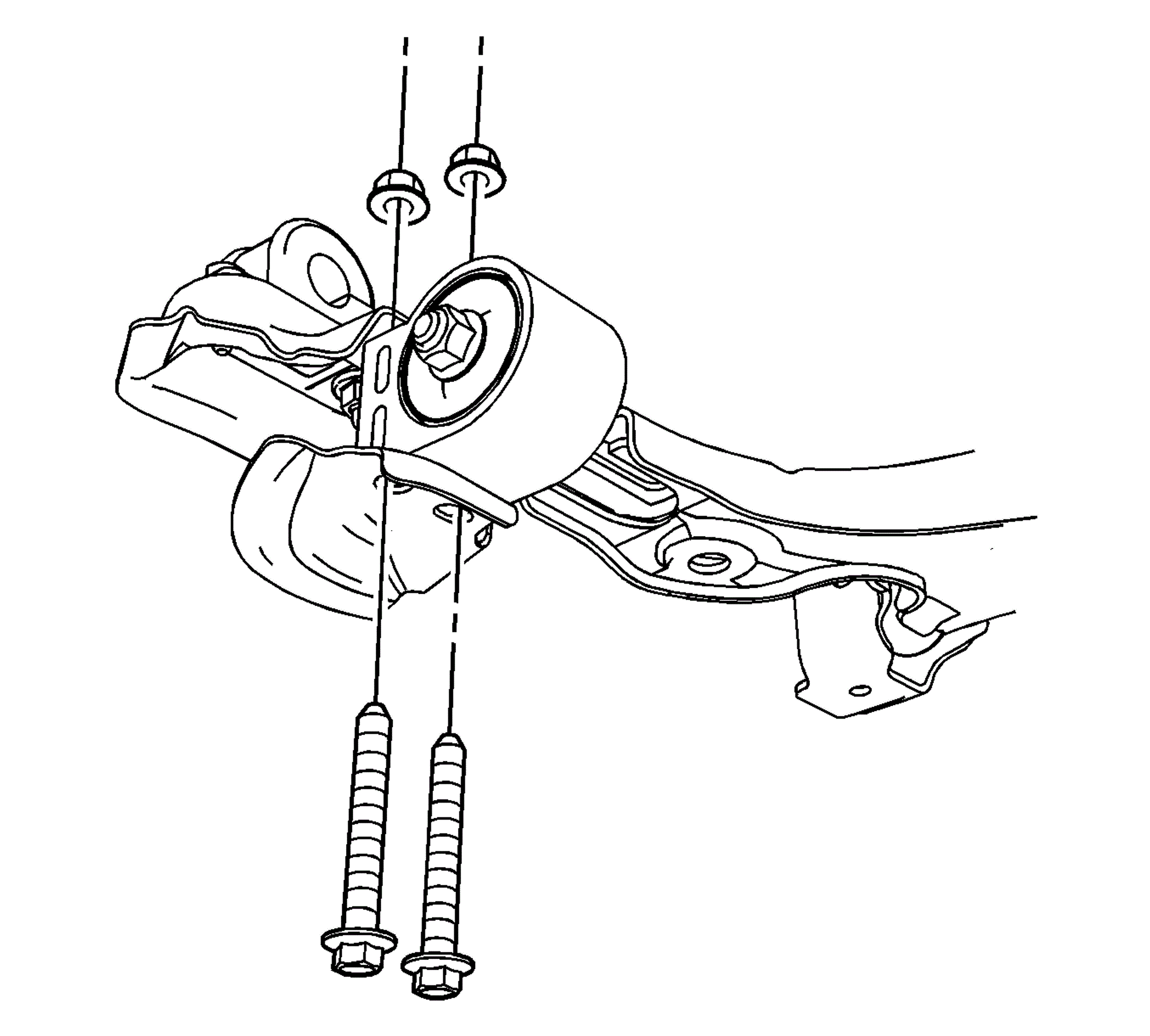

    2. Fig 1: View Of Control Arm-To-Frame Rear Bolts & Nuts
    GM1826542Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  2. Install new control arm-to-frame rear bolts and nuts and tighten to 70 N.m (52 lb ft).

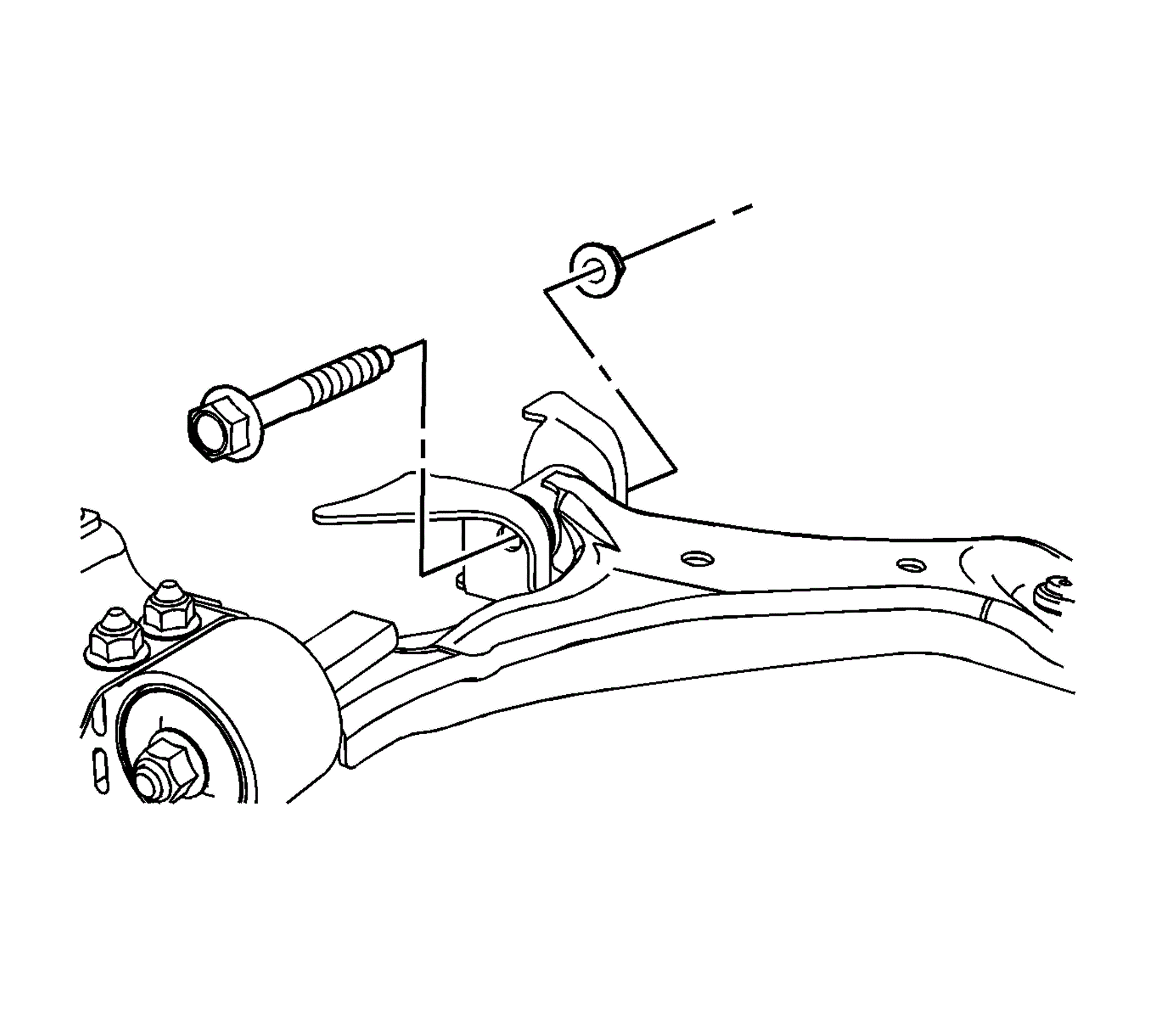

    3. Fig 2: View Of Control Arm-To-Frame Front Bolt & Nut
    GM1826495Courtesy of GENERAL MOTORS CORP.
  3. Install a new arm-to-frame front bolt and nut. Tighten the control arm front bolt and nut to 115 N.m 85 lb ft) plus 90 degrees.

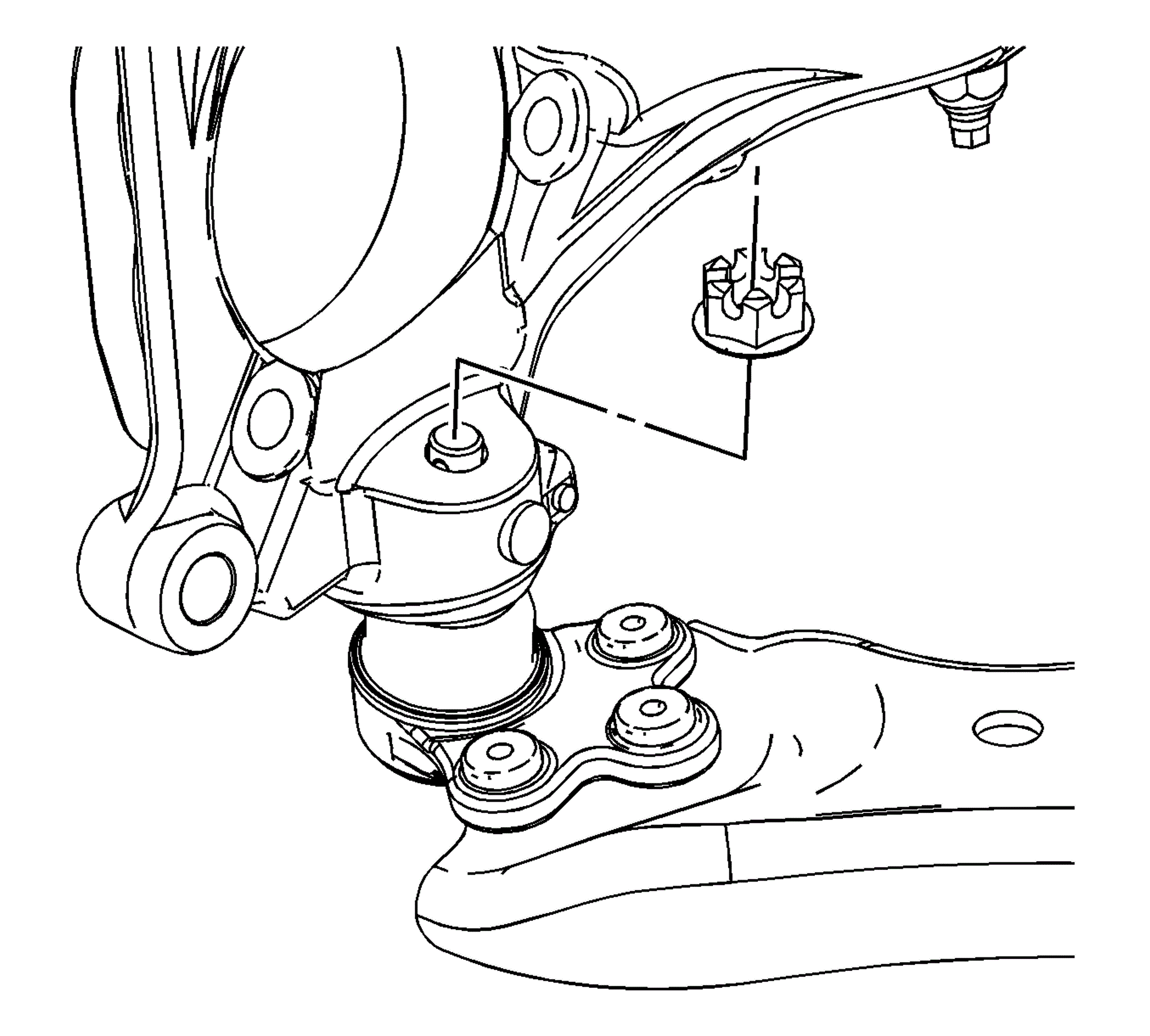

    4. Fig 3: View Of Ball Joint & Knuckle
    GM1826244Courtesy of GENERAL MOTORS CORP.
  4. Position the control arm ball stud into the steering knuckle and install the nut. Tighten the nut to 40 N.m (30 lb ft).

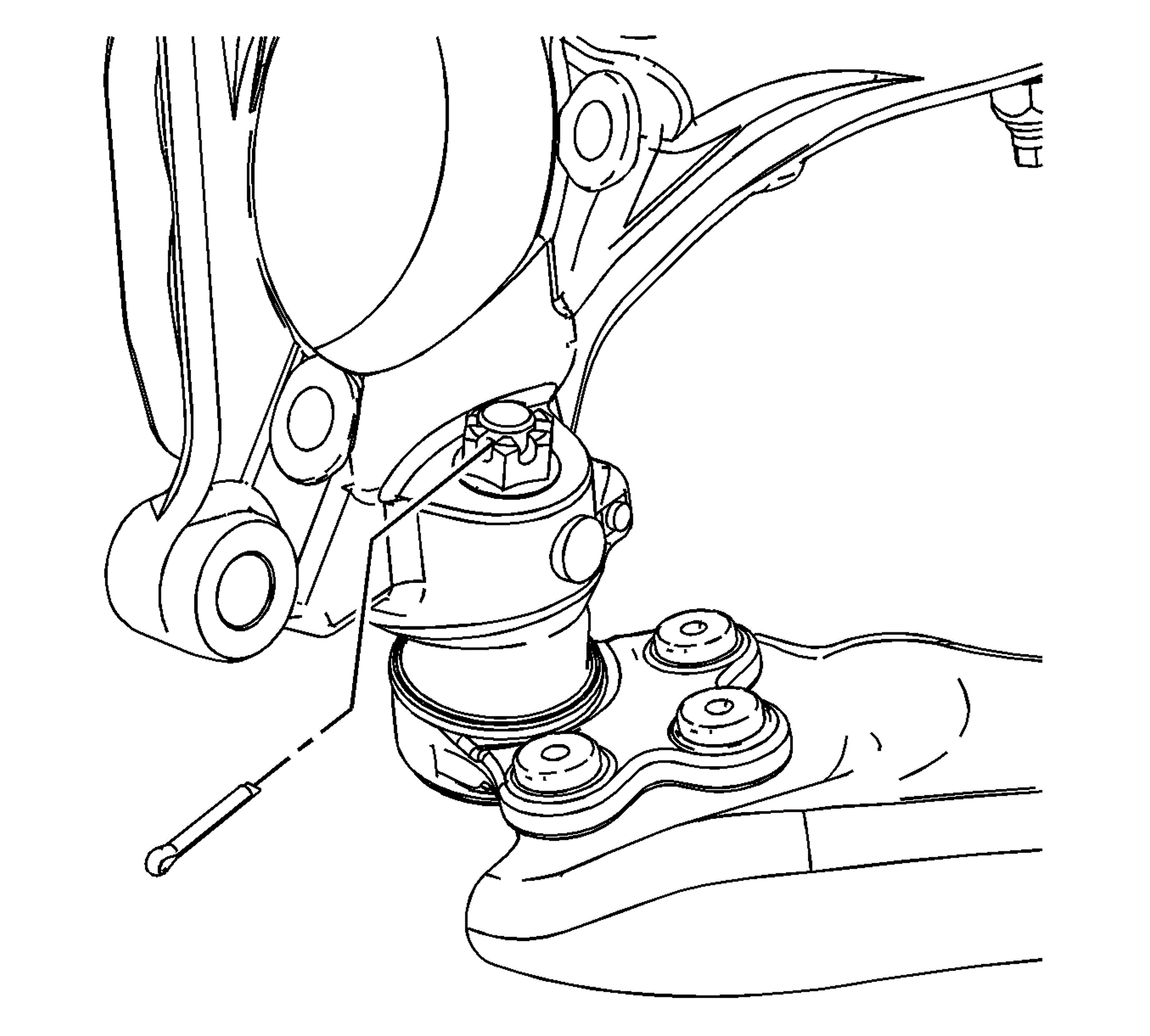

    5. Fig 4: Identifying Lower Ball Joint Cotter Pin
    GM1826186Courtesy of GENERAL MOTORS CORP.
    NOTE:
    • Do not loosen the castle nut, only tighten to align the ball stud slot.
    • Ensure that the cotter pin ends do not contact the antilock brake system (ABS) sensor harness or drive axle.
  5. Continue to tighten the nut only enough to align the castle nut slots with the ball stud, install a new cotter pin.
  6. Install the wheel and tire assembly. Refer to Tire and Wheel Removal and Installation .
  7. Verify front end alignment. Refer to Wheel Alignment Specifications .
  8. Lower the vehicle.
