Front Seat Heater Control Module Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

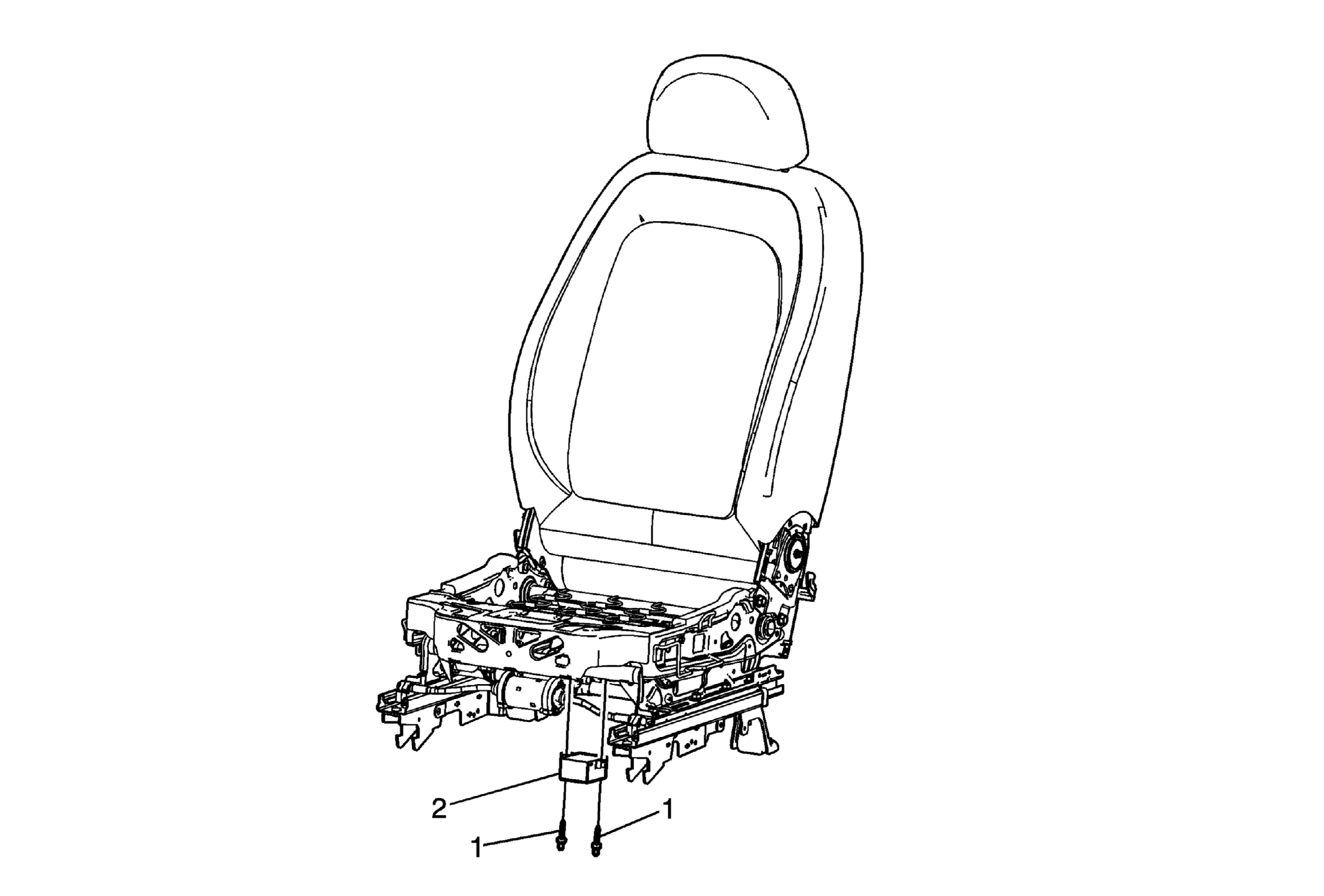

Fig 1: Front Seat Heater Control Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front seat. Refer to Front Seat Replacement - Bucket . Remove the front seat cushion cover and pad. Refer to Front Seat Cushion Cover and Pad Replacement (without KA1) or Front Seat Cushion Cover and Pad Replacement (with KA1) .
1	Front Heated Seat Control Module Rivets (Qty: 2) Procedure Drill out the head of the rivet to remove the module. Install new rivets for installation.
2	Front Heated Seat Control Module Procedure Disconnect the electrical connector. Check to make sure the heated seats are functioning properly.

Callout

Component Name

Preliminary Procedures

Remove the front seat. Refer to Front Seat Replacement - Bucket .
Remove the front seat cushion cover and pad. Refer to Front Seat Cushion Cover and Pad Replacement (without KA1) or Front Seat Cushion Cover and Pad Replacement (with KA1) .

Front Heated Seat Control Module Rivets (Qty: 2)

Procedure

Drill out the head of the rivet to remove the module.
Install new rivets for installation.

Front Heated Seat Control Module

Procedure

Disconnect the electrical connector.
Check to make sure the heated seats are functioning properly.
