Fan Control Module Replacement (HP5)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

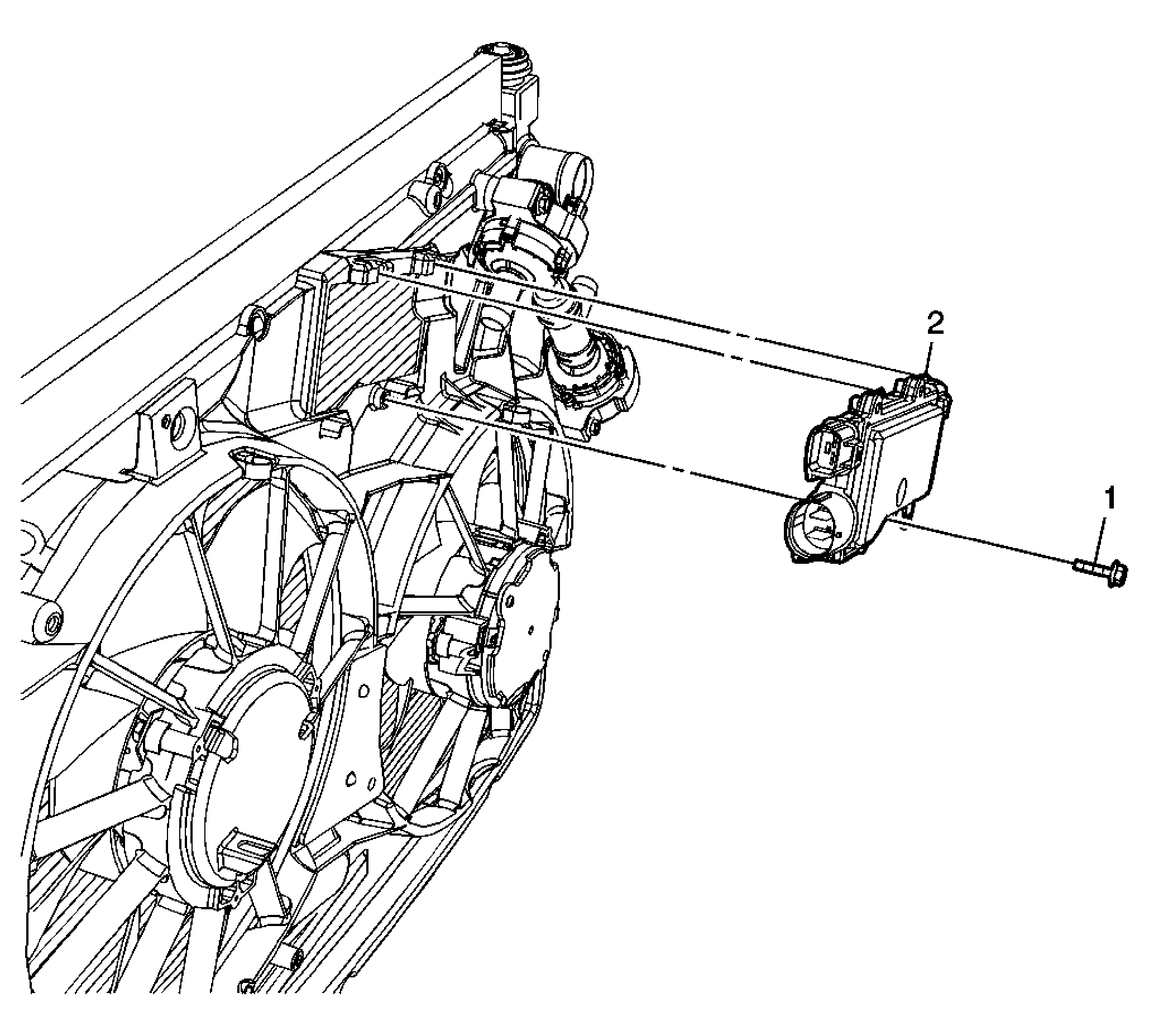

Fig 1: Fan Control Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement (LCS) Remove underhood electrical block. Refer to Underhood Electrical Center or Junction Block Replacement (HP5) Disconnect electrical connectors from cooling fan control module.
1	Cooling Fan Control Module Bolt CAUTION: Refer to Fastener Caution . Tighten: 8 N.m (71 lb in)
2	Cooling Fan Control Module

Callout

Component Name

Preliminary Procedures

Remove fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement (LCS)
Remove underhood electrical block. Refer to Underhood Electrical Center or Junction Block Replacement (HP5)
Disconnect electrical connectors from cooling fan control module.

Cooling Fan Control Module Bolt

CAUTION: Refer to Fastener Caution .

Tighten: 8 N.m (71 lb in)

Cooling Fan Control Module
