Fuel Fill Pipe

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

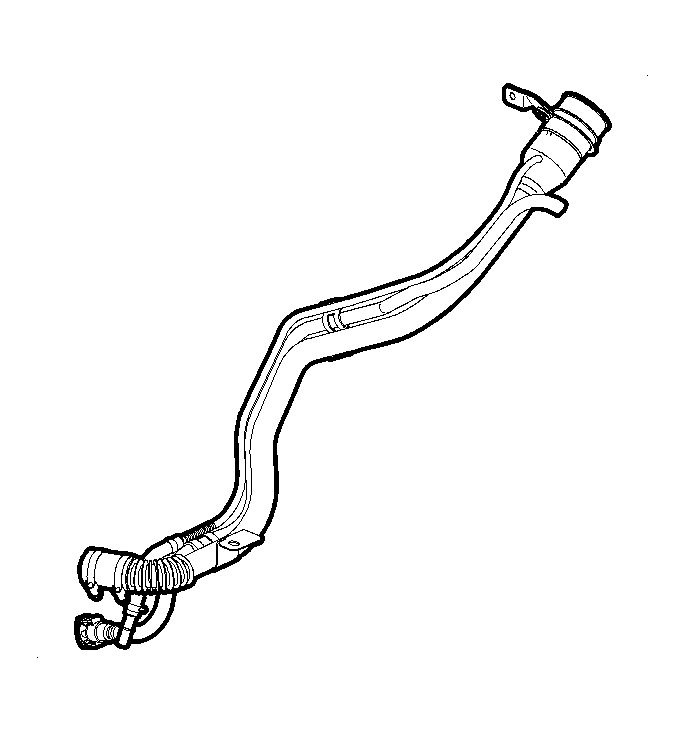

Fig 1: View Of Fuel Fill Pipe

Courtesy of GENERAL MOTORS CORP.

The fuel fill pipe has a built-in restrictor in order to prevent refueling with leaded fuel.
