Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

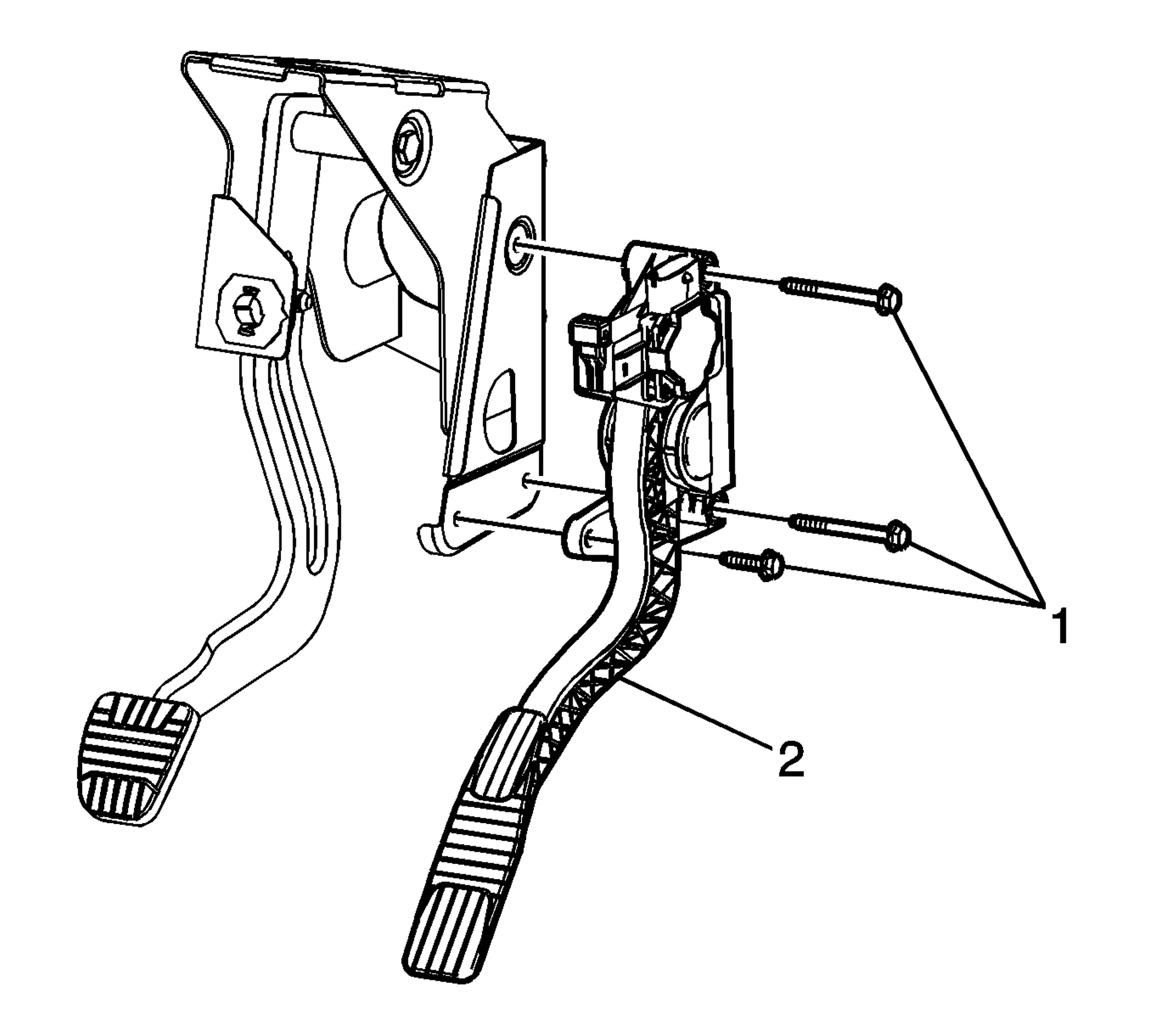

    Fig 1: APP Sensor And Bolts
    GM1883847Courtesy of GENERAL MOTORS CORP.
  1. Position the APP sensor (2) against the brake pedal assembly.
    2. CAUTION: Refer to Fastener Caution
  2. Install the APP sensor bolts (1) and tighten to 10 N.m (89 lb in).

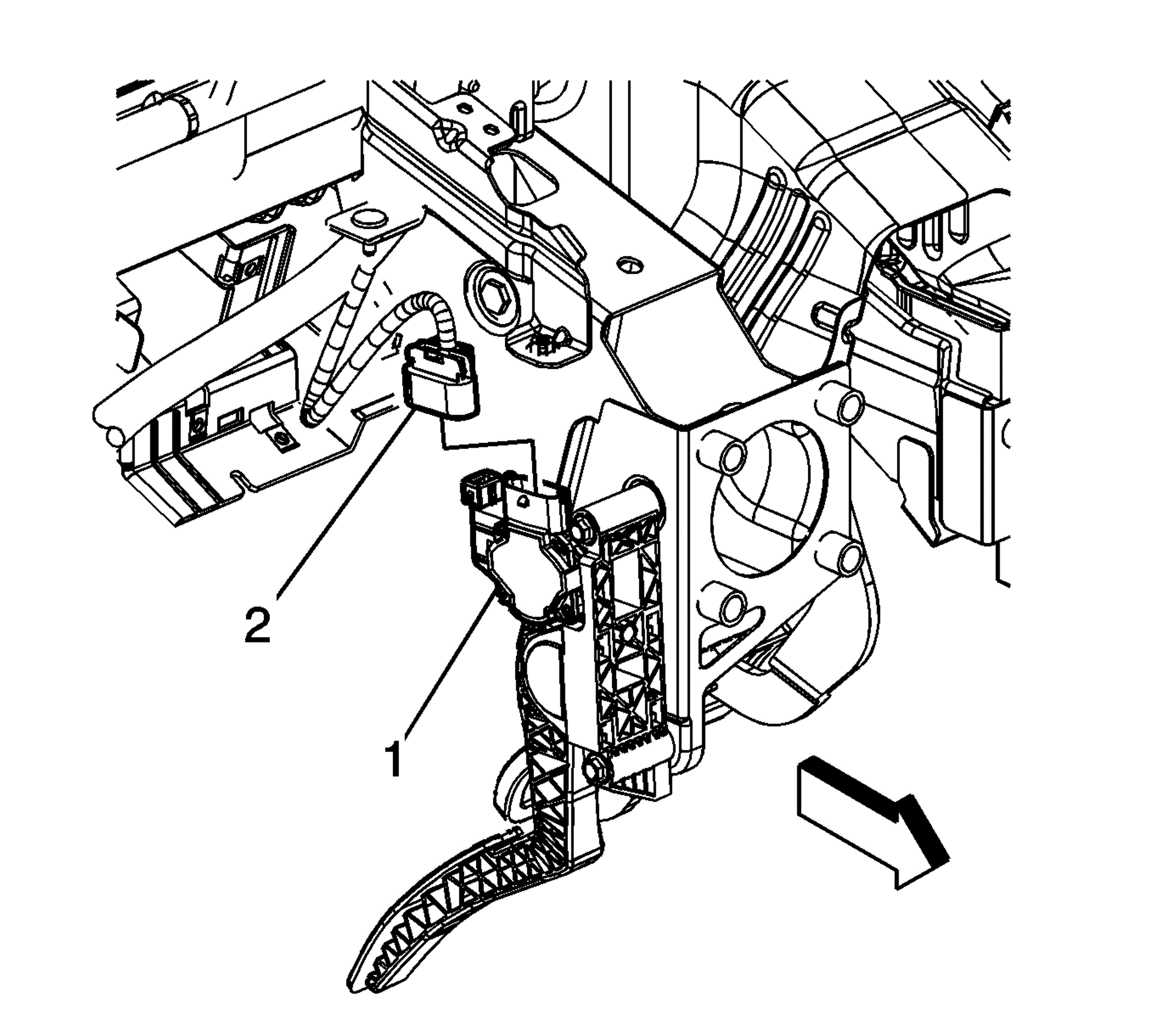

    3. Fig 2: Accelerator Pedal Position Sensor
    GM1883846Courtesy of GENERAL MOTORS CORP.
  3. Connect the instrument panel wiring harness electrical connector (2) to the APP sensor (1).
  4. Install the driver knee bolster reinforcement. Refer to Driver Knee Bolster Reinforcement Replacement .
