Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

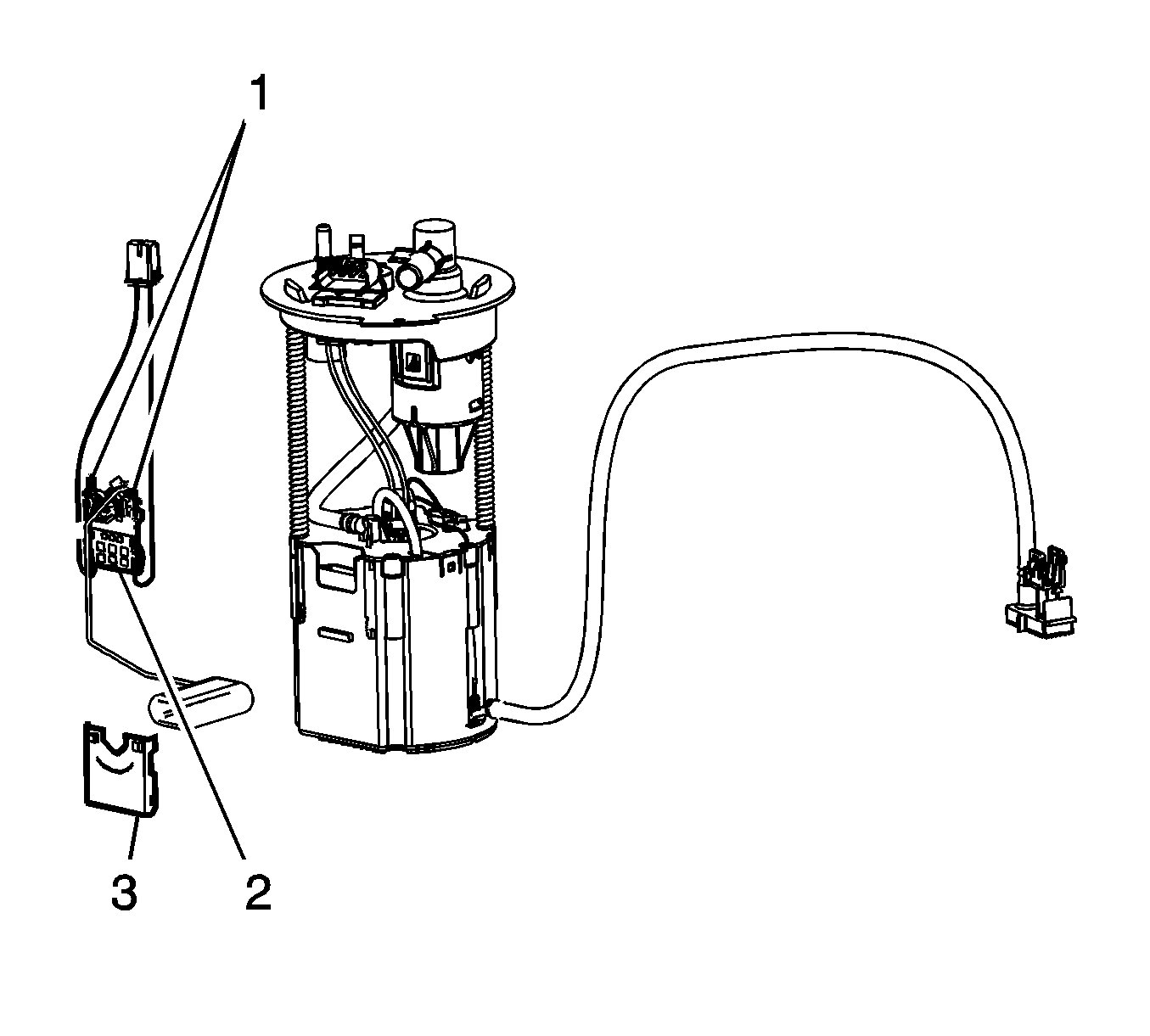

Fig 1: Fuel Level Sensor Retainers

Courtesy of GENERAL MOTORS CORP.

Install the fuel level sensor cover (3) to the fuel level sensor (2).
Ensure that the fuel level sensor retainers (1) are fully engaged to the cover.
Position the fuel level sensor to the fuel tank fuel pump module and slide the sensor down into position.

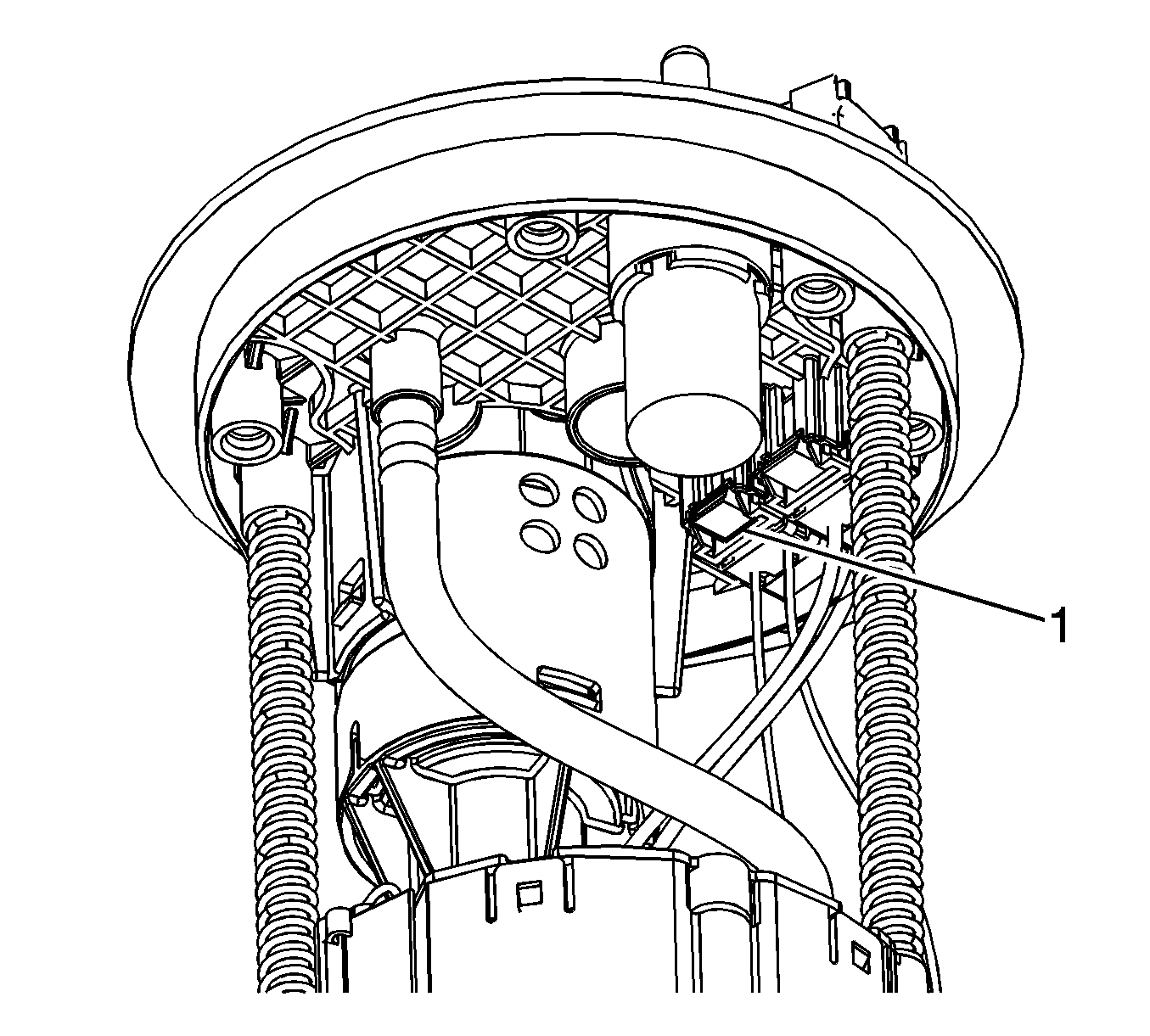

Fig 2: Fuel Level Sensor Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Connect the fuel level sensor electrical connector (1) to the fuel tank fuel pump module cover.

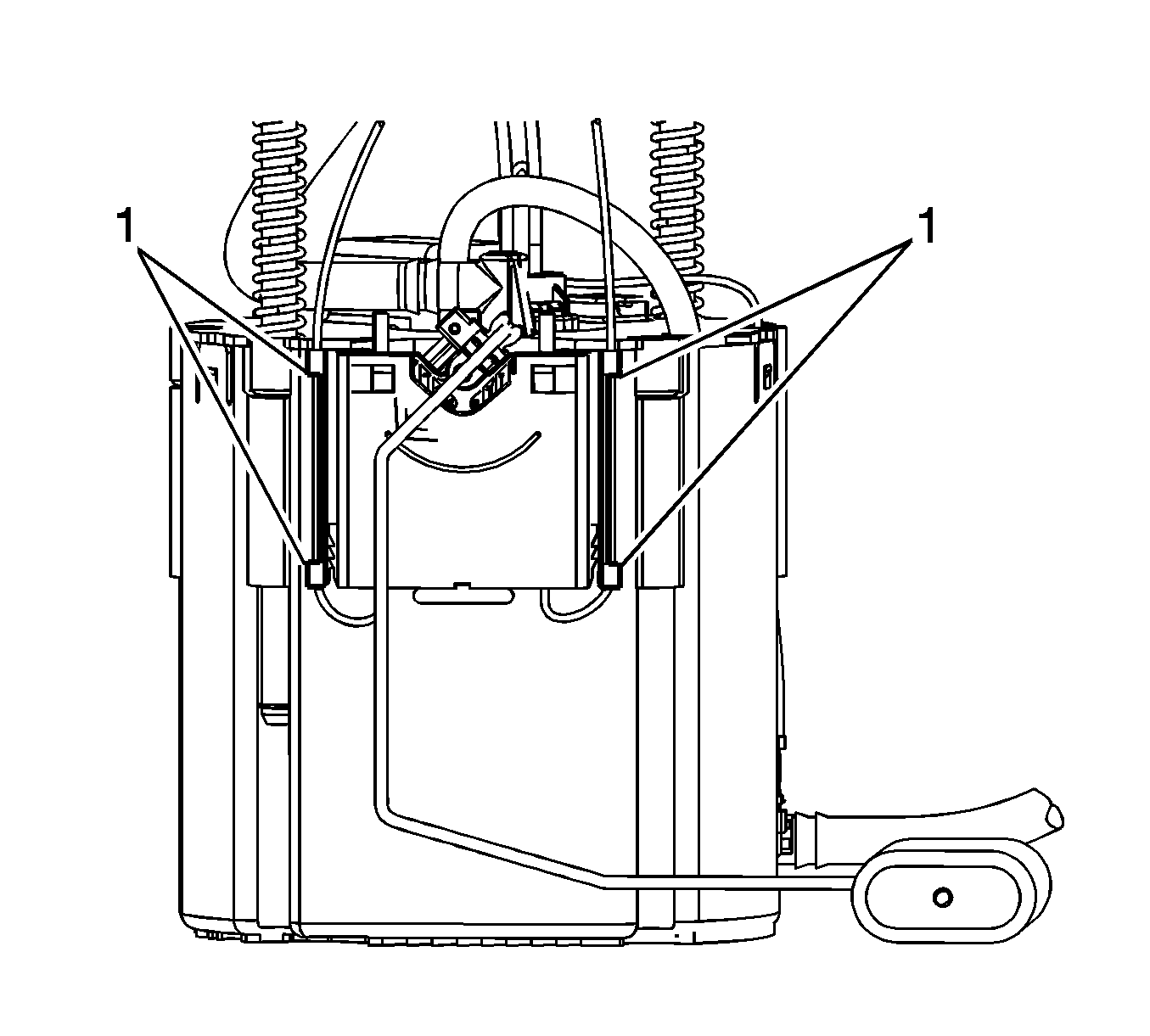

Fig 3: Fuel Tank Fuel Pump Module Reservoir Retaining Features

Courtesy of GENERAL MOTORS CORP.

Install the fuel level sensor wiring behind the retaining features (1) molded into the fuel tank fuel pump module reservoir.
Install the fuel pump module. Refer to Fuel Tank Fuel Pump Module Replacement .
