Removal Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

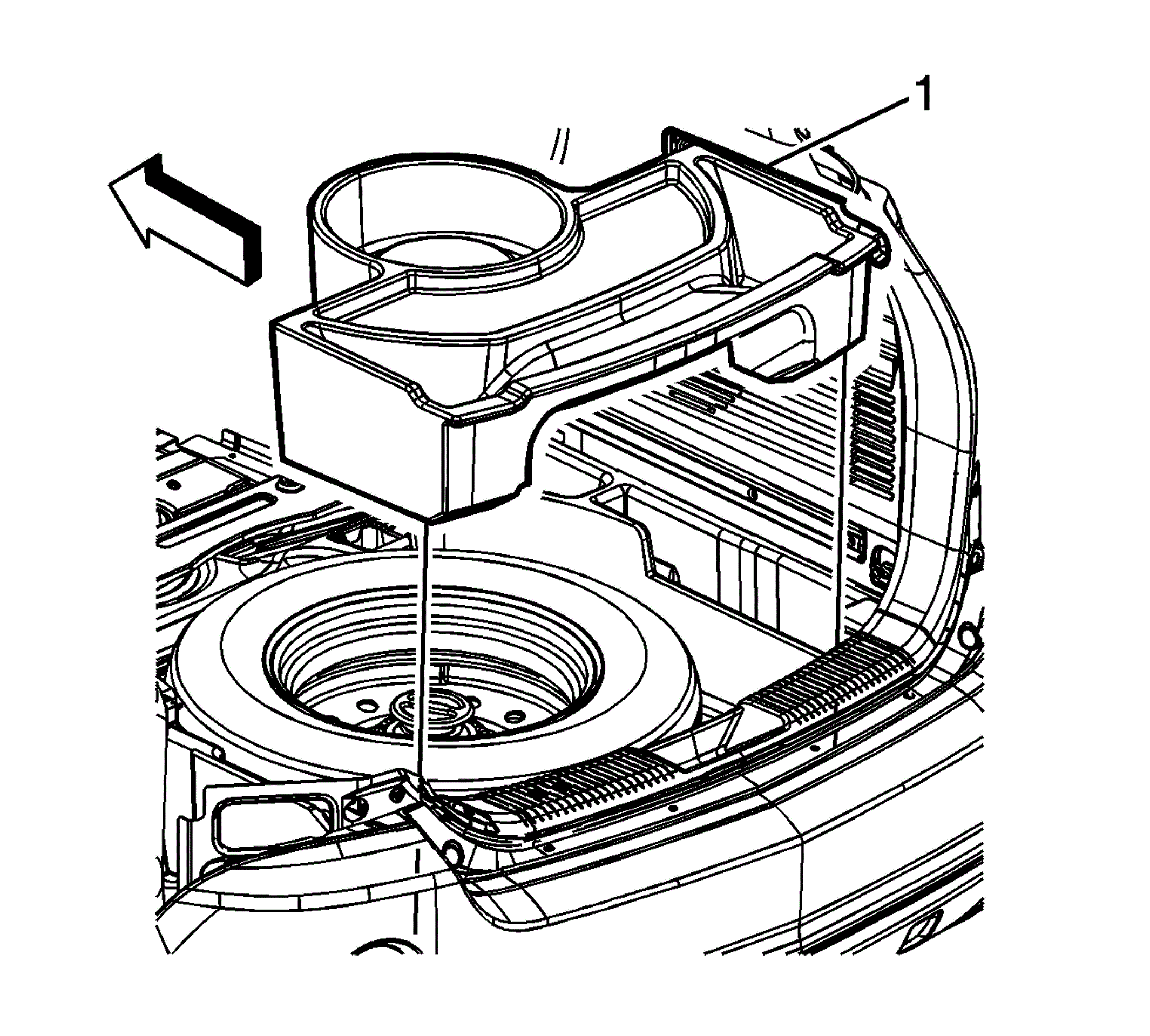

Fig 1: Spare Tire Spacer

Courtesy of GENERAL MOTORS CORP.

Open the rear compartment floor stowage compartment cover.
Remove the spare tire spacer (1).
Remove the rear compartment floor stowage compartment. Refer to Rear Compartment Floor Stowage Compartment Replacement (HP7) or Rear Compartment Floor Stowage Compartment Replacement (Without HP7) .

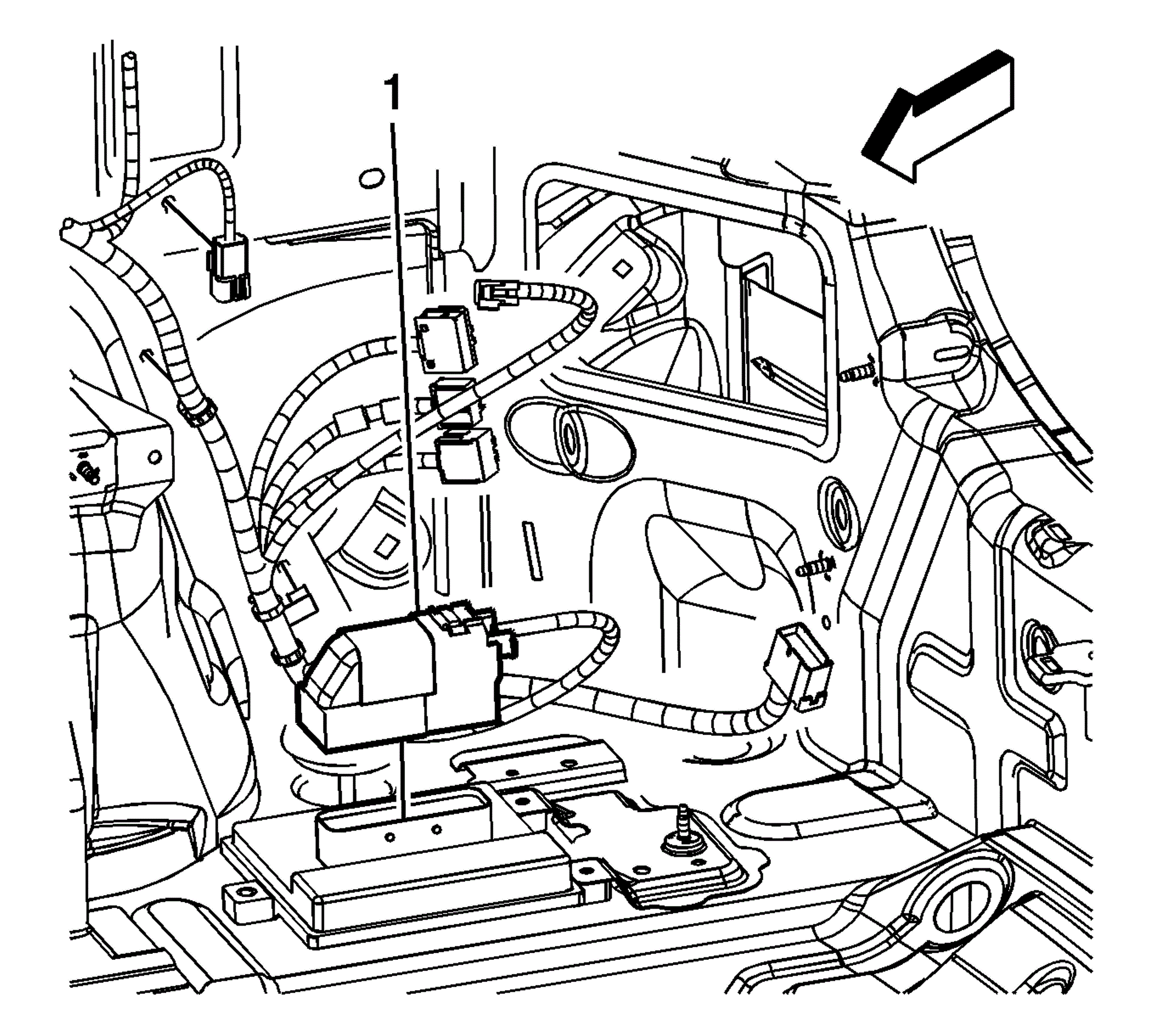

Fig 2: Body Wiring Harness Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Disconnect the body wiring harness electrical connector (1) from the fuel pump flow control module.

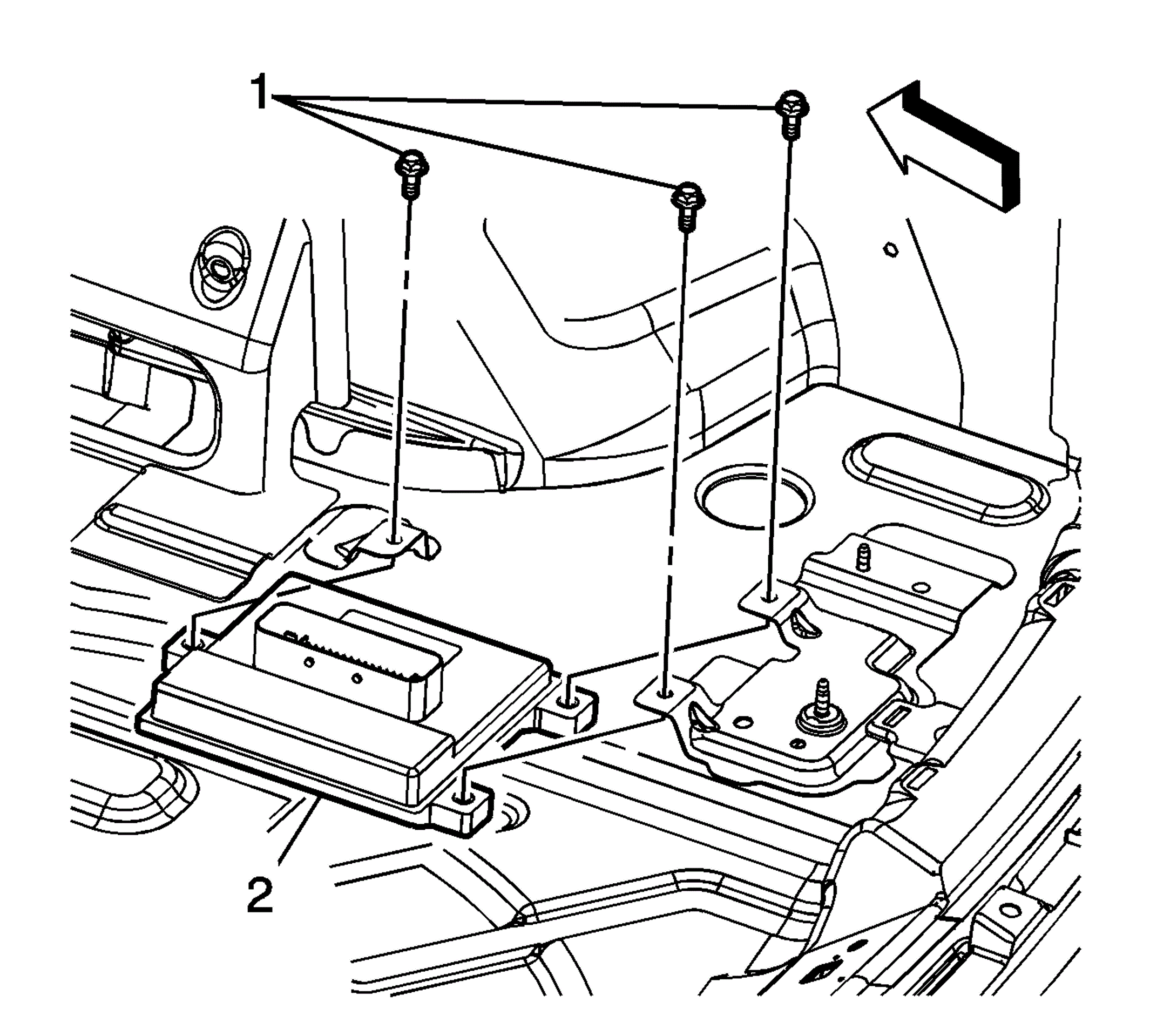

Fig 3: Fuel Pump Flow Control Module Bolts

Courtesy of GENERAL MOTORS CORP.

Remove the fuel pump flow control module bolts (1).
Slide the fuel pump flow control module towards the driver side of the vehicle.
Remove the fuel pump flow control module (2) from the vehicle.
