Ambient Light Sensor Replacement

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

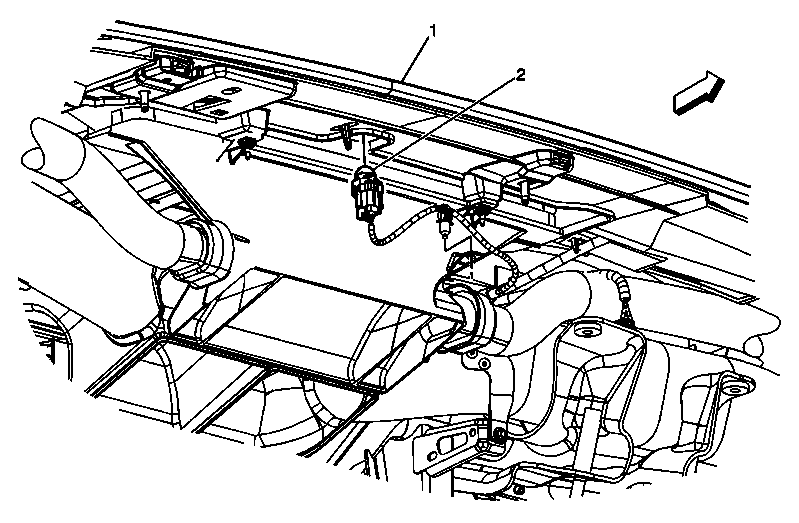

Fig 1: Ambient Light Sensor
GM1683769Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Instrument Panel Trim Panel
Refer to Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Replacement (with RPO SLT) or Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Replacement (without RPO SLT) .
2 Headlamp Auto Control Ambient Light Sensor Assembly
Tip:
  1. Twist and pull down to remove.
  2. Disconnect electrical connector.
