Antilock Brake System Schematics
WARNING:
This page is about a different car, the 2010 GMC Sierra and 2010 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

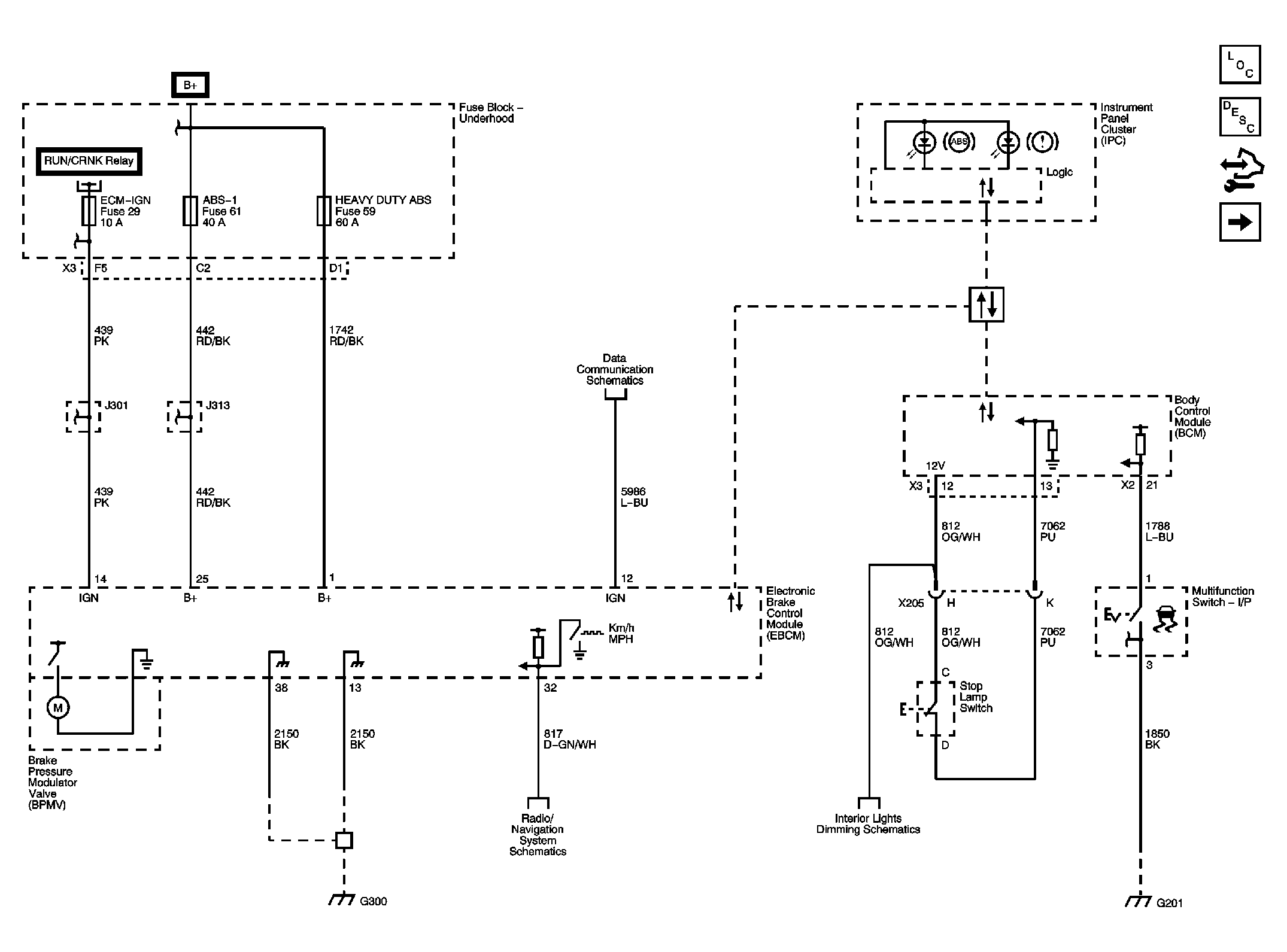

Fig 1: Power, Ground, Serial Data & Traction Controls
Courtesy of GENERAL MOTORS CORP.

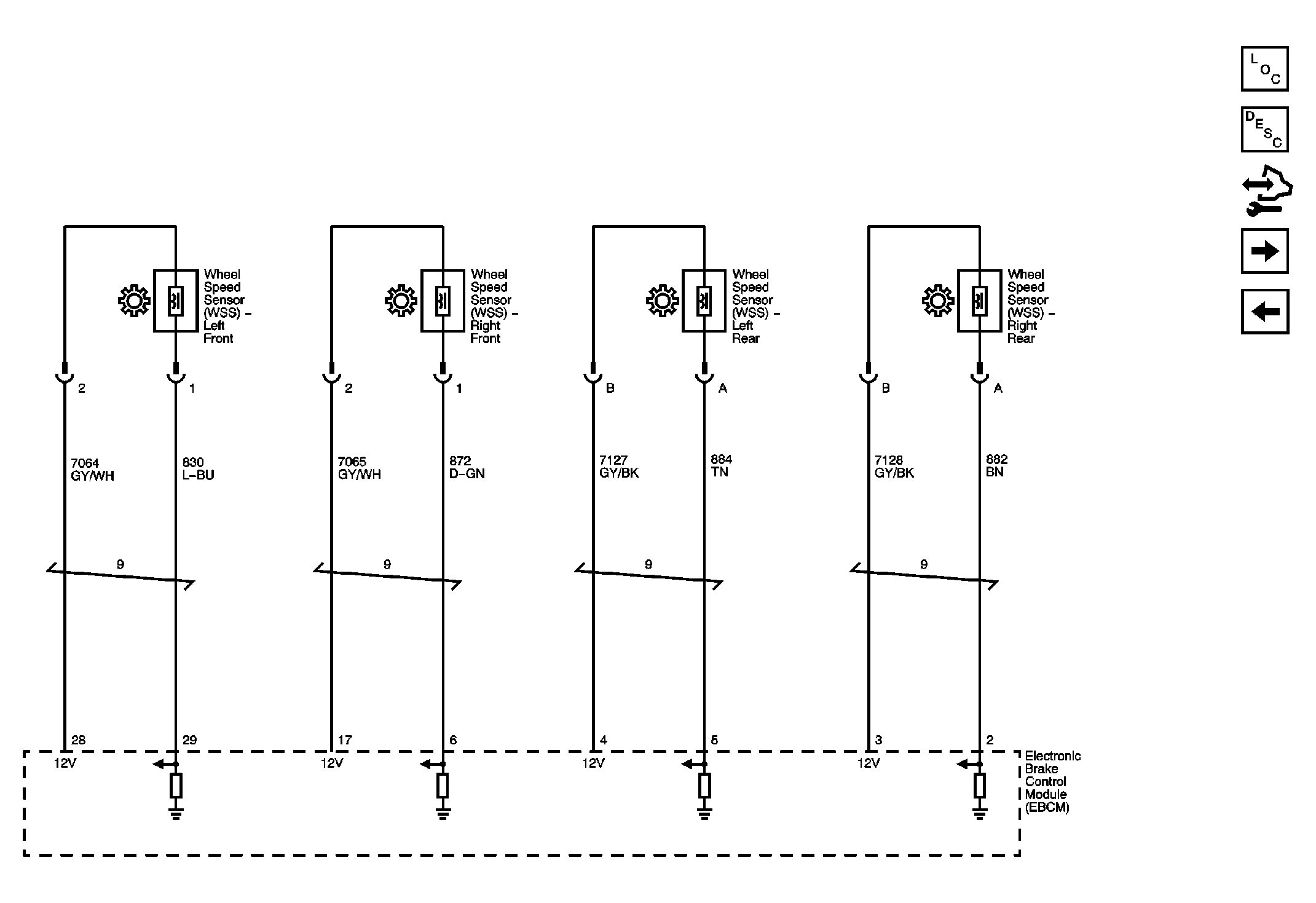

Fig 2: Wheel Speed Signals
Courtesy of GENERAL MOTORS CORP.

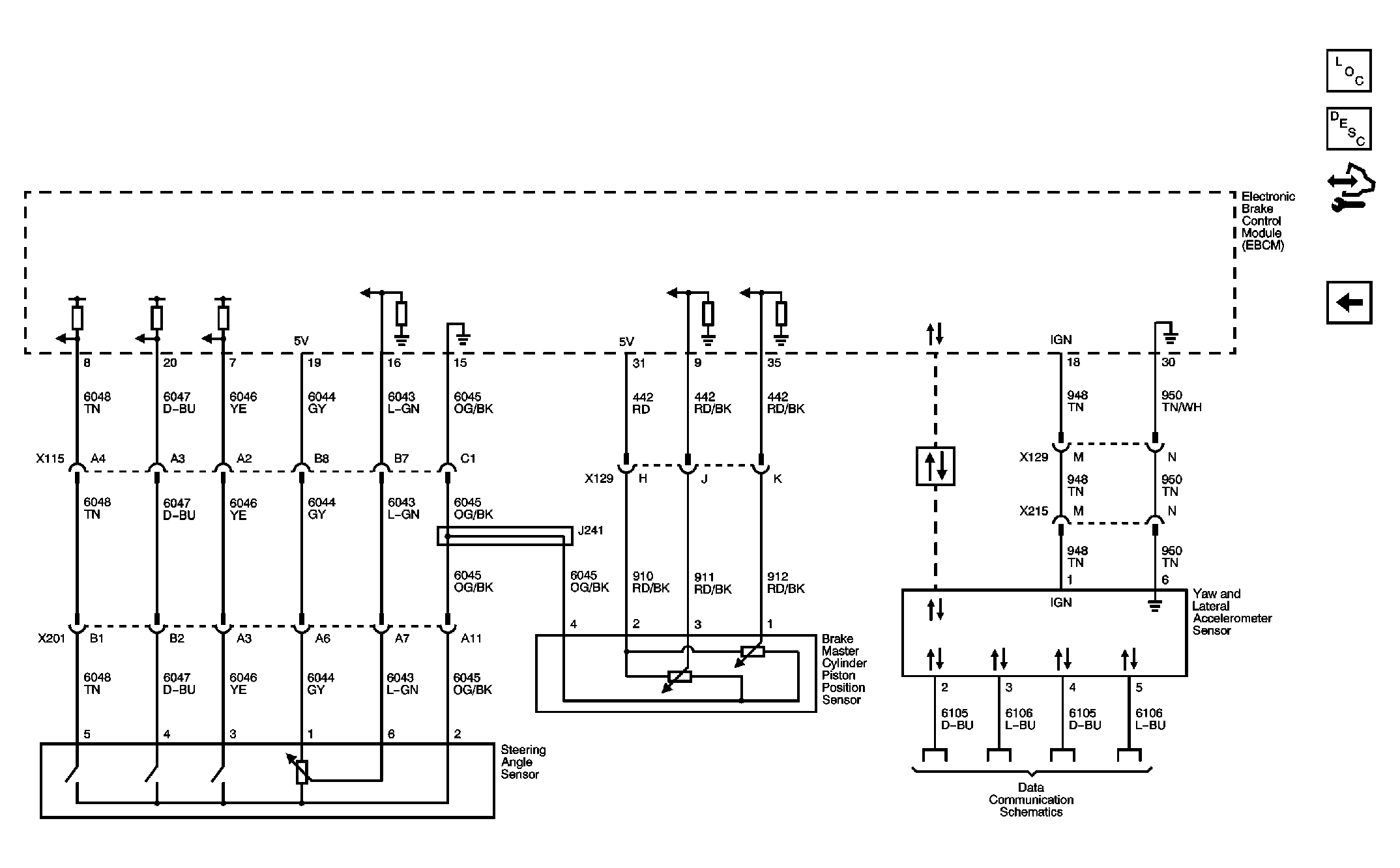

Fig 3: Vehicle Stability
Courtesy of GENERAL MOTORS CORP.
