Exhaust Gas Recirculation (EGR) System Operation

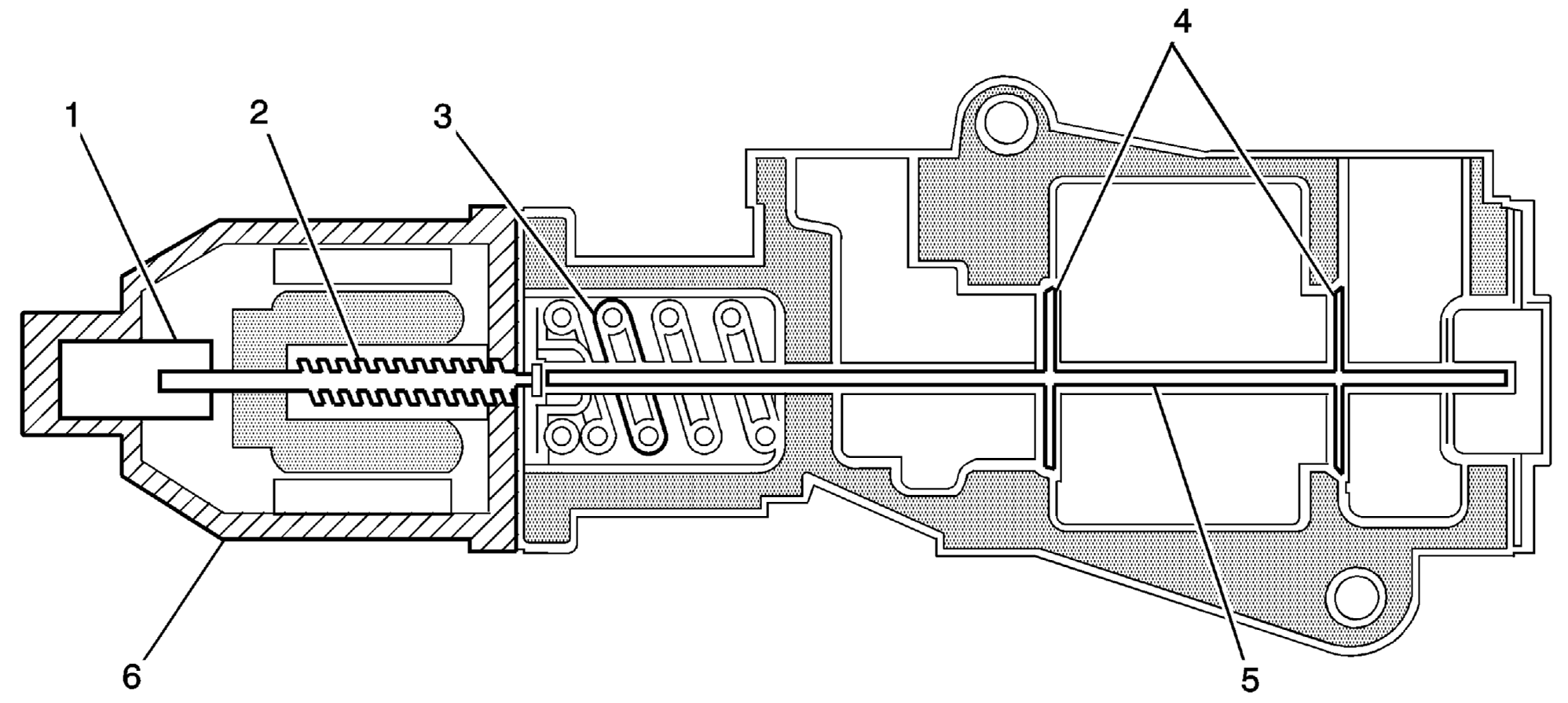

| Callout | Component Name |
|---|---|
| 1 | EGR Valve Position Sensor |
| 2 | EGR Valve Worm Gear |
| 3 | EGR Valve Return Spring |
| 4 | EGR Valve Head |
| 5 | EGR Valve Stem |
| 6 | EGR Valve Motor |
The exhaust gas recirculation (EGR) valve is controlled by the engine control module (ECM) through the EGR motor high control and EGR motor low control circuits. The ECM supplies voltage that is near ignition voltage to the high and low control circuits at all times. This voltage is used by the ECM as a reference voltage during non EGR operation in order to detect circuit failures. The ECM will pulse width modulate (PWM) the low control circuit to ground and an increase in amperage on the high control circuit can be observed with a DMM when the EGR valve is commanded open. A lower pulse width will increase the open position of the valve. In order to close the EGR valve, the ECM will PWM the high control circuit to ground.
When the ignition is turned ON, the ECM will drive the EGR motor worm gear out with just enough force to touch the EGR valve stem. The ECM will do this 3 times in quick succession. This action determines the minimum closed position of the valve and only happens once per ignition cycle. If the valve is prevented from closing all of the way after the minimum closed position is learned, the scan tool EGR Position parameter will not reflect this position until the next ignition cycle. The EGR motor worm gear is not connected to the EGR valve stem and can only push the valve open. The valve is returned to the closed position by a return spring.
The ECM uses the EGR position sensor to determine the position of the EGR valve. The ECM sends a reference voltage through the 5-volt reference circuit to the EGR position sensor. The ECM provides a voltage return path for the sensor through the low reference circuit. A variable voltage signal, based on the EGR valve position, is sent from the sensor to the ECM through the EGR position sensor signal circuit.
