Fuel Pump
WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

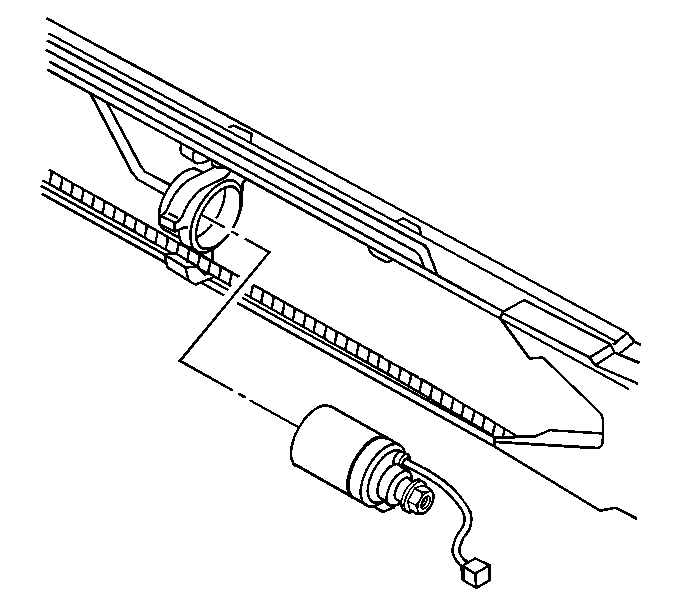

On vehicles equipped with dual fuel tanks, an electric fuel pump is located on the left frame rail. This fuel pump is powered by the fuel pump relay that is controlled by the engine control module (ECM). Fuel is transferred from the auxiliary fuel tank to the primary fuel tank in order to ensure all of the usable fuel volume is available to the fuel injection pump.
