Fuel Sender Assembly

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

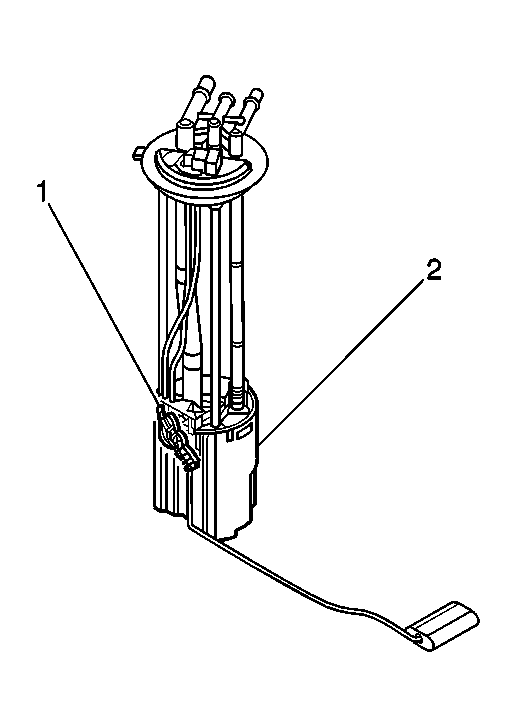

Fig 1: Fuel Level Sensor & Fuel Strainer (Single Tank)

Courtesy of GENERAL MOTORS CORP.

The fuel sender consists of the following major components:

The fuel level sensor (1)
The fuel strainer (2)

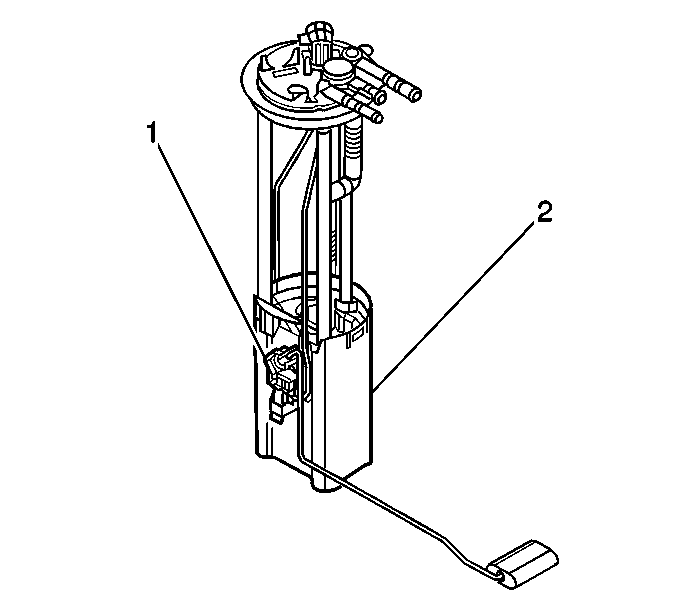

Fig 2: Fuel Level Sensor & Fuel Strainer (Duel Tanks)

Courtesy of GENERAL MOTORS CORP.

The auxiliary fuel sender on vehicles equipped with dual fuel tanks consists of the following major components:

The fuel level sensor (1)
The fuel strainer (2)
