Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

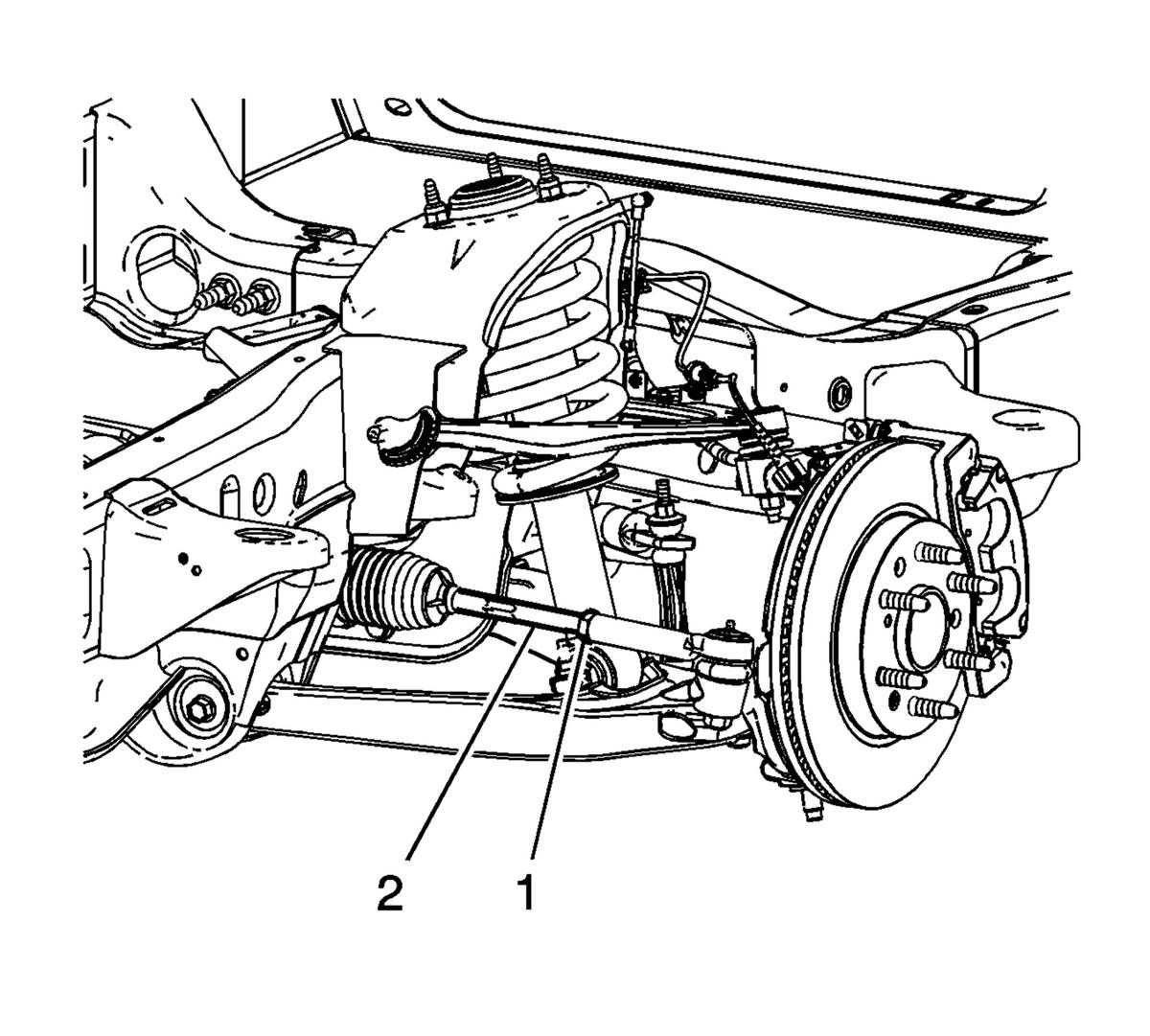

Fig 1: View Of Inner Tie Rod & Jam Nut

Courtesy of GENERAL MOTORS CORP.

Loosen the jam nut on the inner tie rod (1).
Rotate the inner tie rod (2) to the required toe specification setting. Refer to Wheel Alignment Specifications .

CAUTION: Refer to Fastener Caution .

Install the jam nut (1) on the tie rod and tighten to 75 N.m (55 lb ft).
Check the toe setting after tightening.
Re-adjust the toe setting if necessary.
