Mobile Telephone Microphone Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

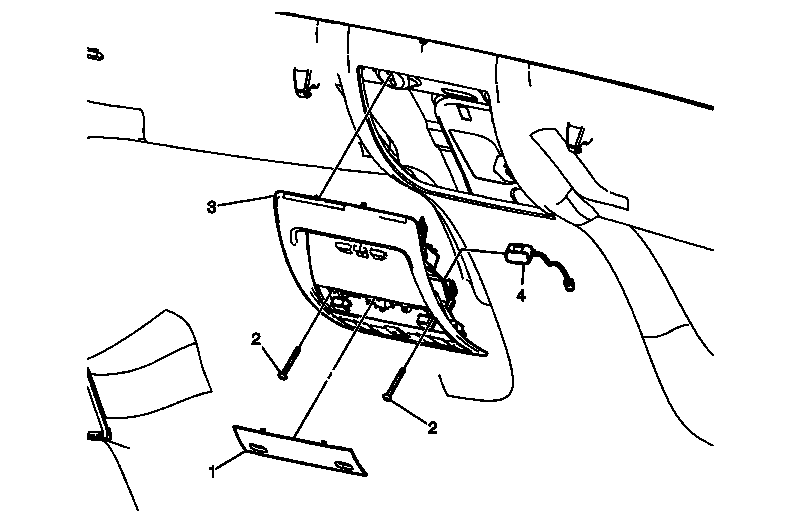

Fig 1: Mobile Telephone Microphone

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Overhead Console Lens
2	Roof Console Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
3	Roof Console Assembly TIP: Disconnect electrical connectors.
4	Mobile Telephone Microphone Assembly
