Radio Front Side Door Speaker Replacement
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
Radio Front Side Door Speaker Replacement

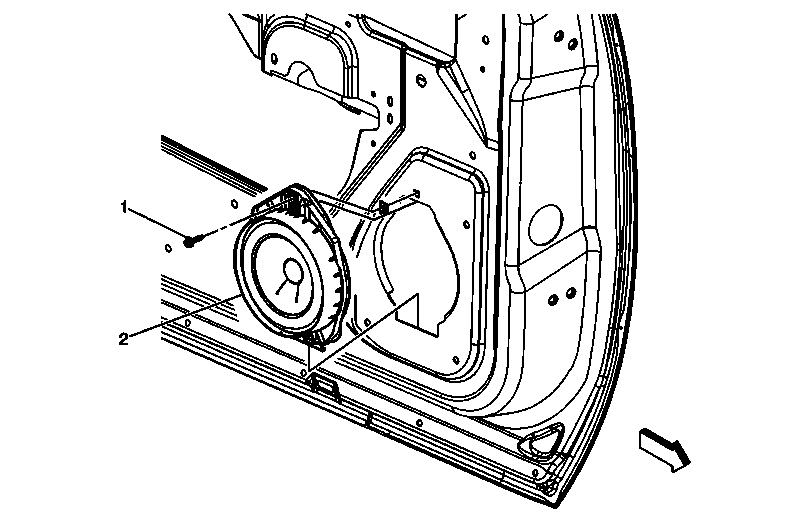

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front door inner trim panel. Refer to Front Side Door Trim Panel Replacement . |
|
| 1 | Front Door Speaker Screw
CAUTION:
Refer to Fastener Caution . Tighten 3 N.m (25 lb in) TIP: Disconnect the electrical connectors. |
| 2 | Front Door Speaker |
