Rear Pillar Speaker Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

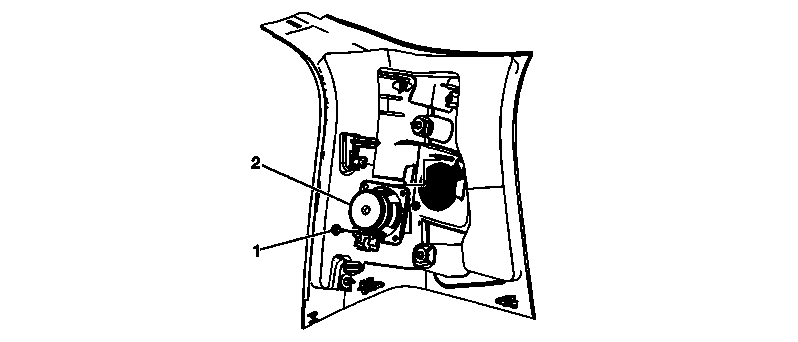

Fig 1: Rear Pillar Speaker

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the rear corner garnish molding. Refer to Body Rear Corner Garnish Molding Replacement - Right Side , or Body Rear Corner Garnish Molding Replacement - Left Side (With E61) , Body Rear Corner Garnish Molding Replacement - Left Side (Without E61) .
1	Radio Rear Speaker Assembly Screw CAUTION: Refer to Fastener Caution . Tighten 3 N.m (25 lb in)
2	Radio Rear Speaker Assembly
