USB Receptacle Replacement (Cadillac)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

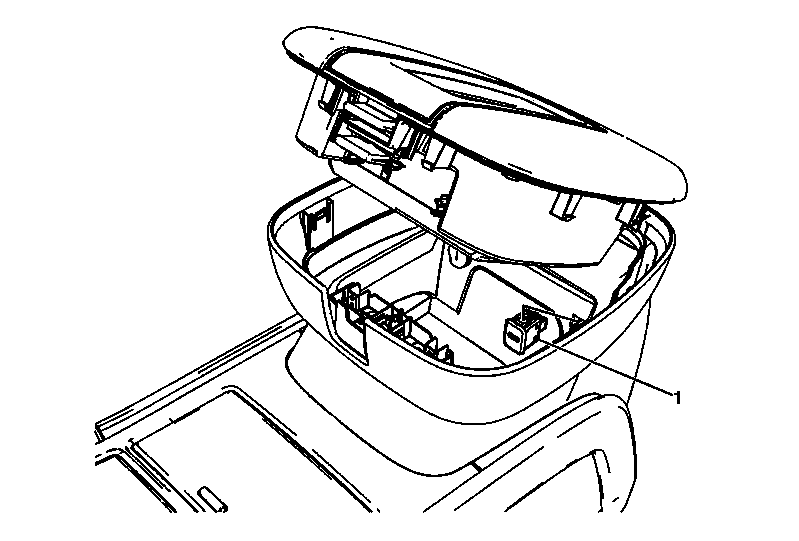

Fig 1: USB Electrical Receptacle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the rear seat audio control. Refer to Rear Seat Audio Control Replacement
1	USB Receptacle Open the glove box. Release snap fit lock and push forward. Disconnect the electrical connector.
