Endgate Latch Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

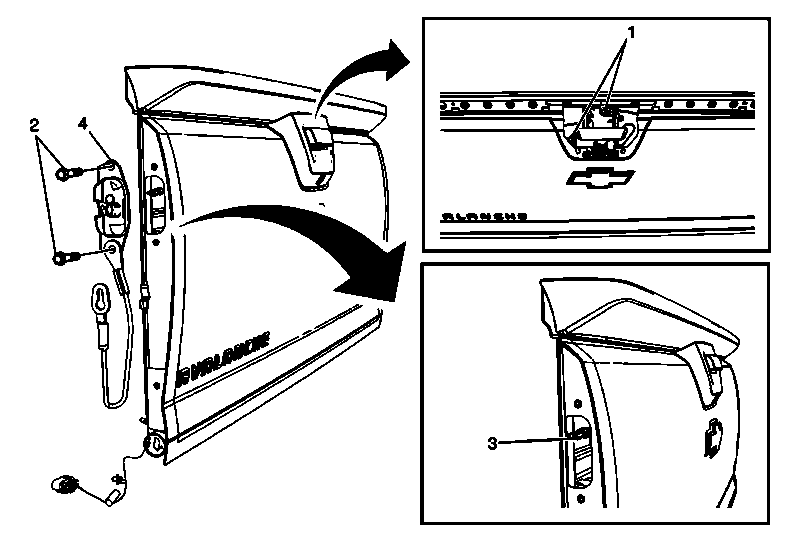

Fig 1: Endgate Latch Assembly And Bolt

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Endgate Latch Rod TIP: Disconnect the latch rod from the latch handle.
2	Endgate Latch Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 25 N.m (18 lb ft)
3	Endgate Latch Assembly Actuator Rod Clip
4	Endgate Latch Assembly
