Front Side Door Lock Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

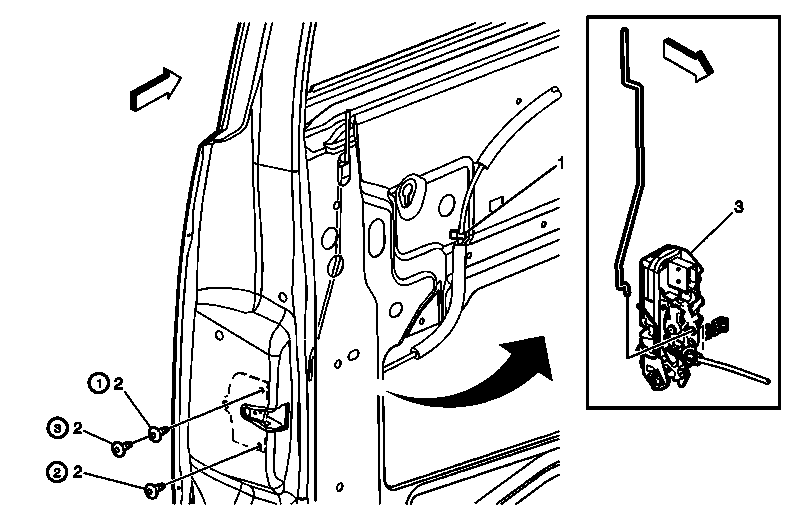

Fig 1: Front Side Door Lock

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Position the door window as needed for service. Remove the door trim panel. Refer to Front Side Door Trim Panel Replacement . Remove the water deflector. Refer to Front Side Door Water Deflector Replacement .
1	Inside Door Handle Cable Retainer Clip
2	Front Side Door Lock Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Release the door lock cylinder rod. Release the outside door handle rod from the door lock clip. The mandatory sequence is 3, 1, 2. Tighten 10 N.m (89 lb in)
3	Front Side Door Lock Disconnect the electrical plug. Transfer all parts to the new lock. It may be necessary to reprogrammed the door lock module after replacing the lock. Refer to Control Module References .
