Liftgate Actuator Switch Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

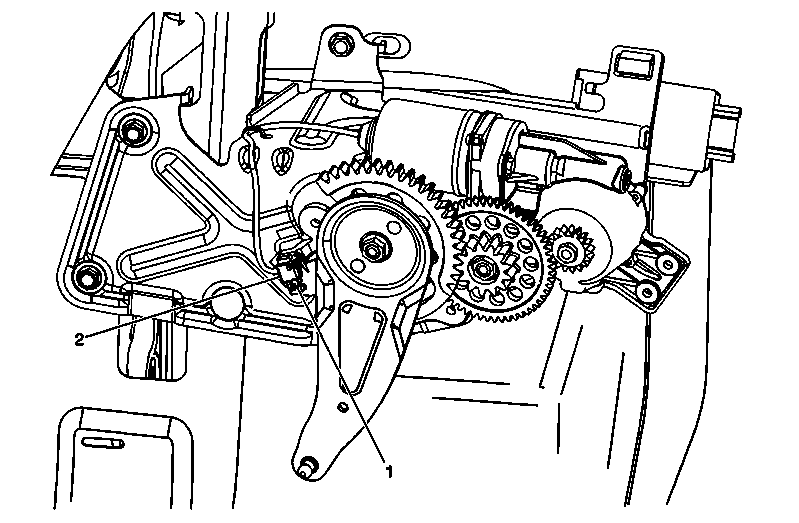

Fig 1: Liftgate Actuator Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the left rear quarter trim panel. Refer to Rear Quarter Trim Panel Replacement - Left Side (Standard Wheelbase w/E61) , Rear Quarter Trim Panel Replacement - Left Side (Extended Wheelbase w/E61) , Rear Quarter Trim Panel Replacement - Left Side (Extended Wheelbase w/o E61) , Rear Quarter Trim Panel Replacement - Left Side (Standard Wheelbase w/o E61) .
1	Power Liftgate Switch Screw CAUTION: Refer to Fastener Caution . Tighten 0.2 N.m (1.7 lb in)
2	Power Liftgate Switch Cut the tie strap, if equipped, and replace after the repair. Disconnect the electrical connector. Reprogram the power liftgate actuator switch replacement. Refer to Control Module References .
