Liftgate Close Actuator Motor Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

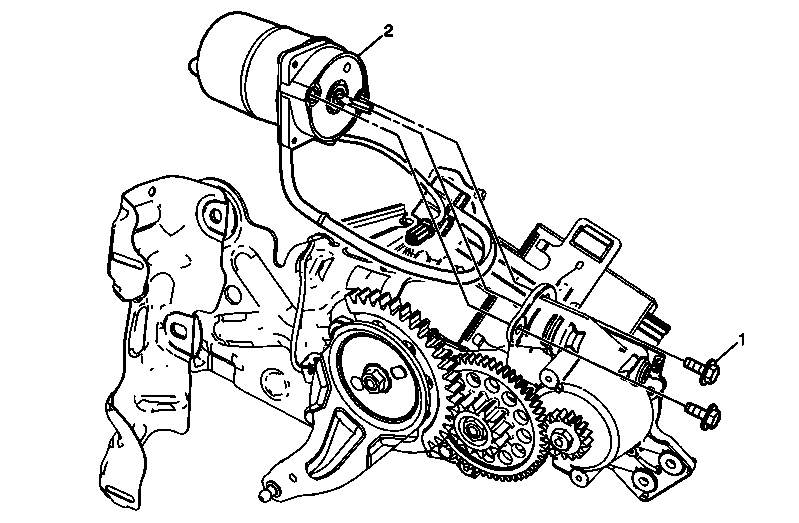

Fig 1: Liftgate Close Actuator Motor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the body side trim panel. Refer to Rear Quarter Trim Panel Replacement - Left Side (Standard Wheelbase w/E61) , Rear Quarter Trim Panel Replacement - Left Side (Extended Wheelbase w/E61) , Rear Quarter Trim Panel Replacement - Left Side (Extended Wheelbase w/o E61) , Rear Quarter Trim Panel Replacement - Left Side (Standard Wheelbase w/o E61) . Remove the liftgate actuator rod. Refer to Liftgate Actuator Rod Replacement (Except Avalanche and EXT Escalade) .
1	Power Liftgate Actuator Motor Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 8 N.m (71 lb in)
2	Power Liftgate Actuator Motor Disconnect the electrical connector. Reprogram the power liftgate motor replacement. Refer to Control Module References .

Callout

Component Name

Preliminary Procedures

Remove the body side trim panel. Refer to Rear Quarter Trim Panel Replacement - Left Side (Standard Wheelbase w/E61) , Rear Quarter Trim Panel Replacement - Left Side (Extended Wheelbase w/E61) , Rear Quarter Trim Panel Replacement - Left Side (Extended Wheelbase w/o E61) , Rear Quarter Trim Panel Replacement - Left Side (Standard Wheelbase w/o E61) .
Remove the liftgate actuator rod. Refer to Liftgate Actuator Rod Replacement (Except Avalanche and EXT Escalade) .

Power Liftgate Actuator Motor Bolt (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
8 N.m (71 lb in)

Power Liftgate Actuator Motor

Disconnect the electrical connector.
Reprogram the power liftgate motor replacement. Refer to Control Module References .
