Liftgate Latch Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

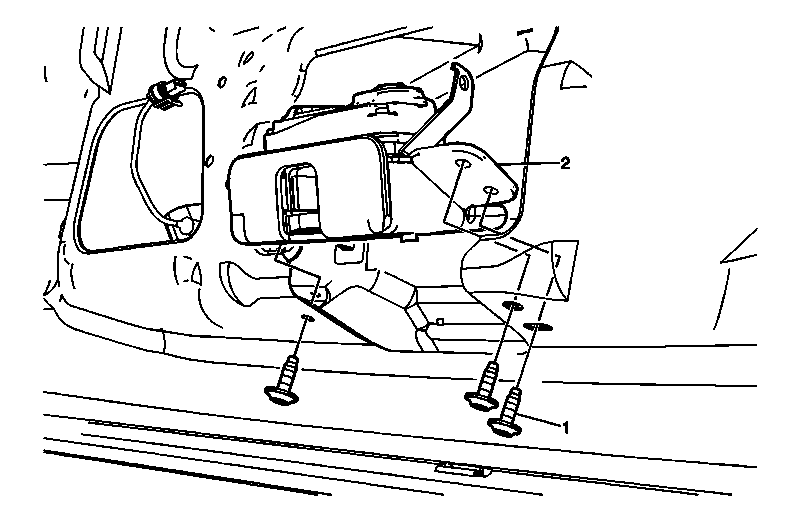

Fig 1: Liftgate Handle Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the liftgate trim panel. Refer to Liftgate Trim Panel Replacement .
1	Liftgate Latch Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Liftgate Handle Assembly Procedure Disconnect the electrical connector. Remove the plastic tether before installing the liftgate latch. Calibrate the liftgate. Refer to Liftgate Calibration (Except Avalanche and EXT Escalade) . Adjust the liftgate if needed. Refer to Liftgate Adjustment .

Callout

Component Name

Preliminary Procedure
Remove the liftgate trim panel. Refer to Liftgate Trim Panel Replacement .

Liftgate Latch Screw (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Liftgate Handle Assembly

Procedure

Disconnect the electrical connector.
Remove the plastic tether before installing the liftgate latch.
Calibrate the liftgate. Refer to Liftgate Calibration (Except Avalanche and EXT Escalade) .
Adjust the liftgate if needed. Refer to Liftgate Adjustment .
