Exhaust Gas Recirculation (EGR) Temperature Sensor 2 (Diesel)

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

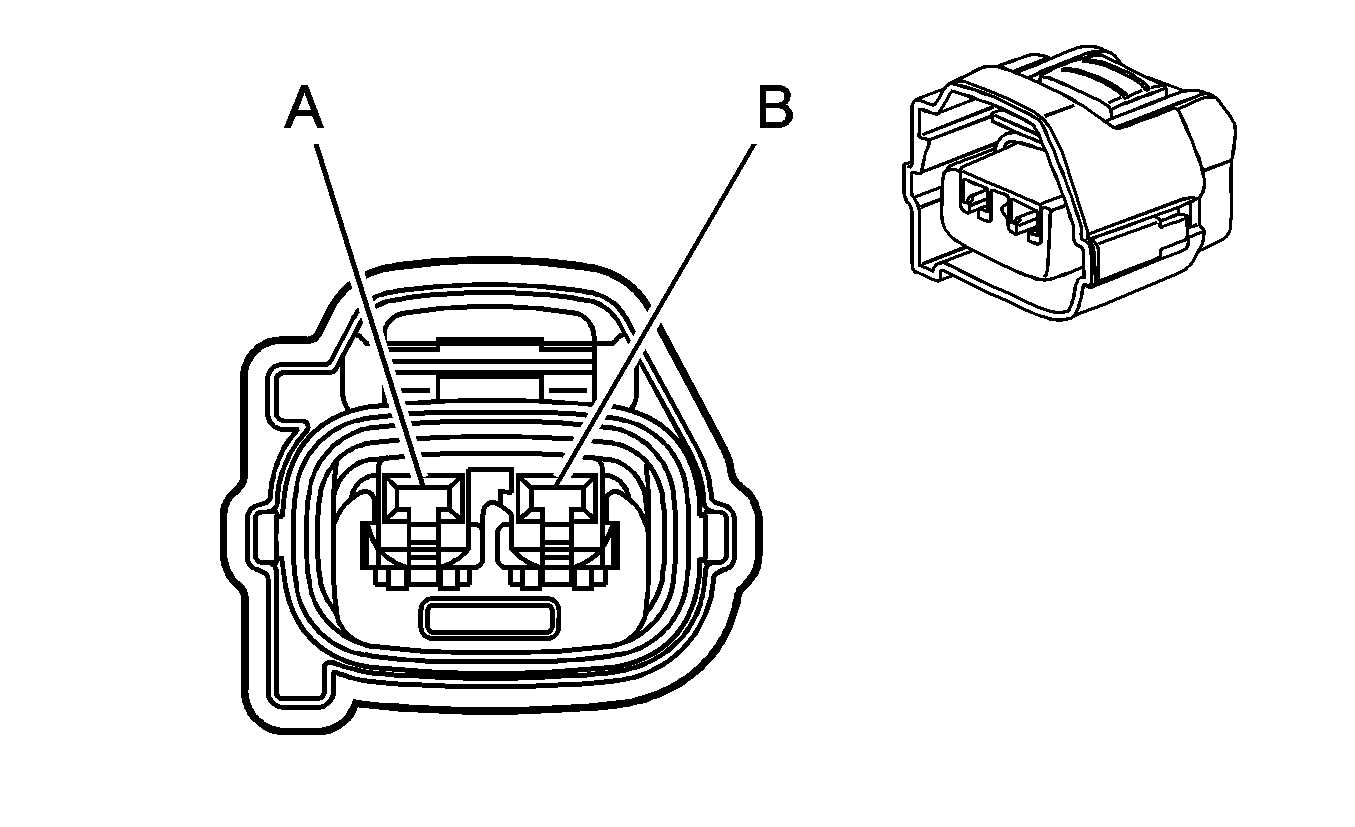

Fig 1: Exhaust Gas Recirculation (EGR) Temperature Sensor 2 (Diesel) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
A	0.5 D-BU	IC147	Exhaust Gas Recirculation Temperature Sensor 2 Supply Voltage
B	0.5 WH	IC148	Low Reference

Connector Part Information

OEM: 7283-7020-10
Service: Service by Harness - See Part Catalog
Description: 2-Way F 2.3 Series Sealed (D-GY)

Terminal Part Information

Terminal/Tray: 7116-4025/11
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 15313892/J-35616-18 (BK)
