Crankshaft Position (CKP) Sensor Connector End View

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

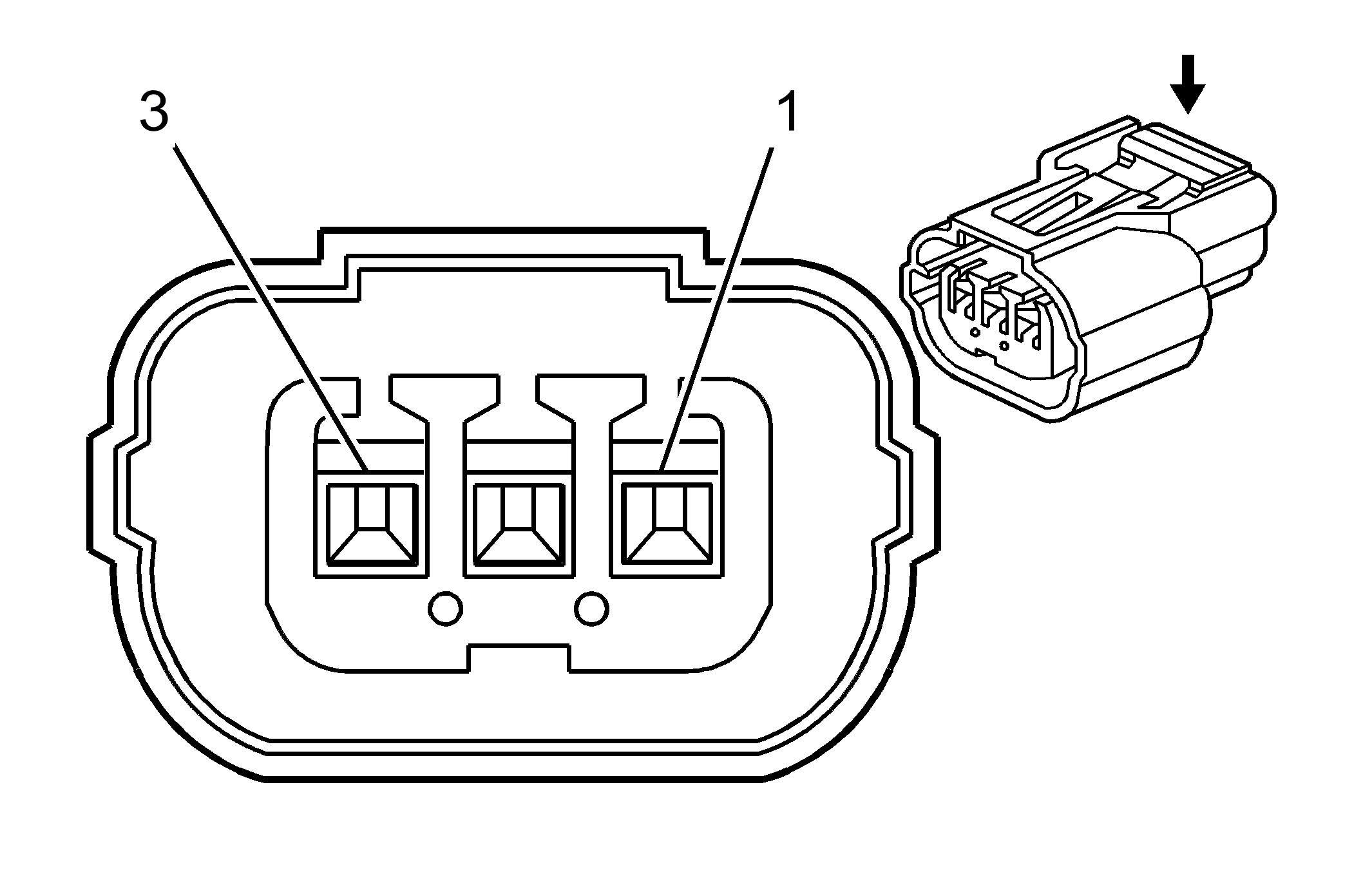

Fig 1: Crankshaft Position (CKP) Sensor Connector End View
GM1290302Courtesy of GENERAL MOTORS CORP.
Crankshaft Position (CKP) Sensor Connector Parts Information

Connector Part Information
  • OEM: 13544000
  • Service: See Catalog
  • Description: 3-Way F Unsealed (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
Crankshaft Position (CKP) Sensor Connector Terminal Identification

Pin Wire Color Circuit No. Function
1 0.35 PU/WH 6270 5-Volt Reference
2 0.35 GY/BK 6272 Low Reference
3 0.35 WH/BK 6271 CKP Sensor Signal
