Engine Coolant Temperature (ECT) Sensor 2 Connector End View

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

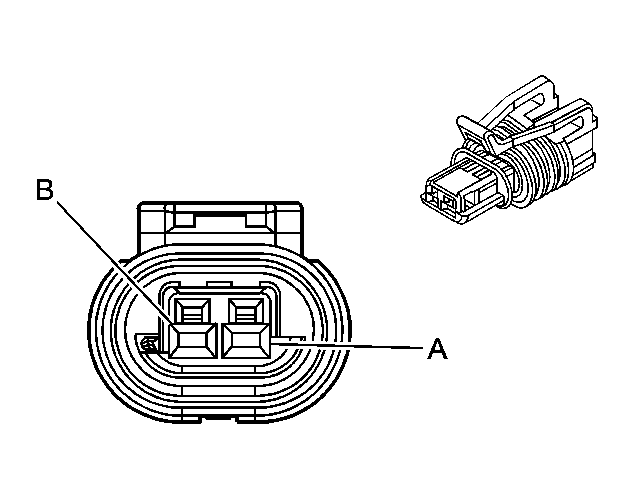

Fig 1: Engine Coolant Temperature (ECT) Sensor 2 Connector End View
GM1548270Courtesy of GENERAL MOTORS CORP.
Engine Coolant Temperature (ECT) Sensor 2 Connector Parts Information

Connector Part Information
  • OEM: 15487232
  • Service: 88987993
  • Description: 2-Way F GT 150 Series Sealed (GY)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
Engine Coolant Temperature (ECT) Sensor 2 Connector Terminal Identification

Pin Wire Color Circuit No. Function
A 0.5 L-BU/BK IC51 Low Reference
B 0.5 L-GN IC50 ECT Sensor Signal
