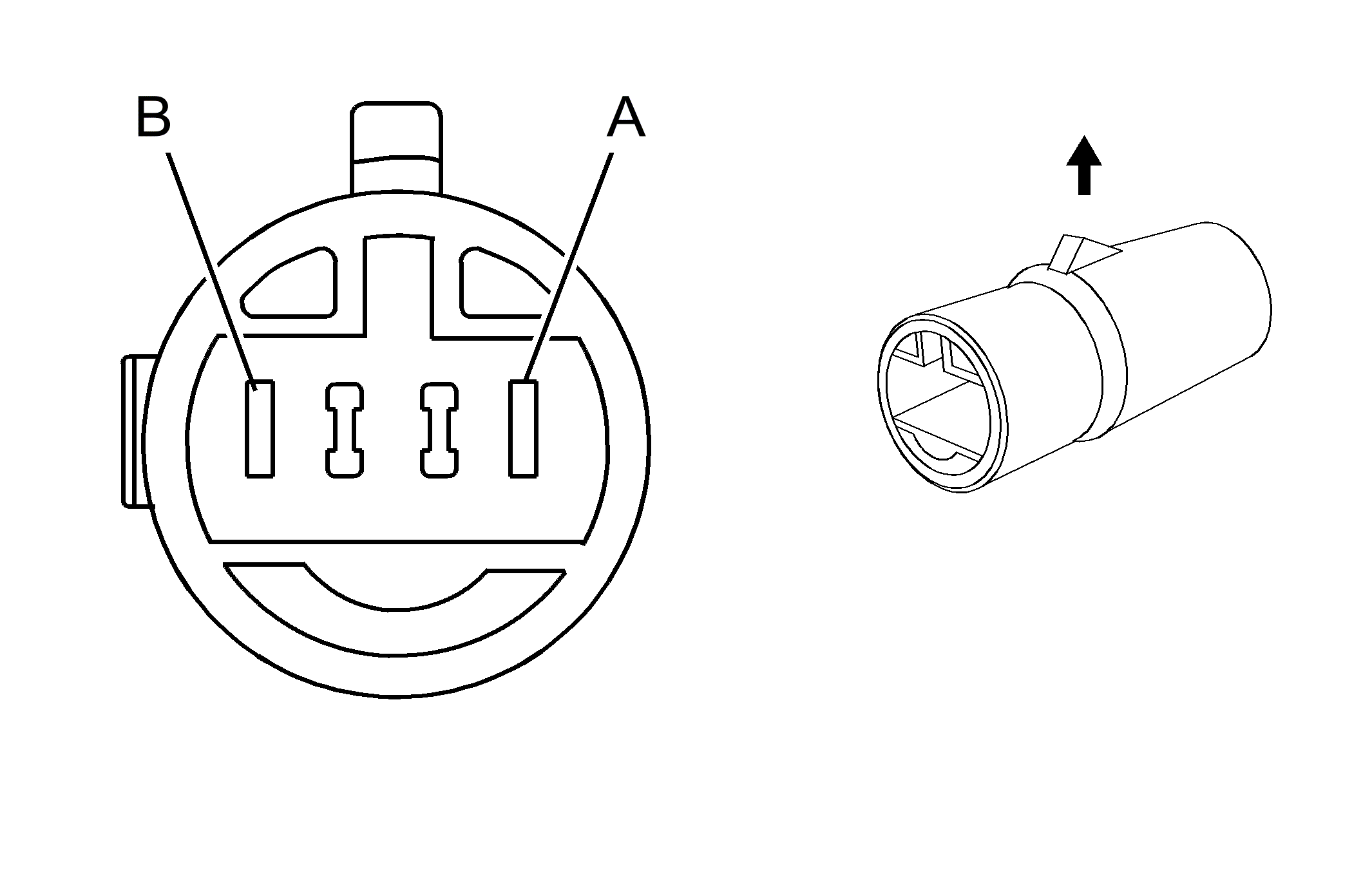

Fuel Heater Connector End View
WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
Fuel Heater Connector Parts Information
Connector Part Information
|
Terminal Part Information
|
Fuel Heater Connector Terminal Identification
| Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
| A | 0.85 PK | IC95 | Ignition 1 Voltage |
| B | 0.85 BK | IC96 | Ground |
