Intake Air Heater (IAH) Module Connector End View X1

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

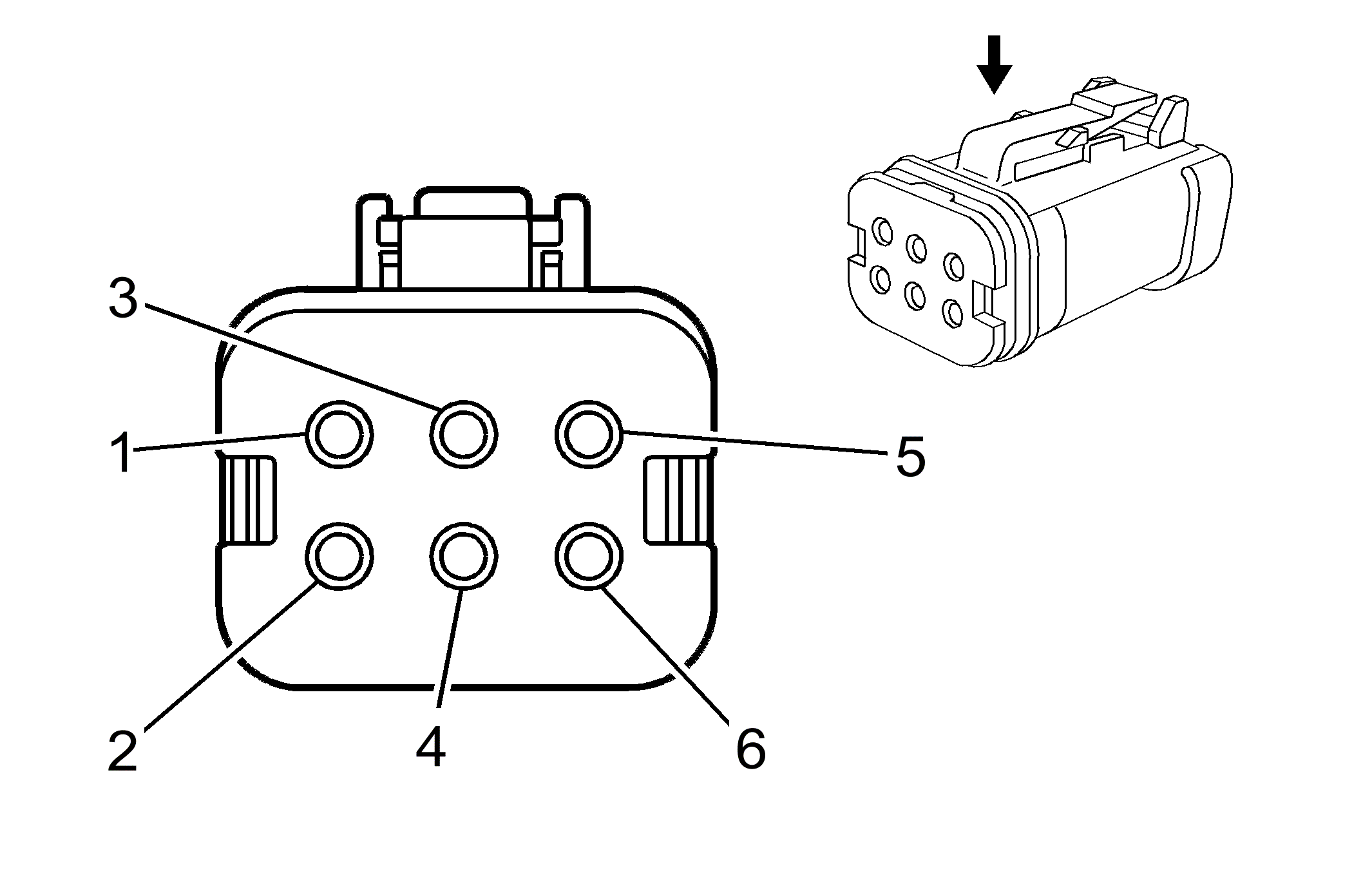

Fig 1: Intake Air Heater (IAH) Module X1 Connector End View

Courtesy of GENERAL MOTORS CORP.

Intake Air Heater (IAH) Module X1 Connector Parts Information

Connector Part Information

OEM: DT16-6S-KP01
Service: See Catalog
Description: 6-Way F Sealed (GN)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Intake Air Heater (IAH) Module X1 Connector Terminal Identification

Pin	Wire Color	Circuit No.	Function
1	0.75 BK	IC180	IAH Temperature Signal
2	1 OG	IC181	IAH Command 1
3	0.75 YE	IC182	IAH Command 2
4	0.75 PK	IC183	IAH Current Signal
5	0.75 TN	IC184	IAH Voltage Signal
6	0.75 RD	IC185	IAH Feedback Signal
